Description
DESCRIPTION:
Since 1965 FARMO RES has distinguished itself on the world market of thermoforming, producing automatic machines for the packaging of pharmaceutical products, ampoules, vials, syringes, but also packaging for cosmetics and food.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:

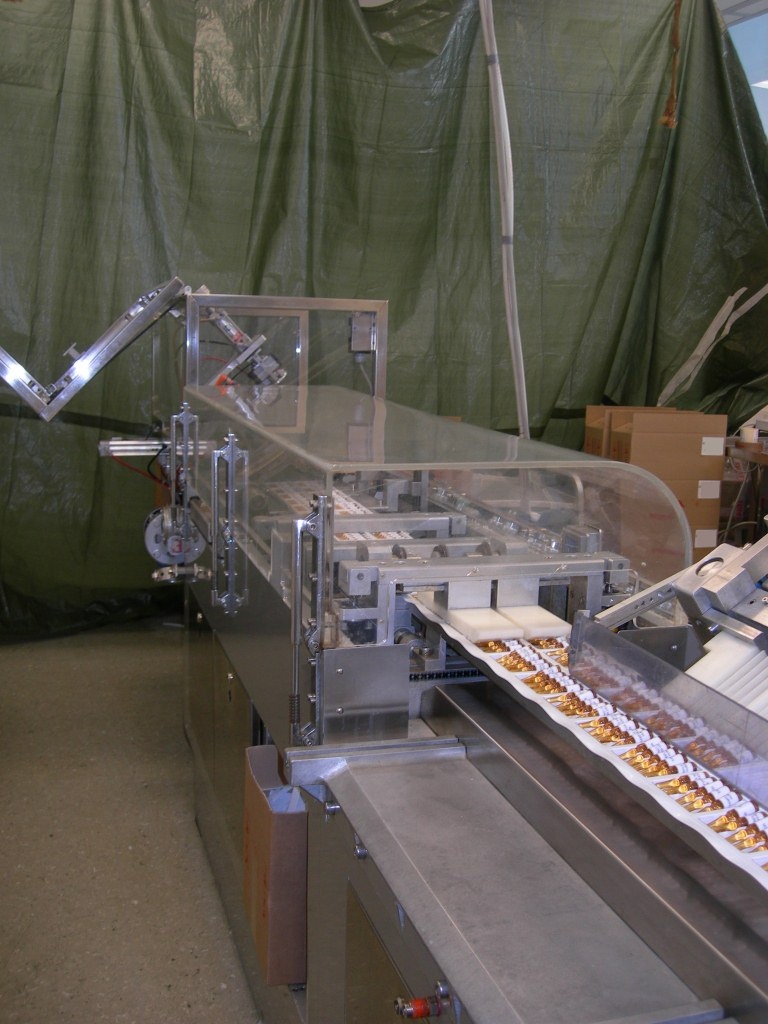

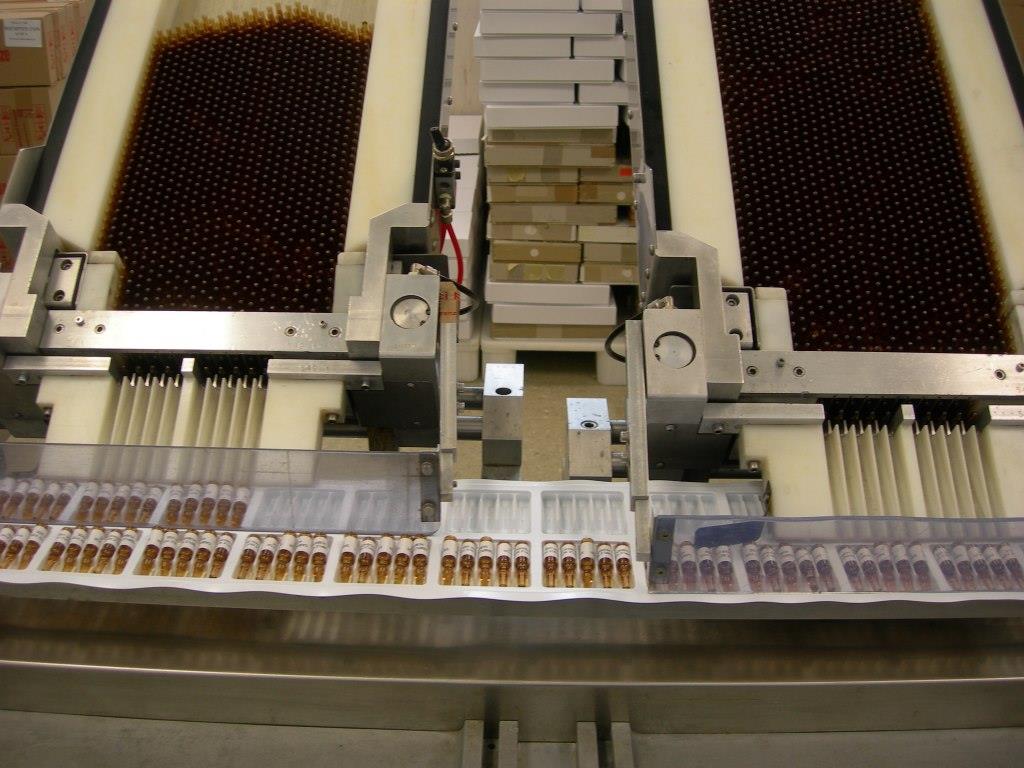

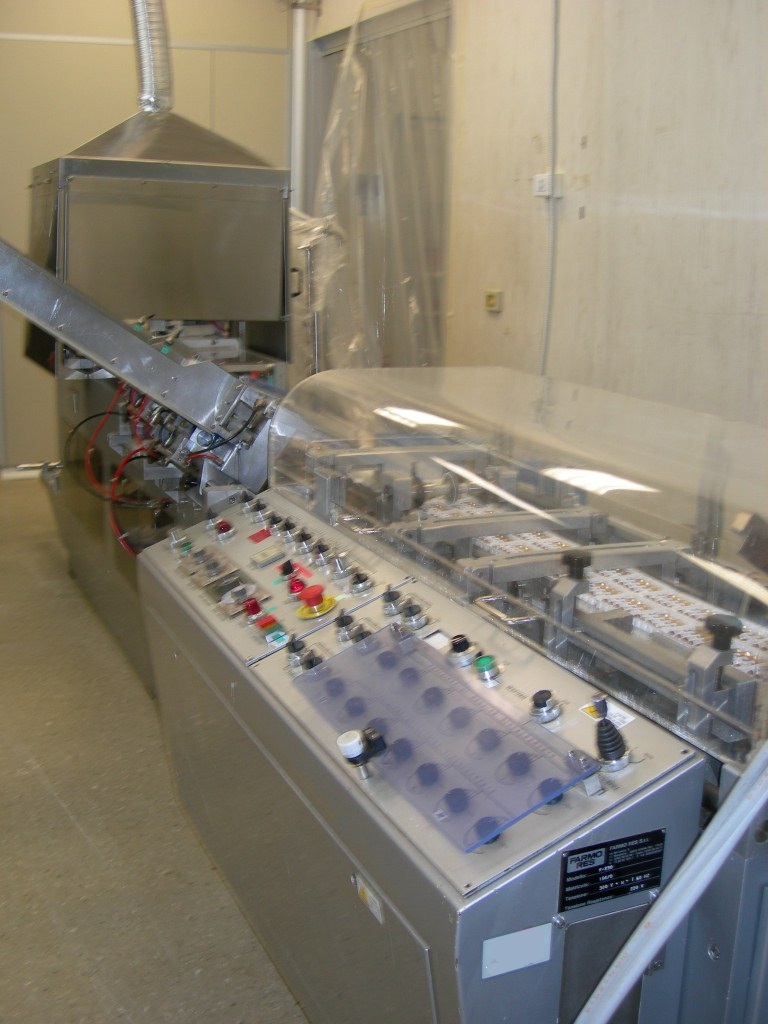

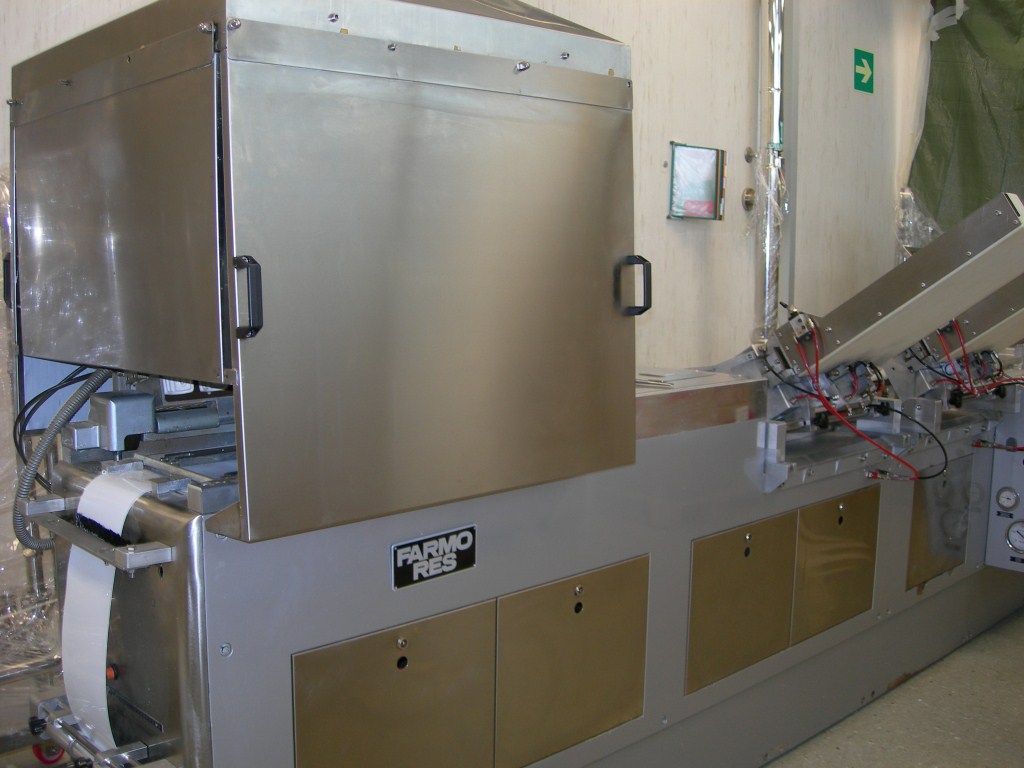

The K models are thermoforming machines with a balcony structure and pneumatic actuation, for plastic laminate packaging of syringes, vials and ampoules. The technical innovations: compact structure, automatic positioning of the welding stations, pre-cutting and cutting size change, loading coil operator side, optimization of the load area.
Year of construction: 1990
TECHNICAL DATA
Machine dimensions (LxPxH) mm 6200x950x1400
Weight kg 6500
Production capacity 20 cycles/min. max. 48000 ampoules/h
Max. forming area and max. forming depth mm 320 x 230 x 40
Blister formats ml 1, 2, 5, 10
Forming materials PP, PVC, PVC / PVDC, PVC / Aclar, 0,2 a 0,5 mm

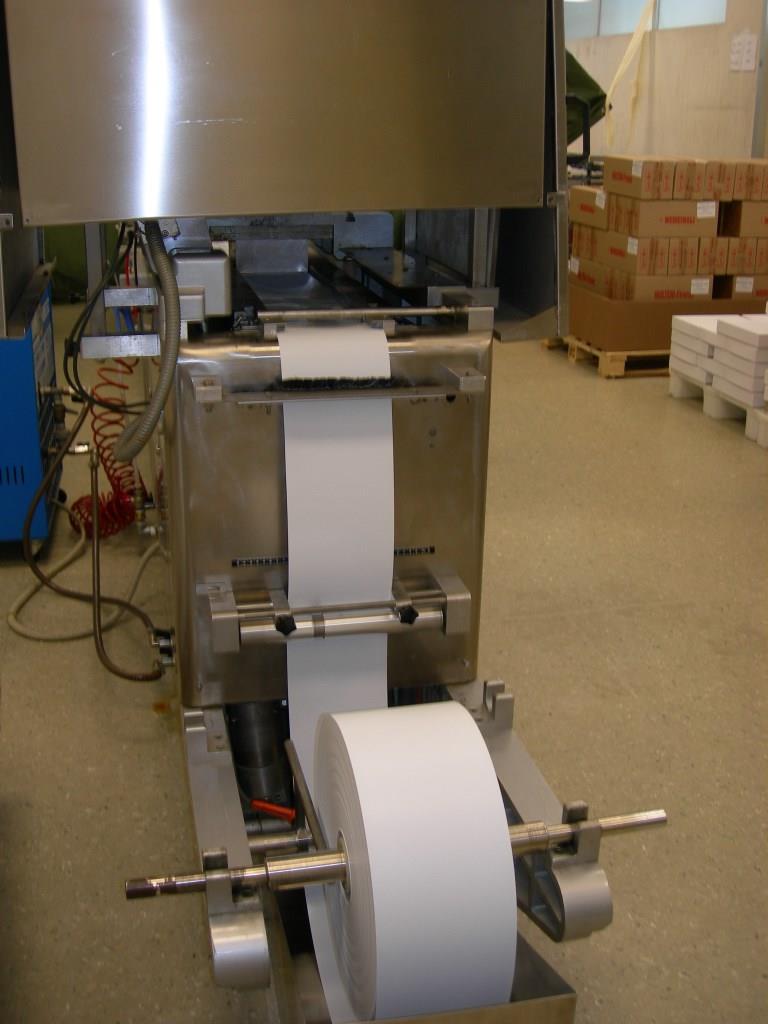

Cover foil PP, 0,02 e 0,5 mm
