Description
DESCRIPTION:

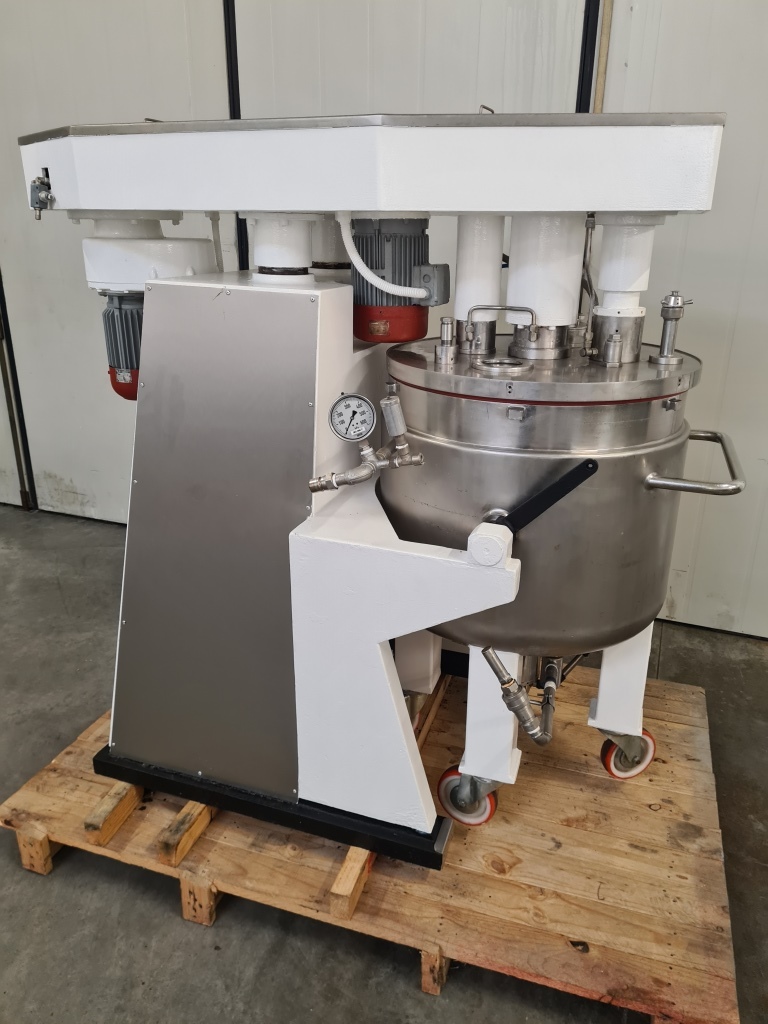

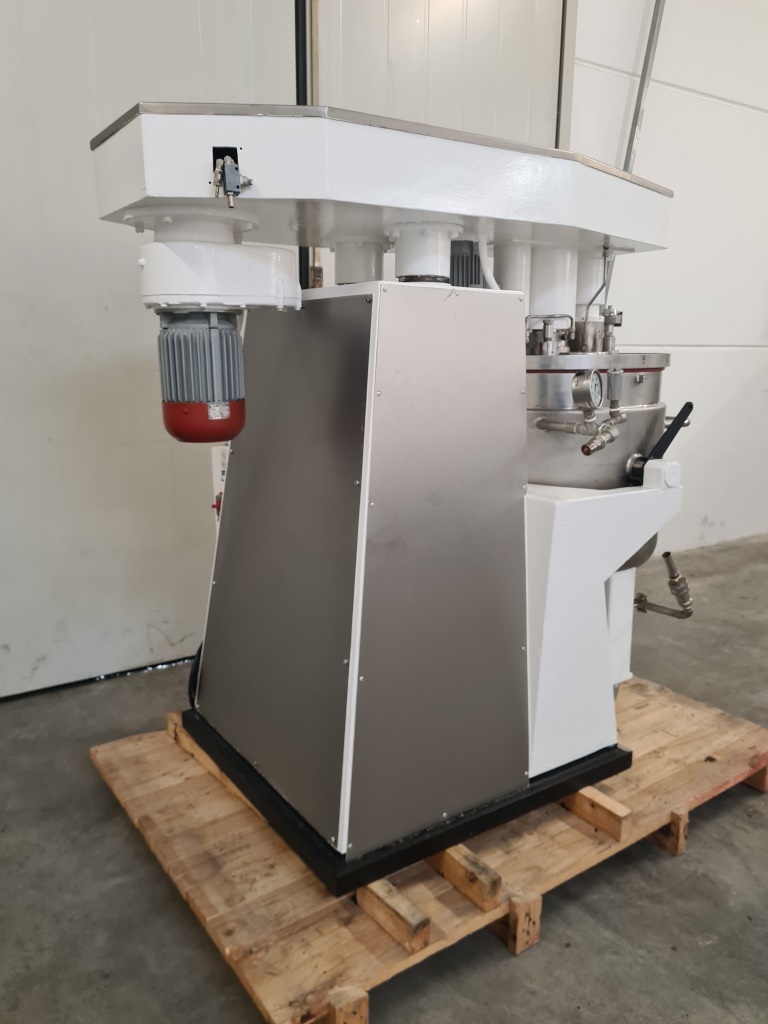

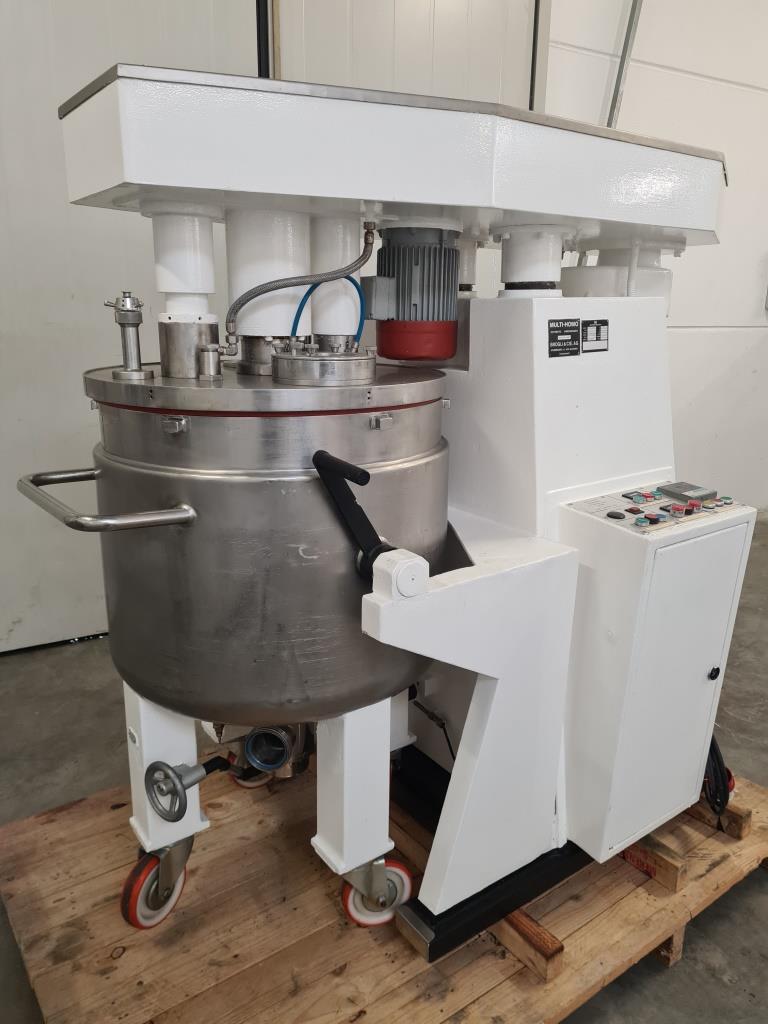

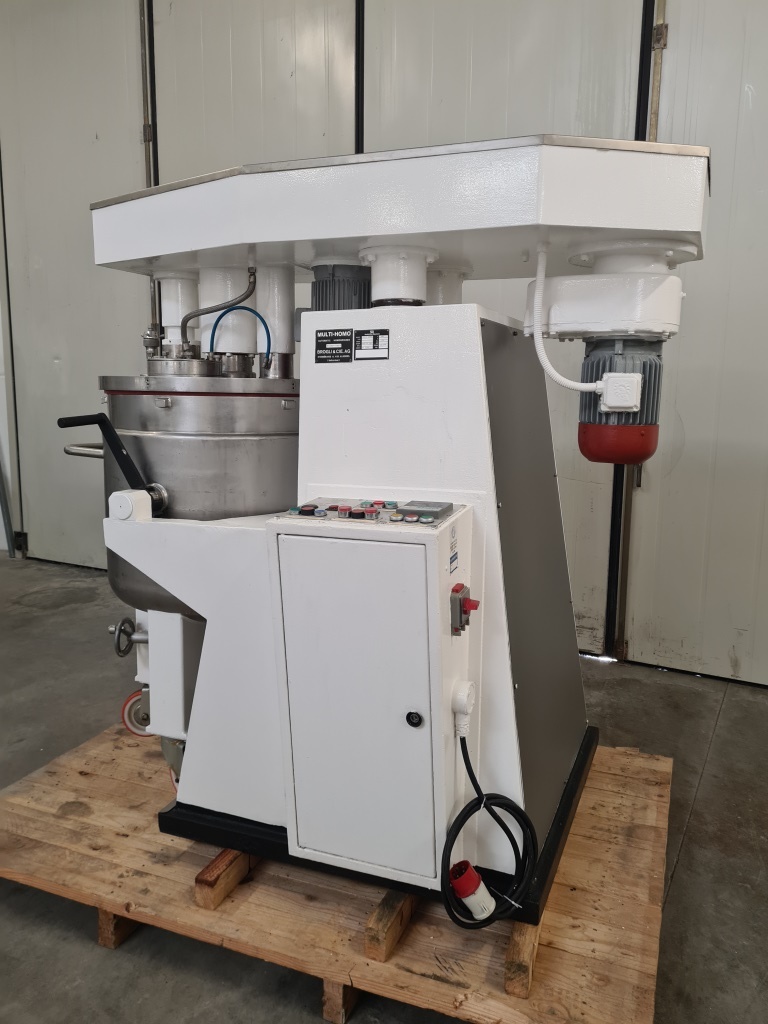

The Brogli plant is designed to produce homogeneous products for the chemical, pharmaceutical, cosmetic or food industry starting from raw powder and liquid products, using heat, pressure and mechanical agitation energy.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:

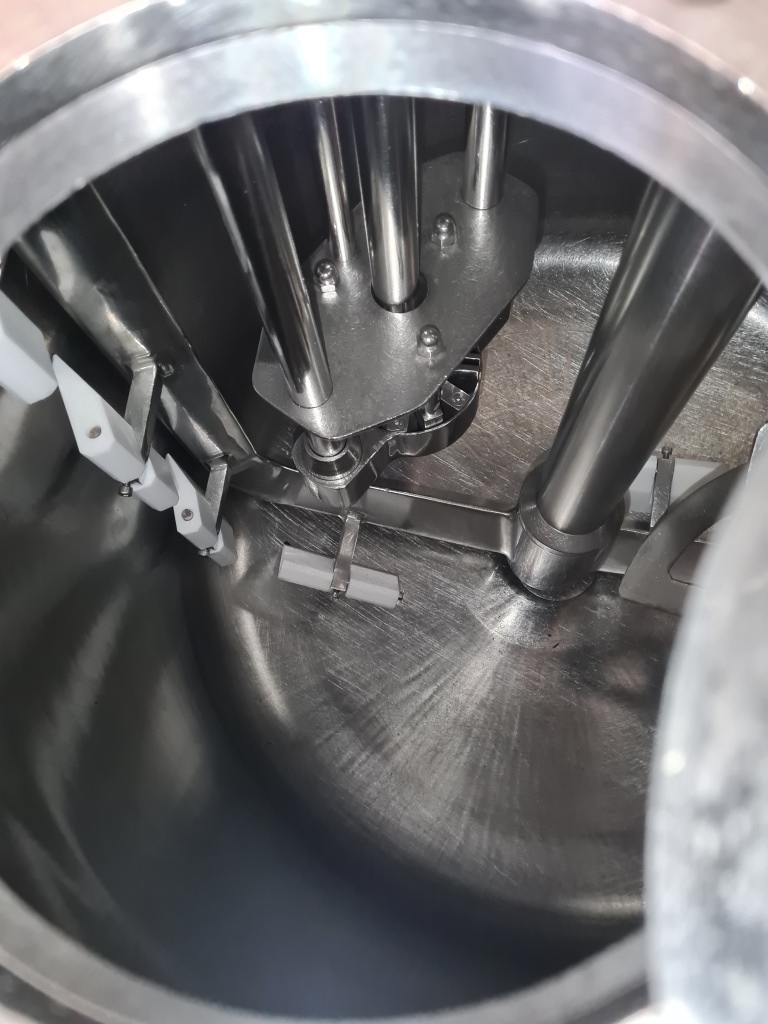

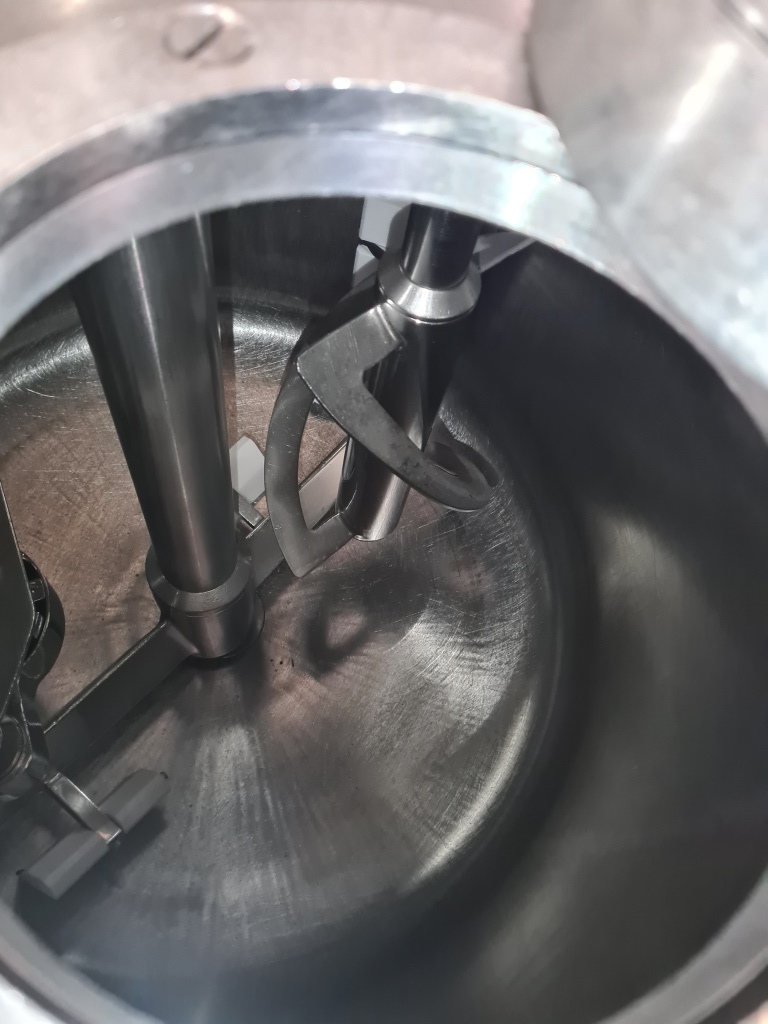

Intensive, three-dimensional mixing movement for your production process. Homogenization easy and efficient with short mixing times thanks to the combination of several mixing elements: an anchor stirrer equipped with strippers creates a strong tangential mainstream, a spiral stirrer counteracting the anchor stirrer creates a strong axial mainstream and intense vertical mixing action. Optimum heat transfer thanks to the anchor stirrer and strippers. Handling from a broad viscosity range thanks to the axial mainstream.
TECHNICAL DATA
Dimensions mm 1850 x 1200 x 1750
Weight Kg 1200
Voltage Volt 380

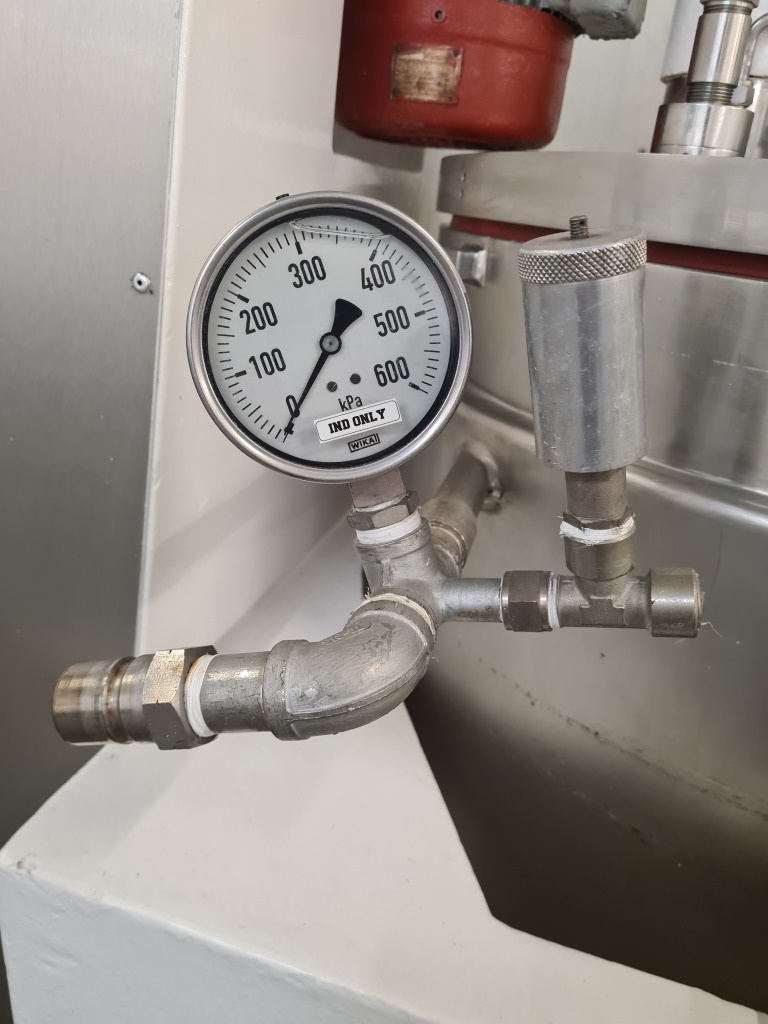

Steam kPa 100
Power Kw 6,9
Useful capacity: 200 LT
