Description
DESCRIPTION:

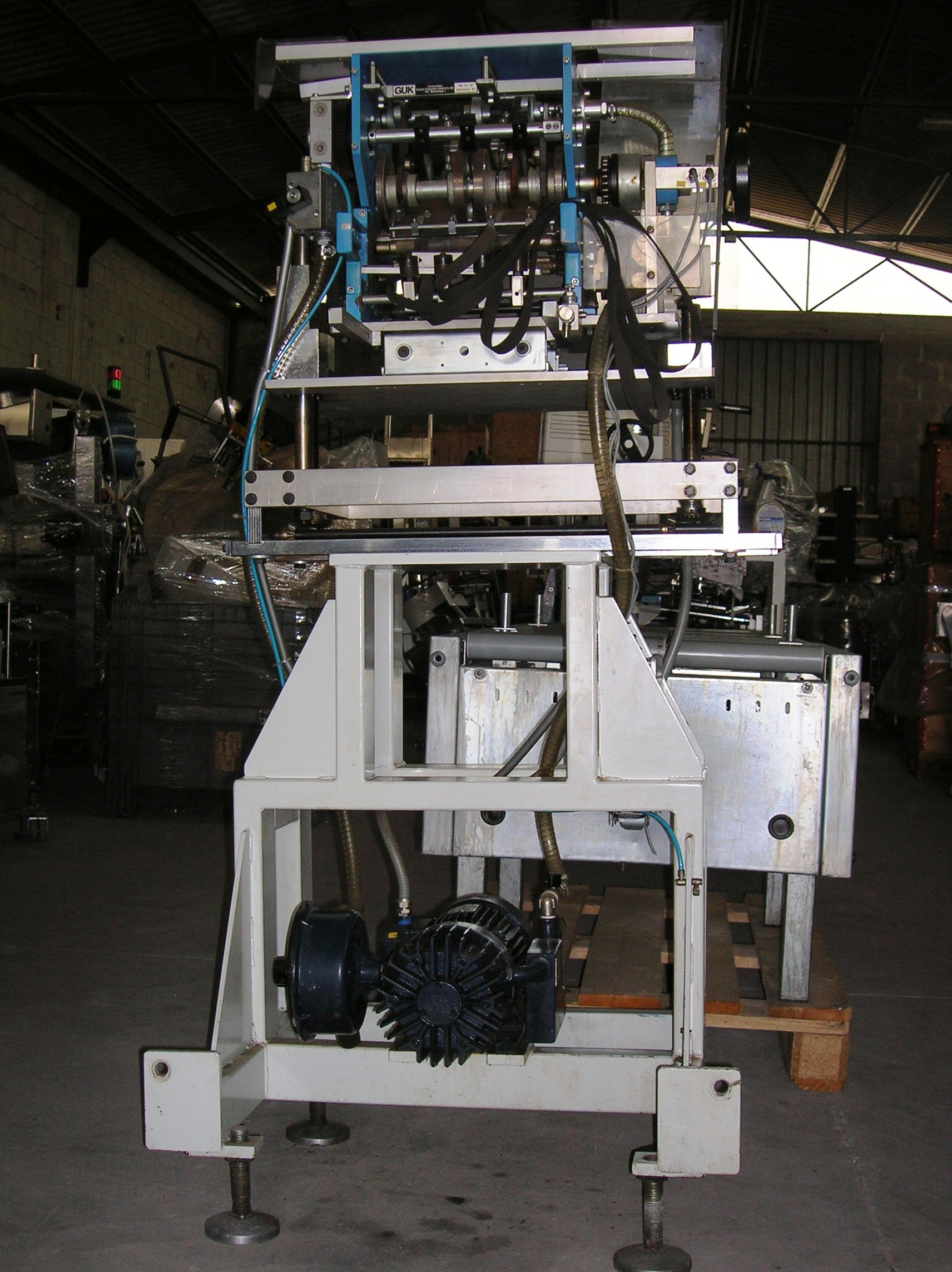

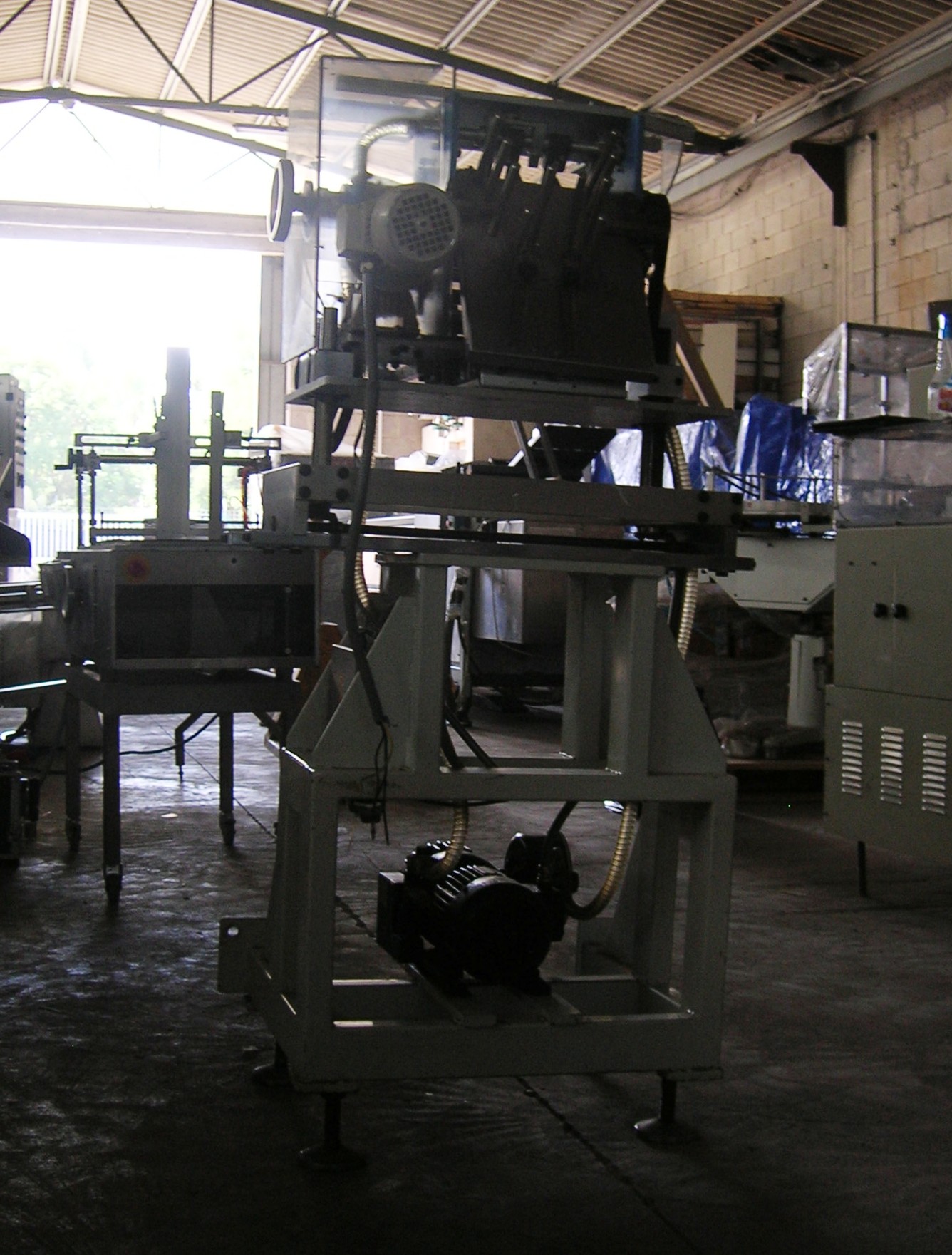

Small size leaflet/brochure folding machine for packaging lines. Compact, precise and reliable.
SECTORS OF USE:
Pharmaceutical, chemical, food, cosmetics, dietary, medical devices, packaging, graphics.
MAIN FEATURES:

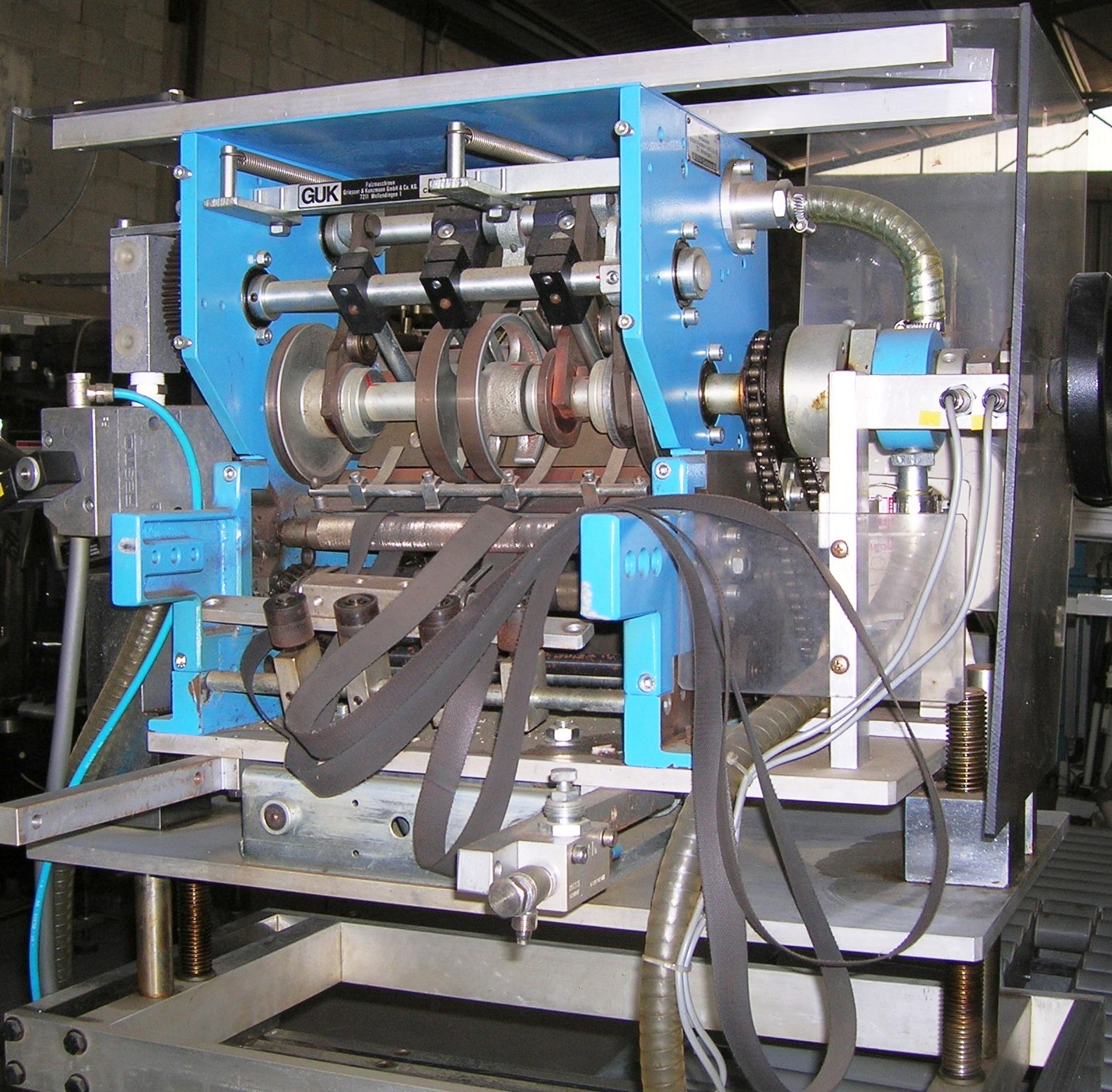

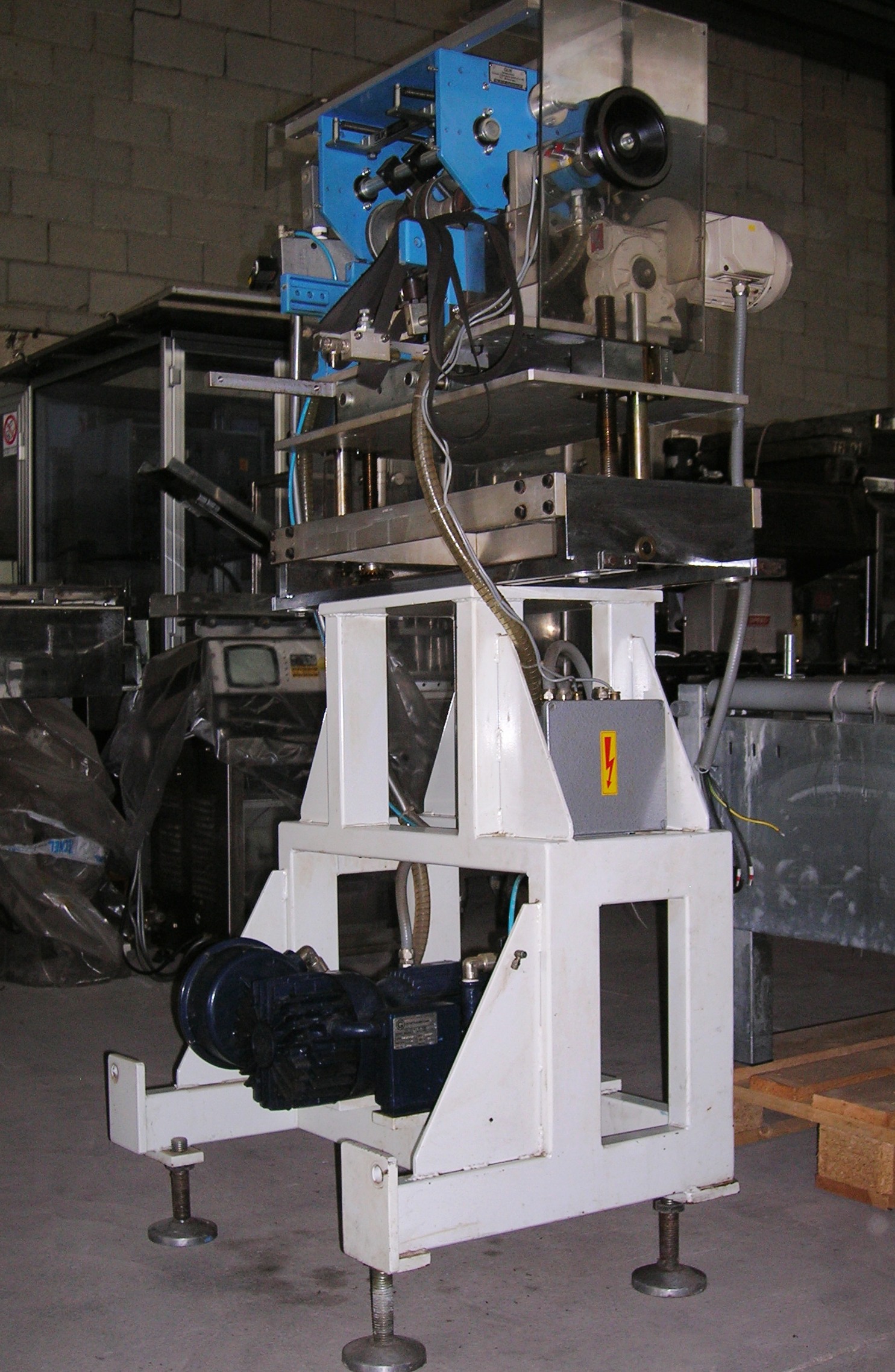

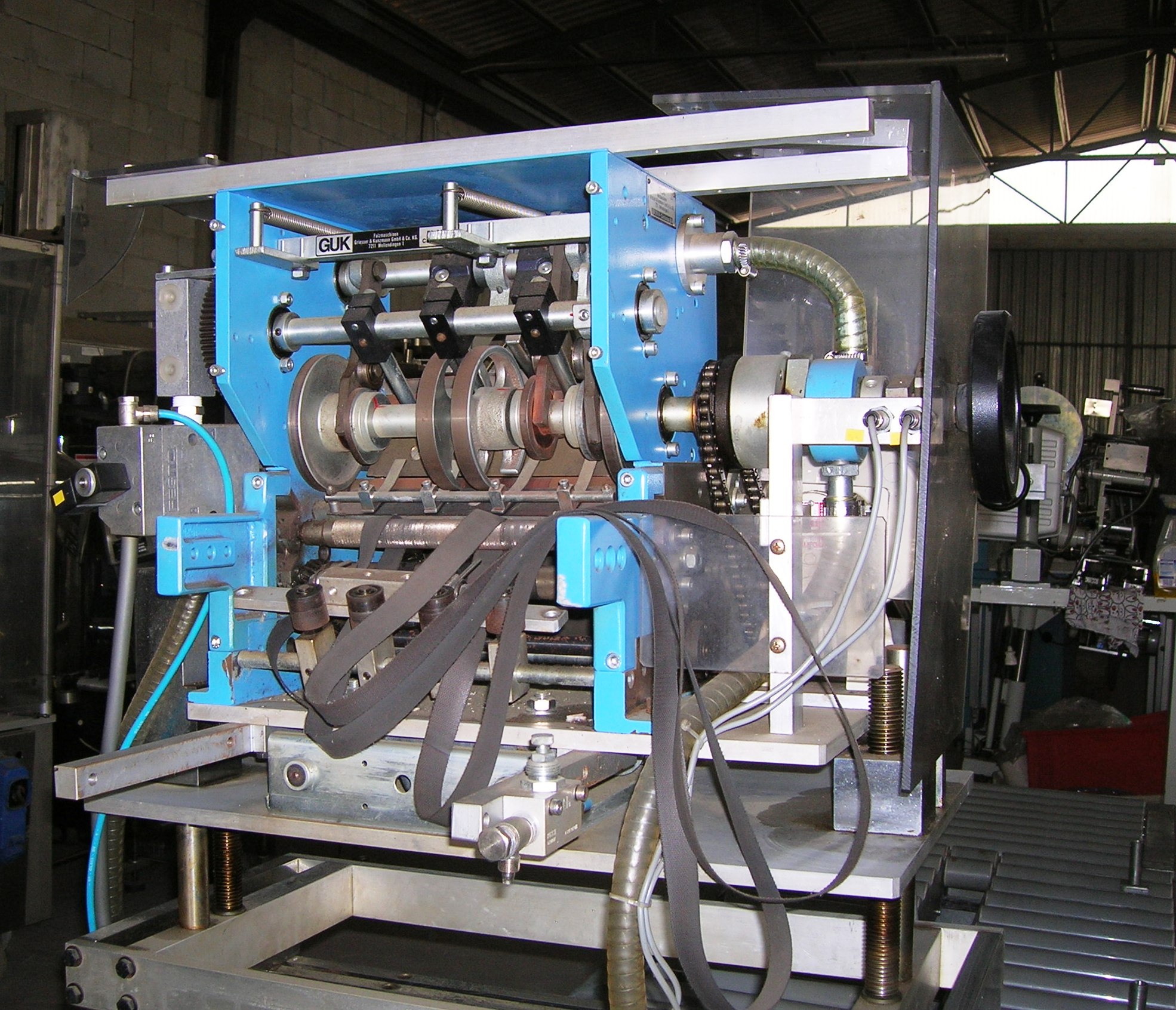

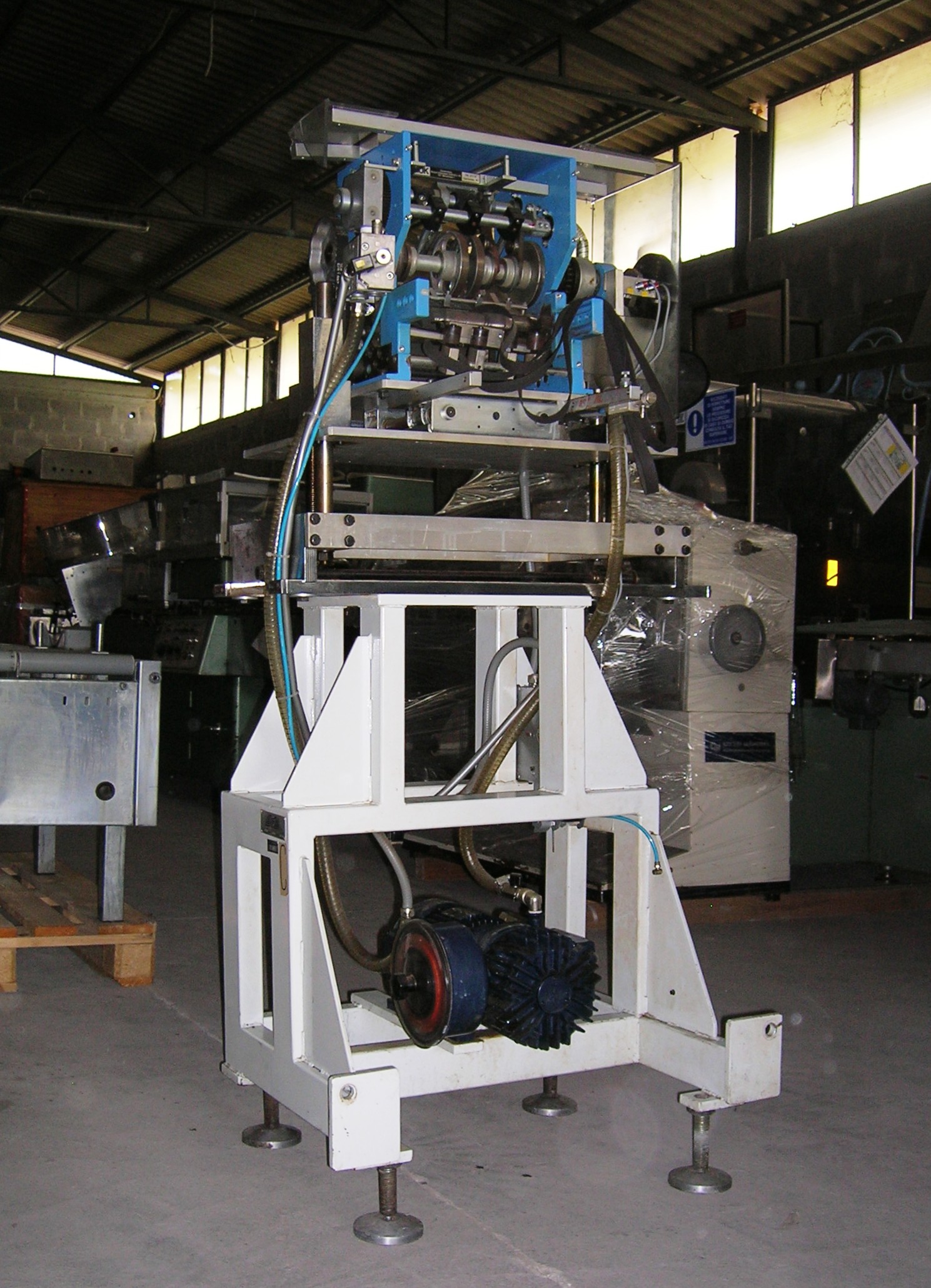

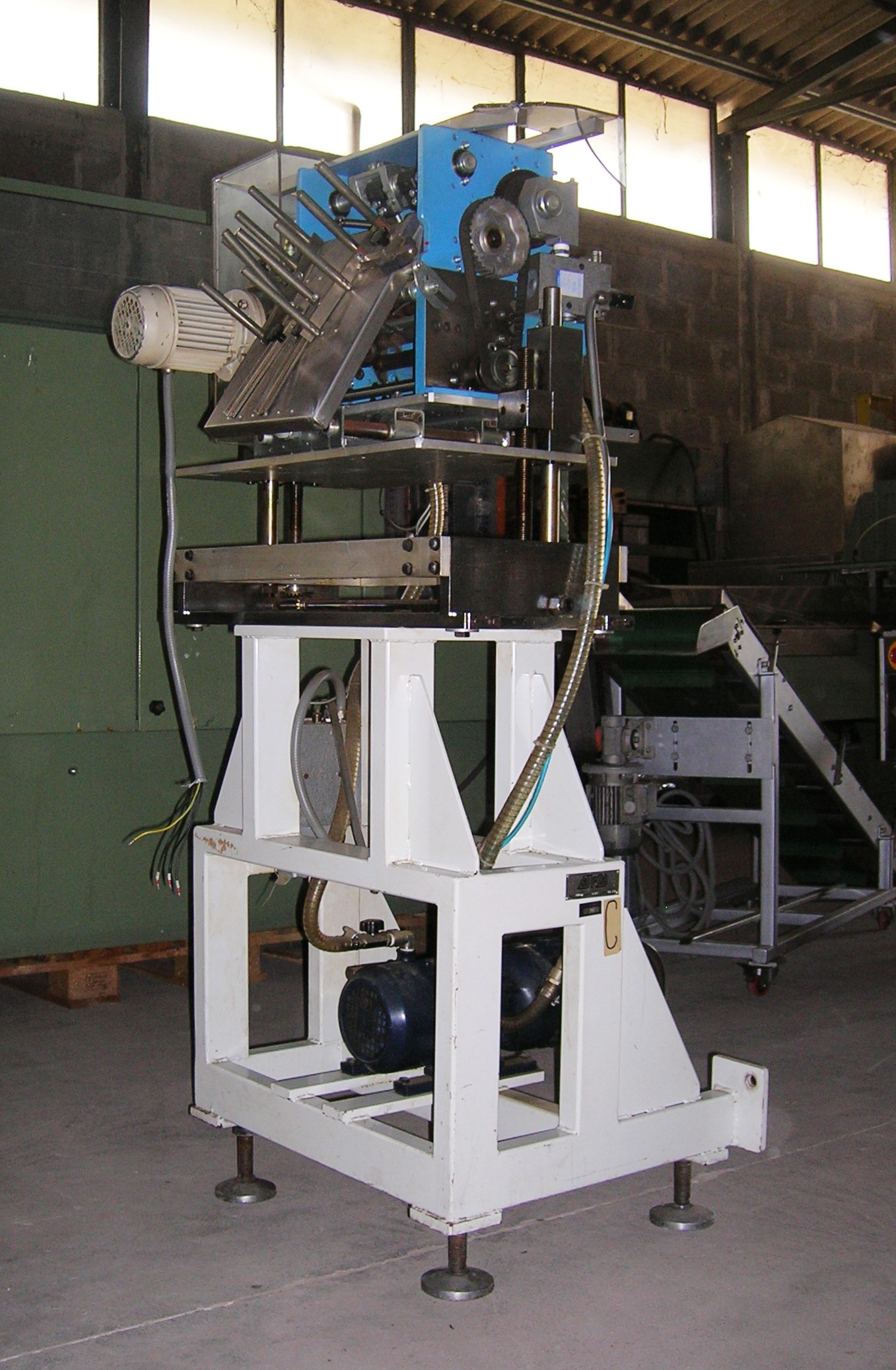

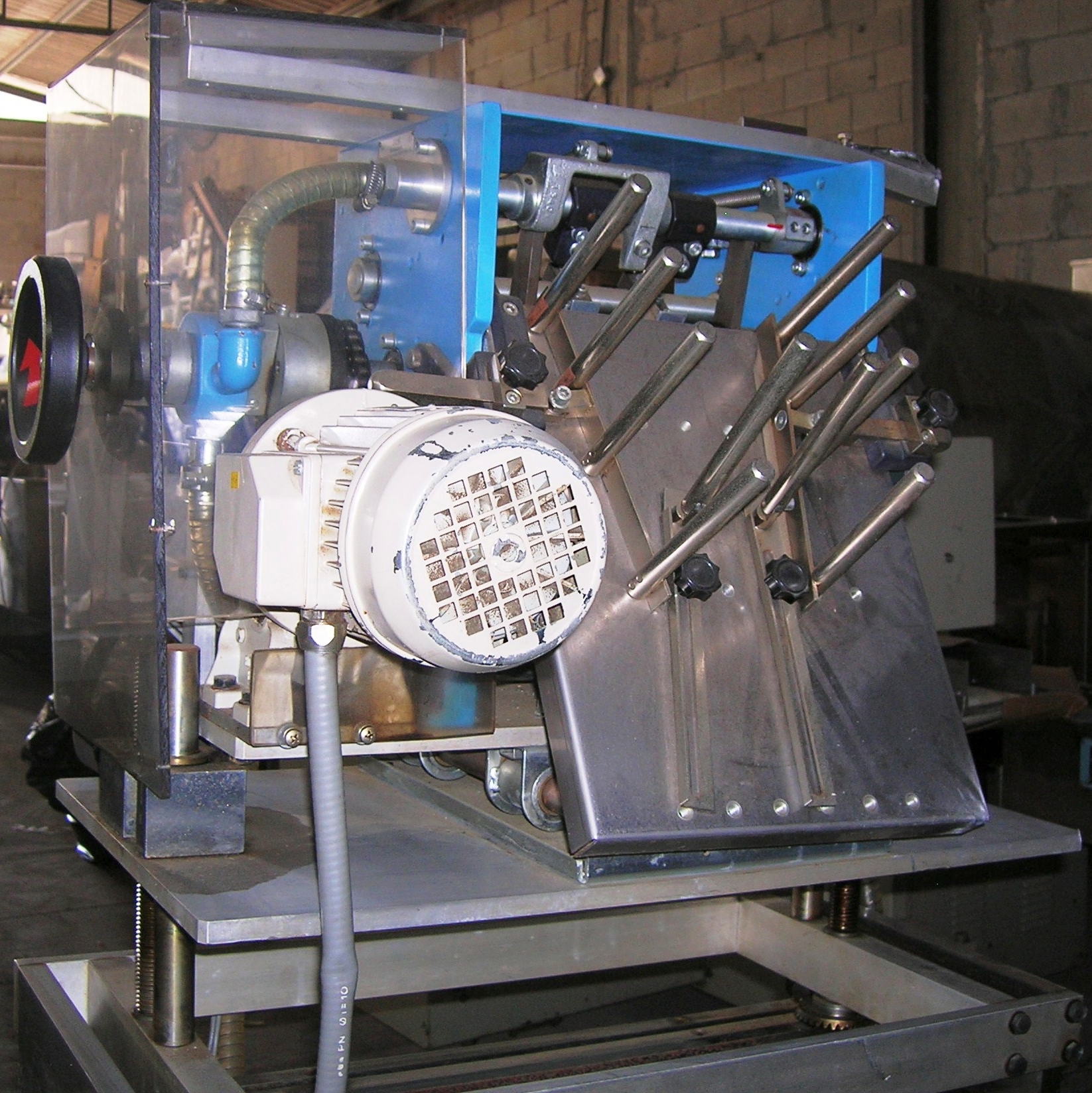

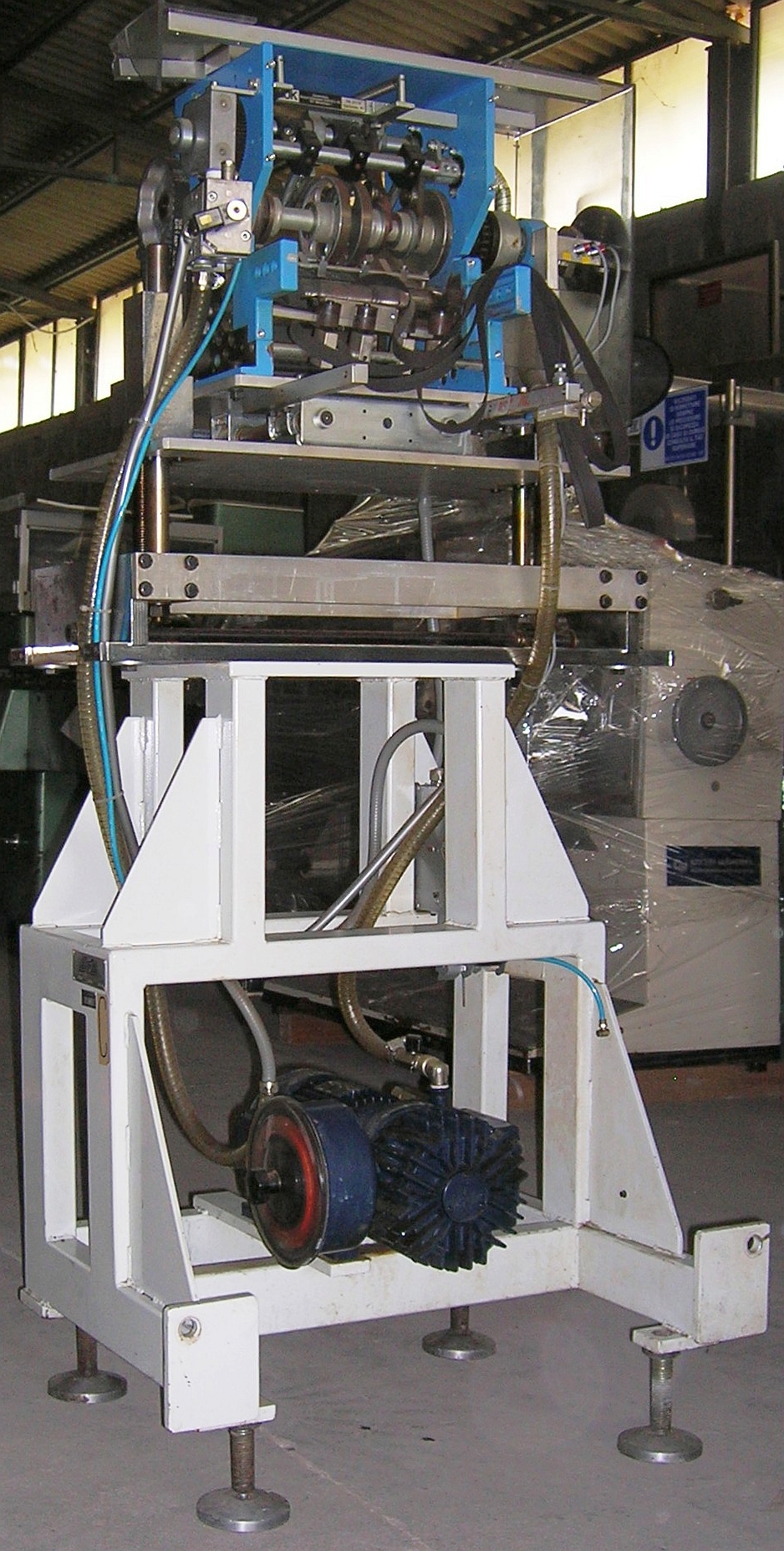

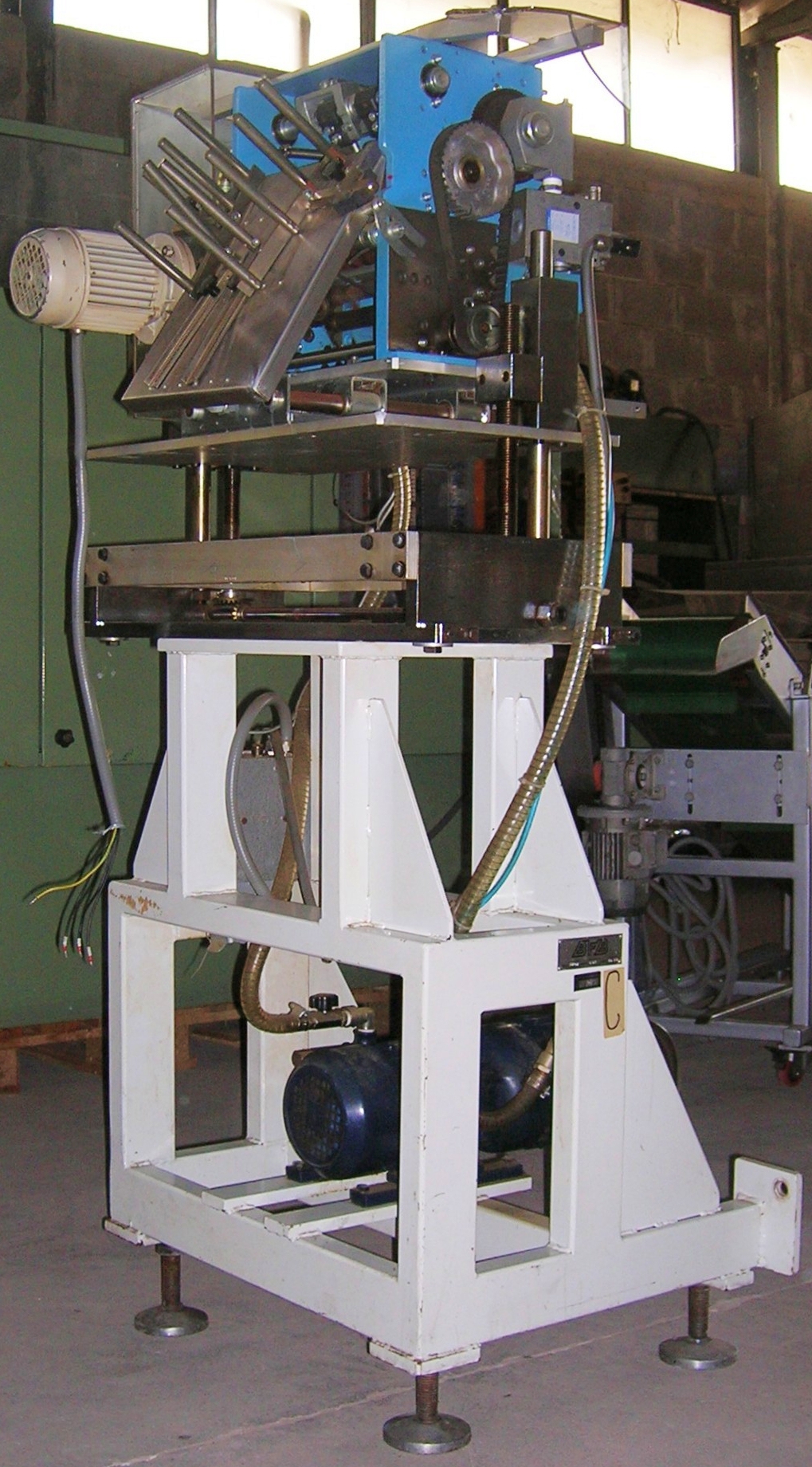

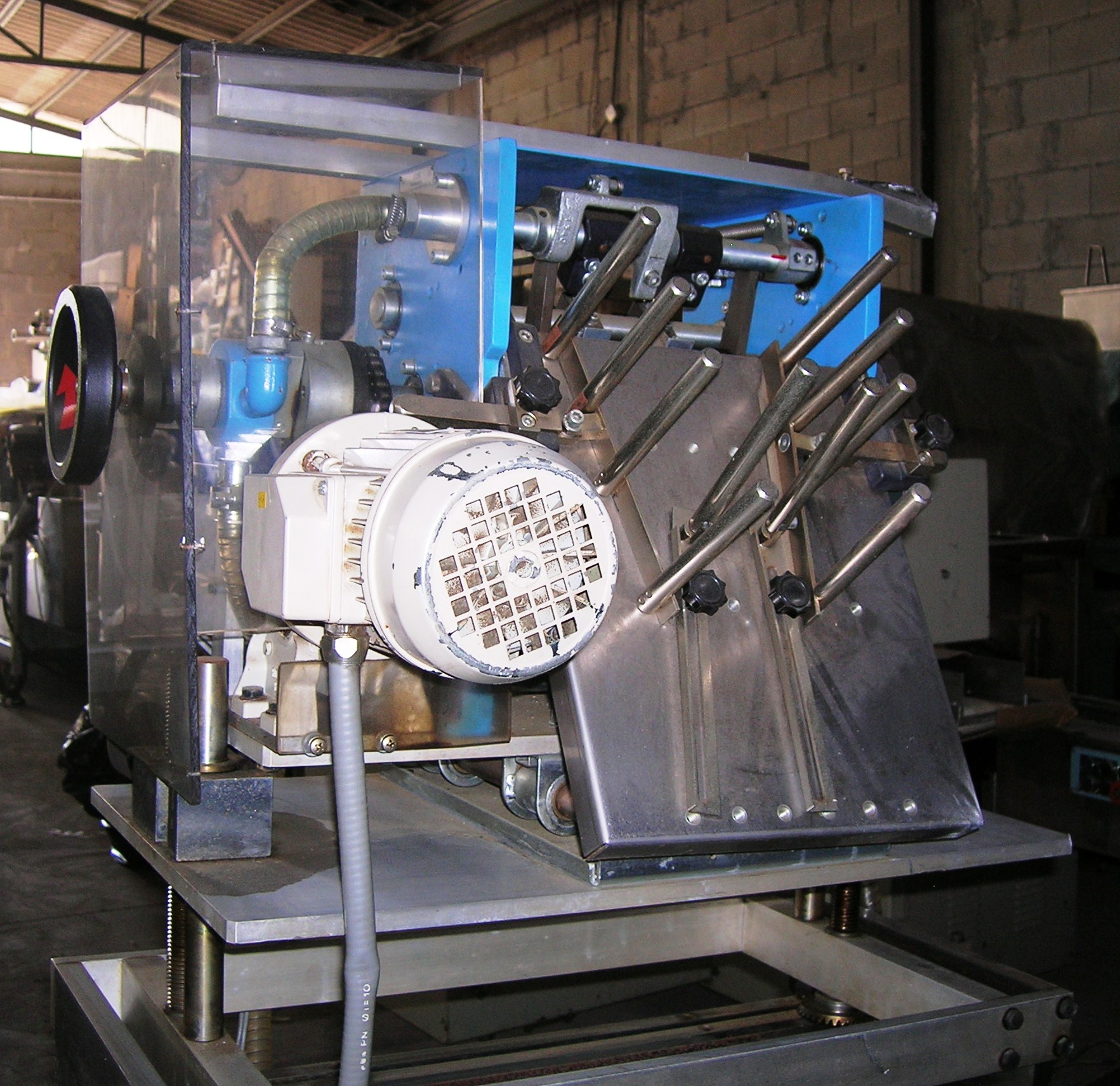

Folding machine adjustable in height, with 4 folding pockets. Sheets are pulled off from the bottom of the pile and then folded. Equipped with all necessary security and controling elements. The machine is standing on practical and stable legs that add to the precision of functioning. Noiseless drive which can be adjusted directly. Due to a construction set system it is possible to install this equipment in various combined folding systems.
It is also flexible and adaptable to several packaging lines, especially in the pharmaceutical and cosmetic sectors. Easy installation. Equipment CE conform.
TECHNICAL DATA:
Length mm 750
Width mm 600
Height mm 1600
Frequency Hz 50
Power absorbed kW 0,5
PRODUCTION CHARACTERISTICS:
Min./Max. pile height 40-150 mm
Min. format 6 x 8 cm
Max. format 21 x 30 cm
Smallest fold 15 mm
Output 400 brochures/min
Ideal paper quality 40 to 70 gr/m2
