Description
MACHINE TYPE:

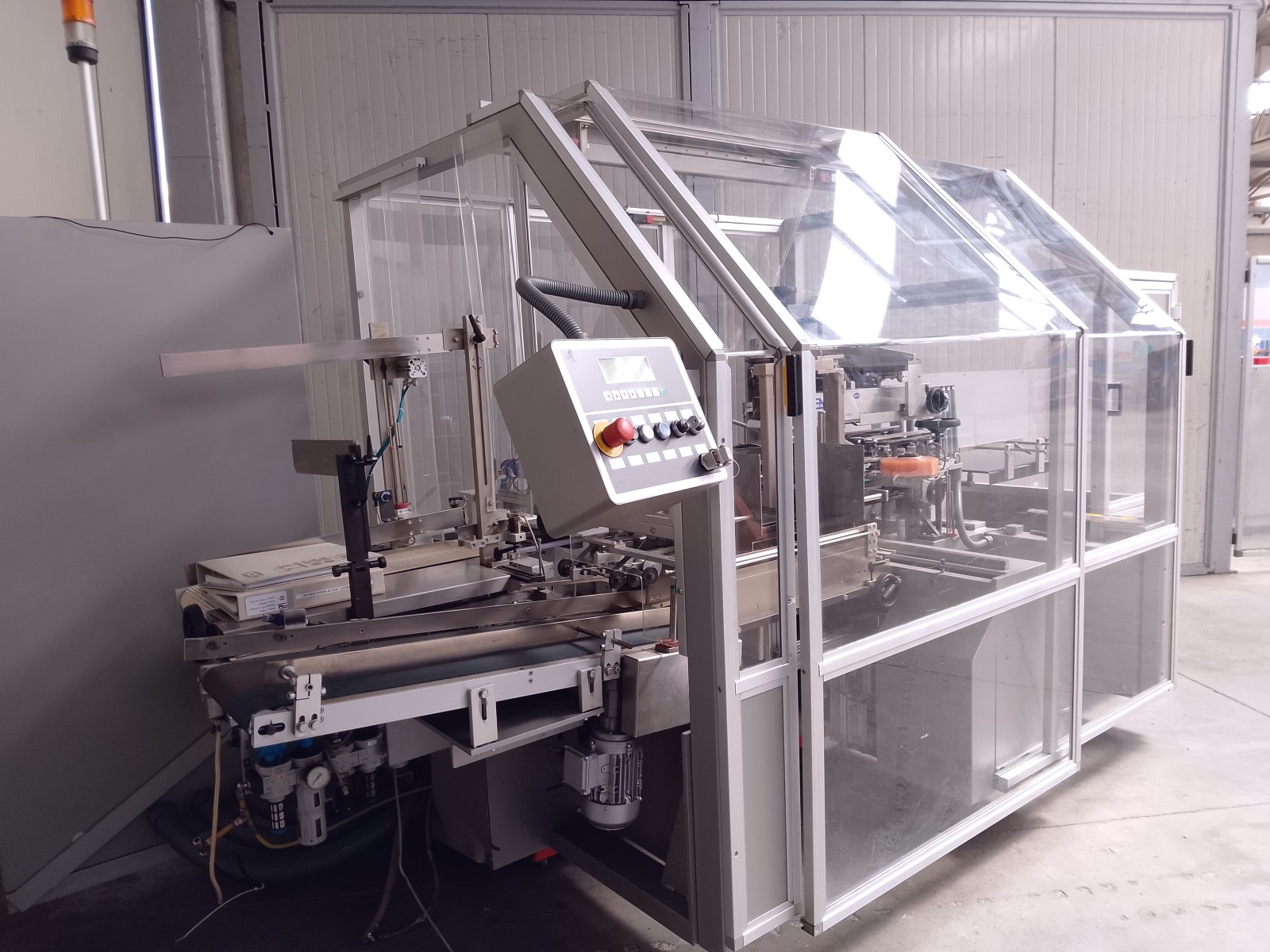

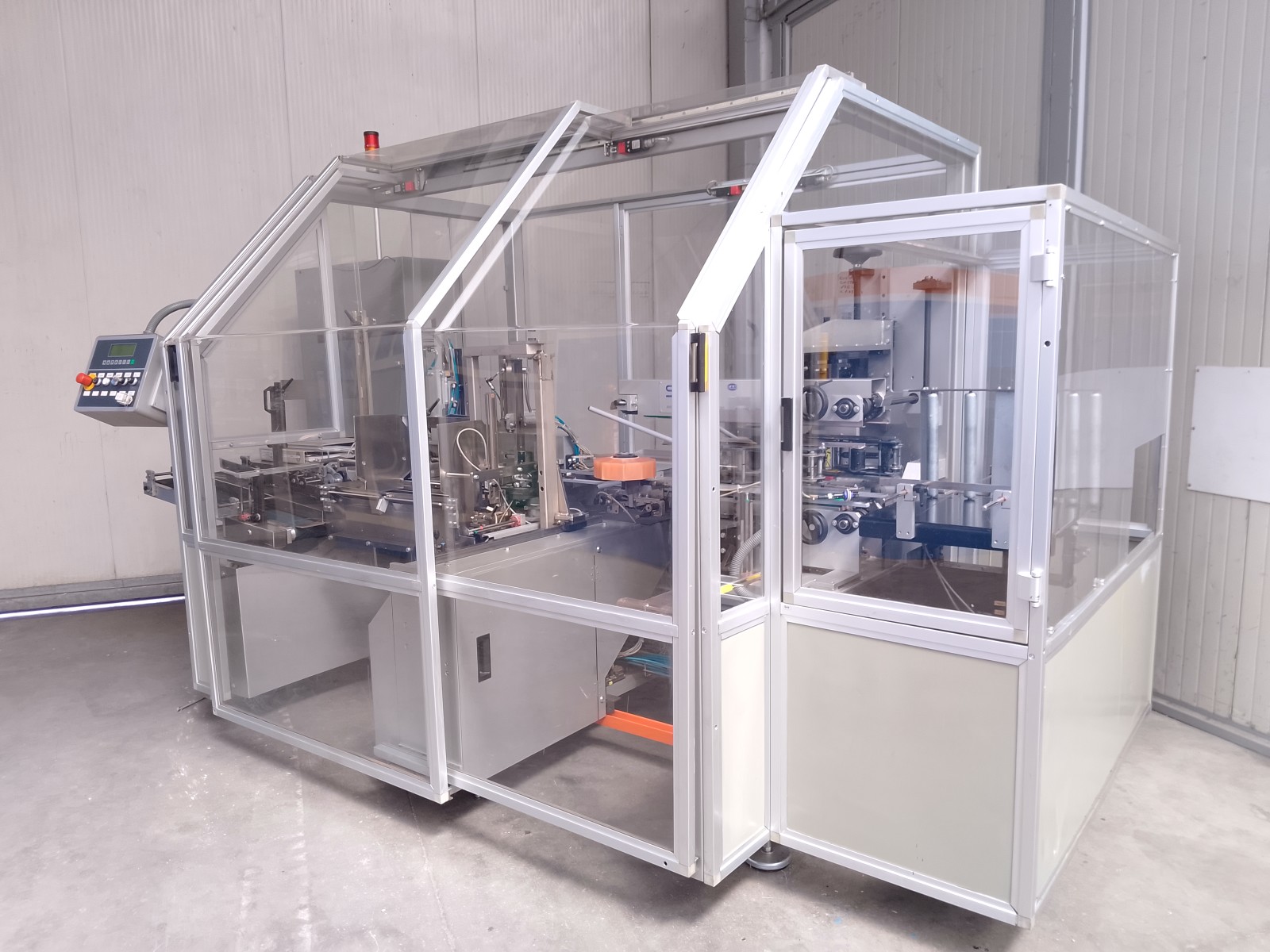

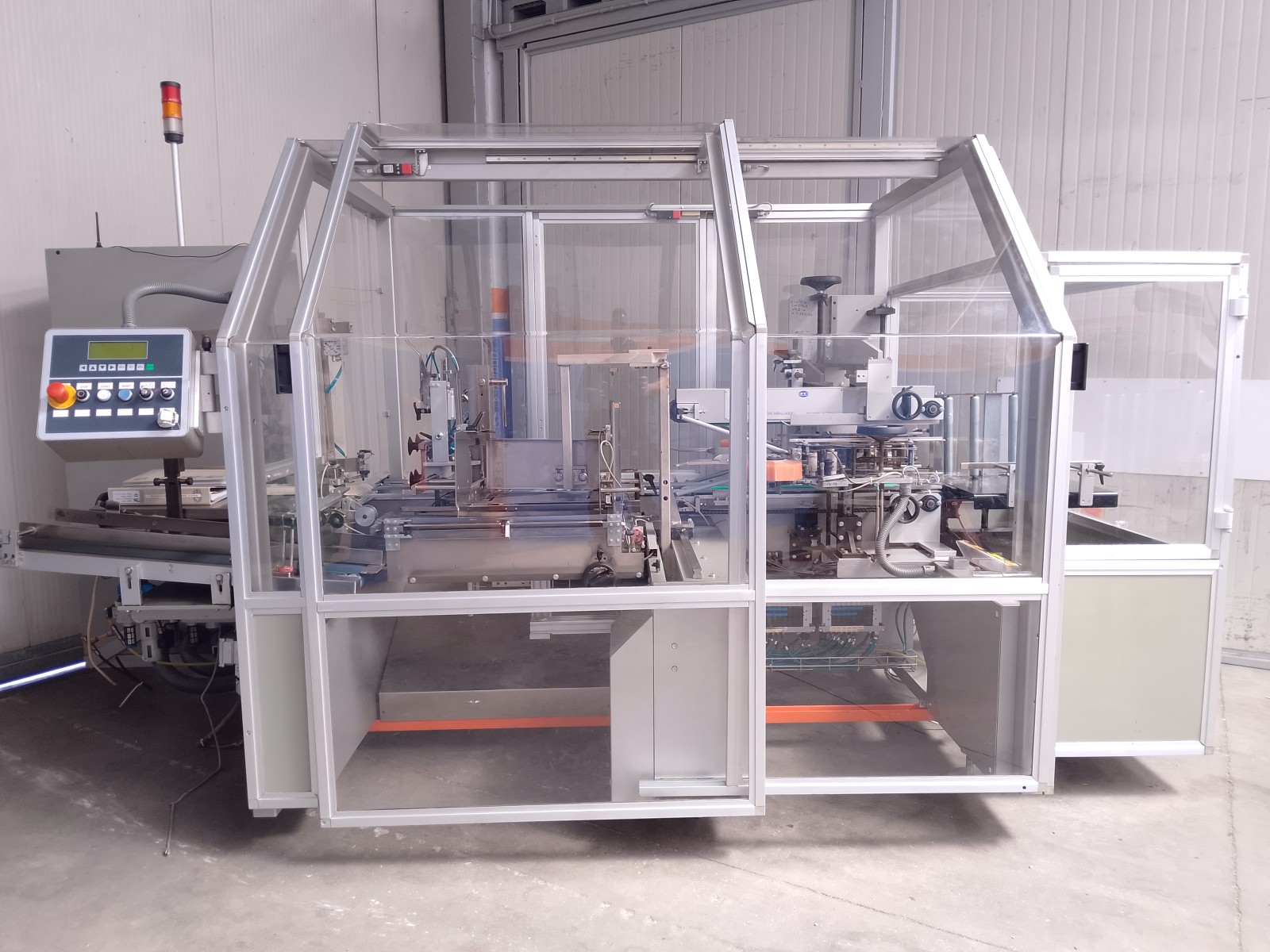

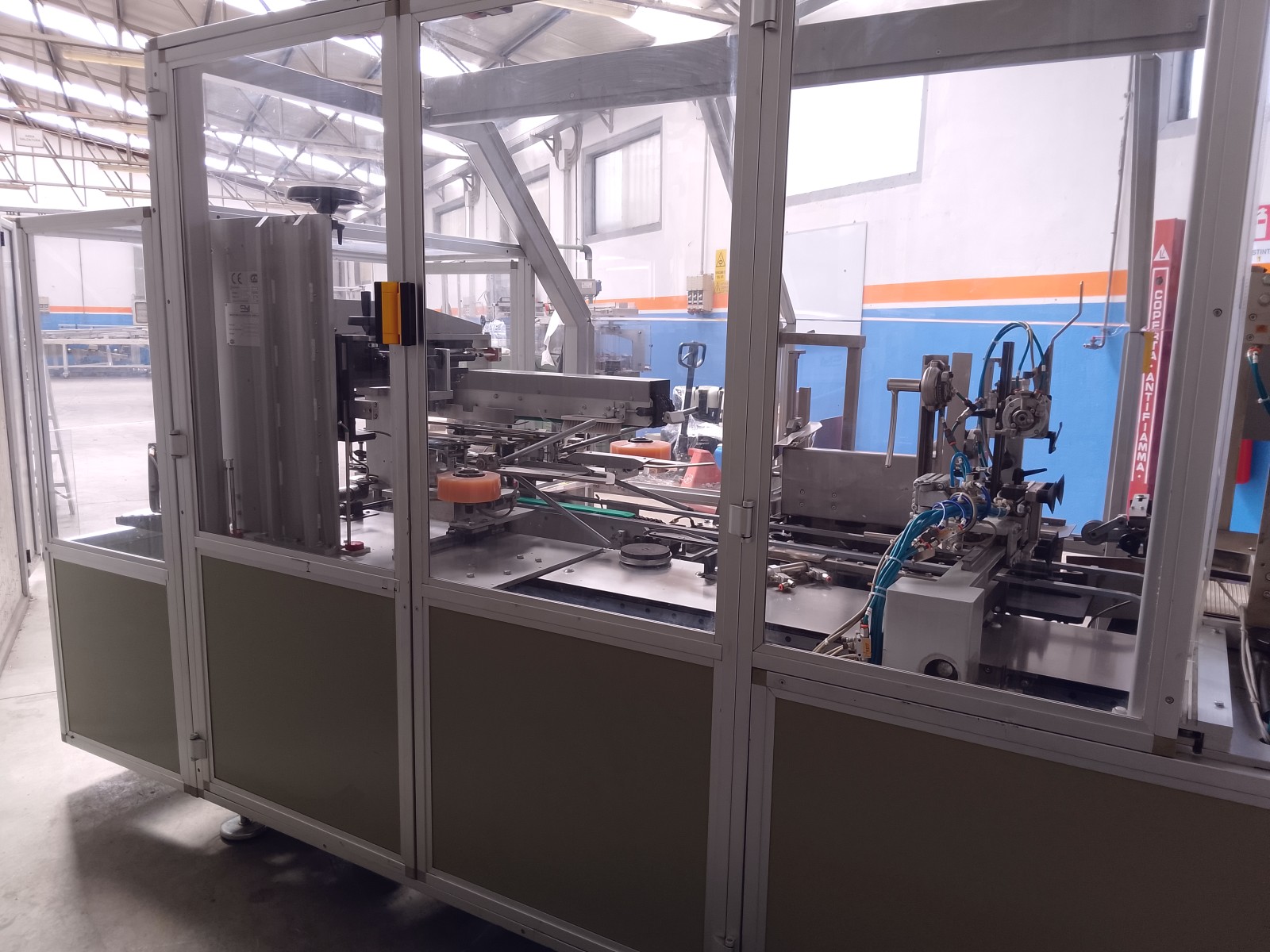

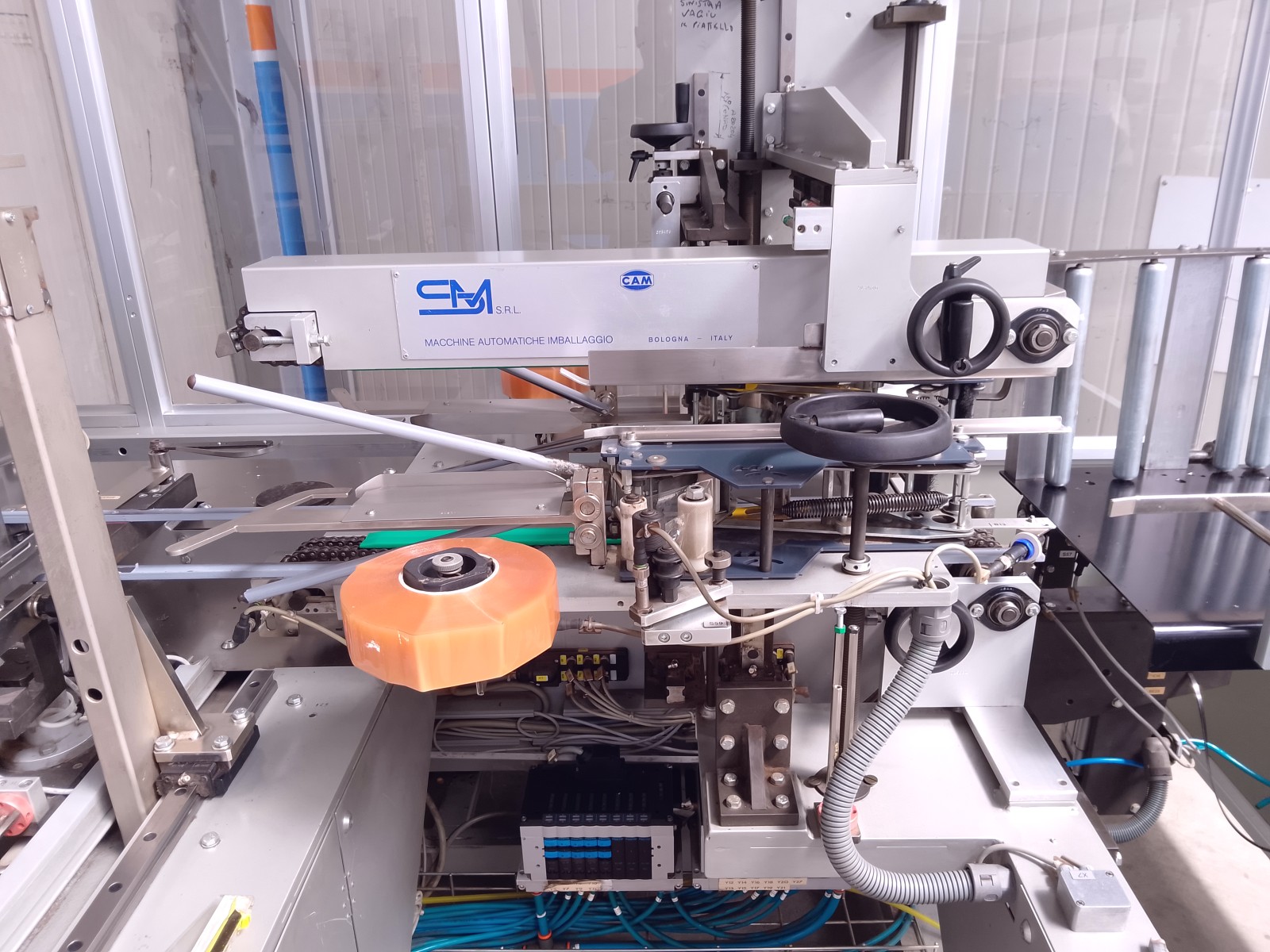

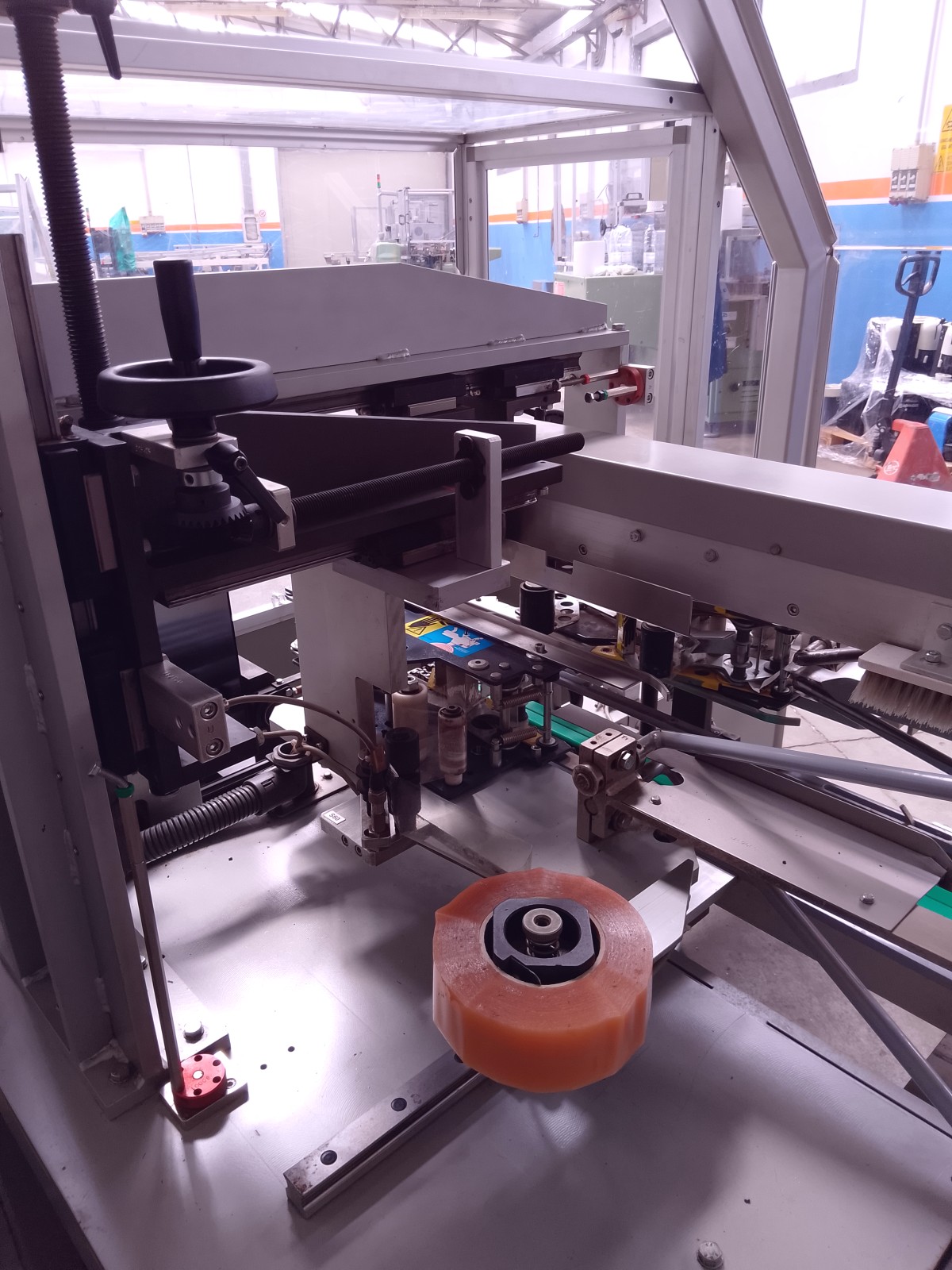

Horizontal automatic case packer with high versatility and reliability.
APPLICATION SECTOR:
Pharmaceutical, chemical, cosmetic, food, dietary, medical devices, manufacturing.
FEATURES:
This case packer is designed to deliver high performance even with non-premium materials. It can handle a wide range of products, either individually or grouped, into small to medium-sized cartons. The machine completes a fully automatic cycle, from picking the carton to its forming, and final packaging. Equipped with mechanical memory devices, it offers quick selection and repeatability in format change. Compatibility with different feeding systems allows for packaging of cartons or products of regular shape.
YEAR: 2006
TECHNICAL SPECIFICATIONS
Voltage: 400 Volt
Frequency: 50 Hz
Power consumption: 5 Kw
Dimensions (LxWxH) mm: 3750 x 1770 x 1900 h
Weight: 1000 kg
Max speed: 12 cycles/min
Max tape roll height: 50 mm
Product size range: Width 20 – 545 mm, Height 12 – 70 mm, Length 50-250 mm
Case size range:
Width 200 – 550 mm, Height 120 – 350 mm, Length 120 – 350 mm
