Description
DESCRIPTION:

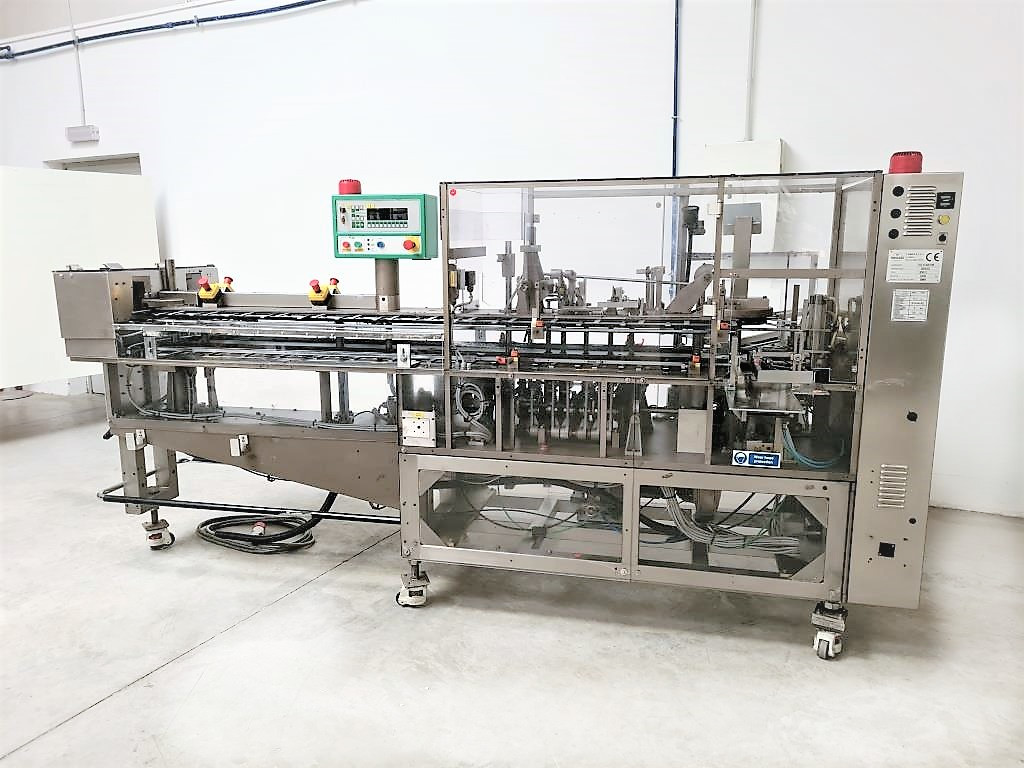

This type of machine with alternating movements is structured to perform the packaging of products. It is particularly suitable for manual loading, can be combined with weighing, dosing or automatic units for automatic loading.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:
This intermittent motion cartoner has been a success for many years. A constant updating of its capabilities has made it a machine with the highest quality performance and up-to-day technical features. At the same time, the Polycarton is a very reliable and flexibile machine. Easy and fast size changeover and capability to handle standard tuck ,closure cartons, glue closure, or both. Machine operations controlled by PLC. Carton presence control. Carton forming carried out by combined action of erection blade and vacuum control. Easy and fast size changeover. Suitable for four operators loading the cartons.
Year: 2006
TECHNICAL DATA
Length mm 3200
Width mm 2000
Height mm 1400
Weight kg 1000
Phases 3PH+N+PE
Absorption kw 3
Frequency Hz 50
Command tension VDC 24
PRODUCTION CHARACTERISTICS
Carton size min. mm 15 x 15 x 50
Carton size max. mm 120 x 90 x 250
Mechanical speed 75 strokes/min
Output max 70 cartons/min
