Description
MACHINE TYPE:

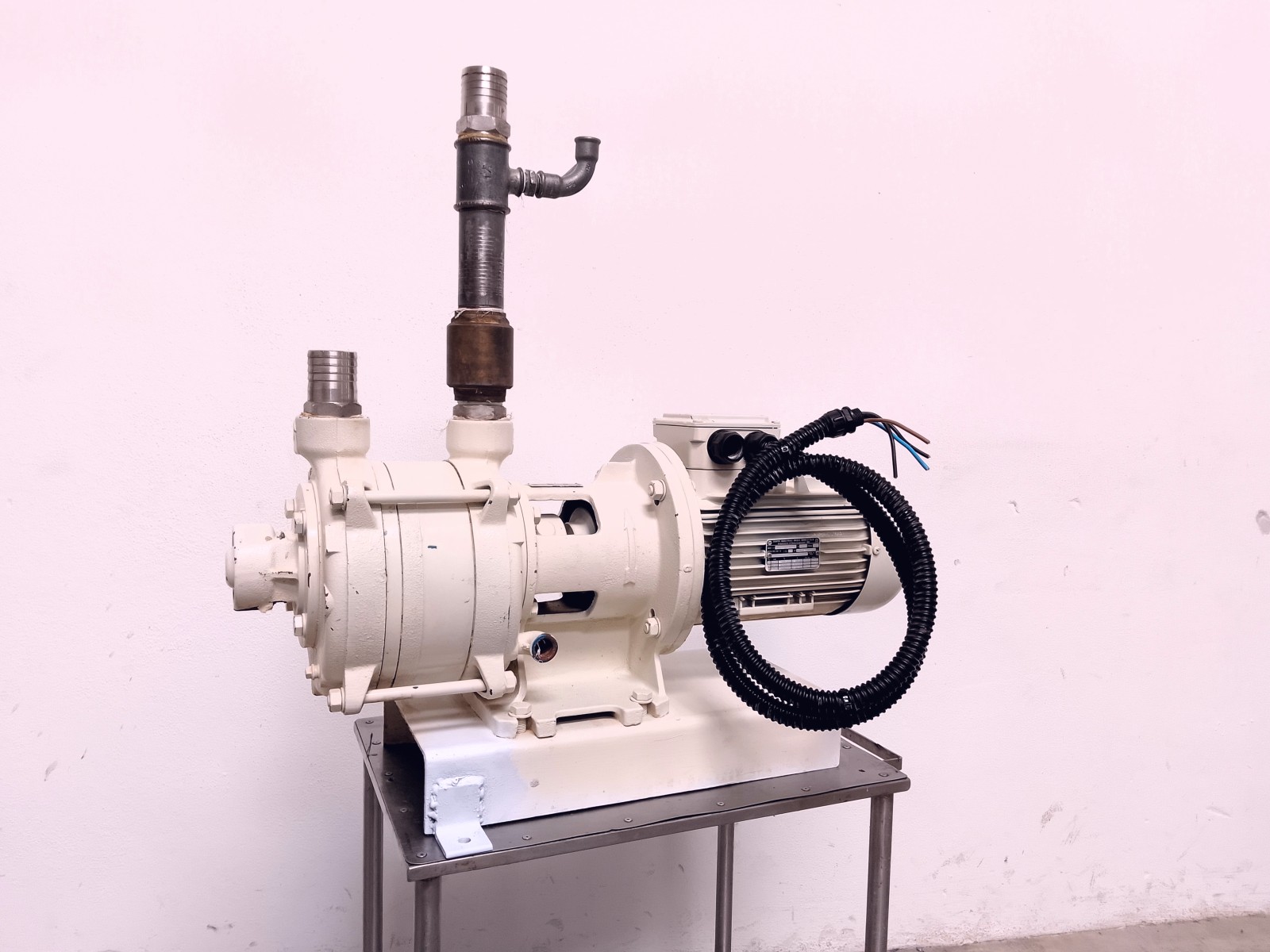

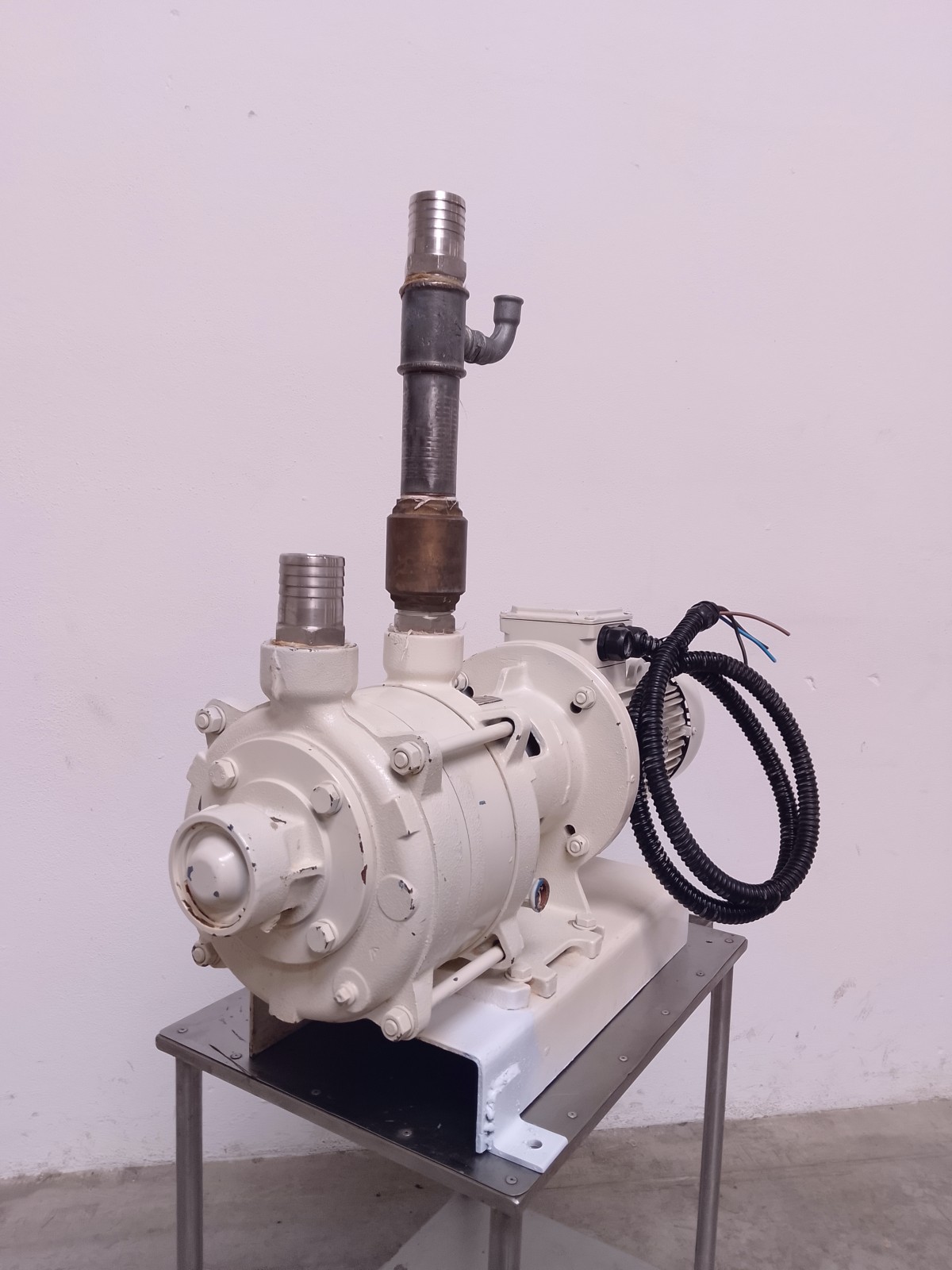

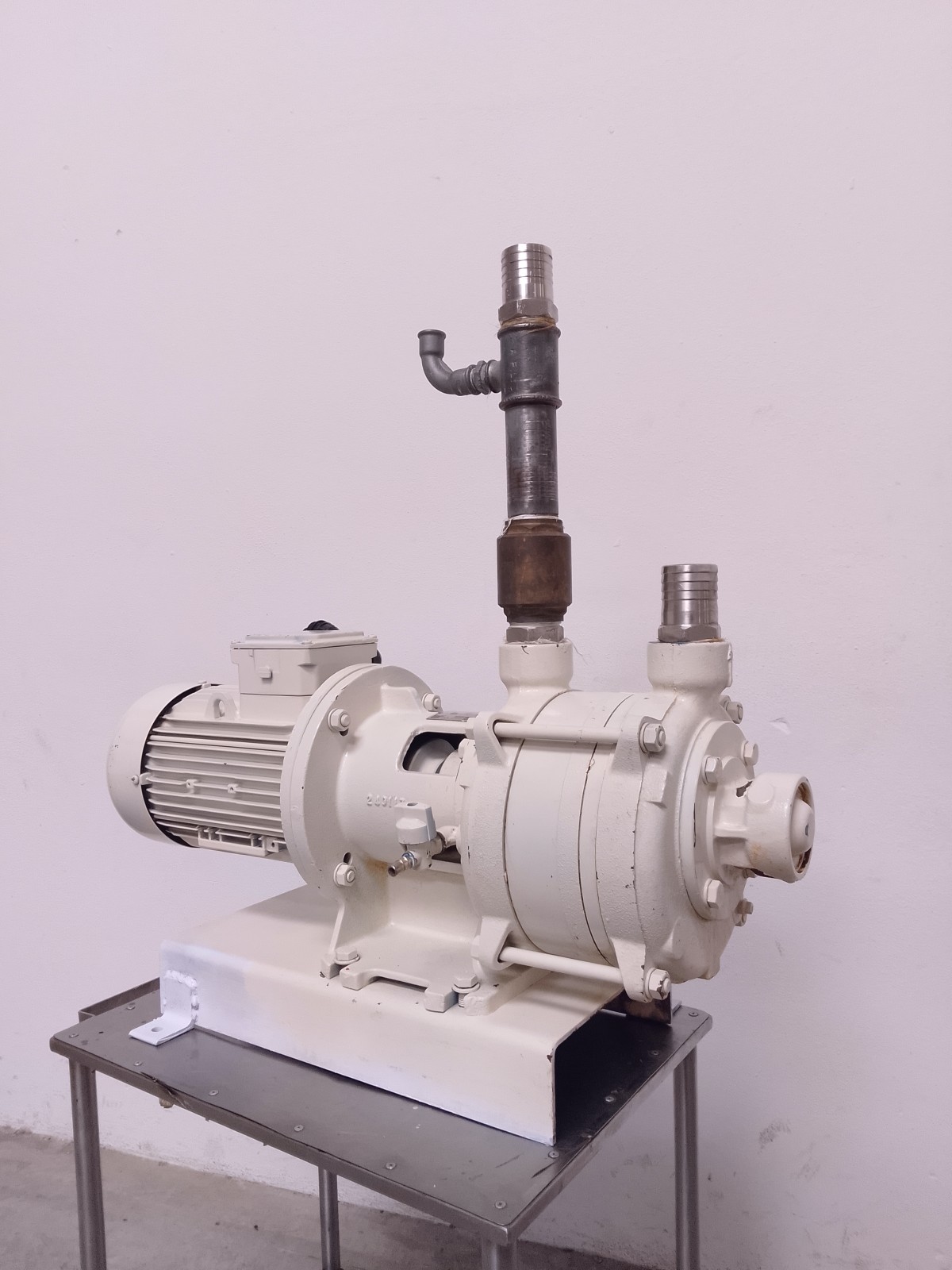

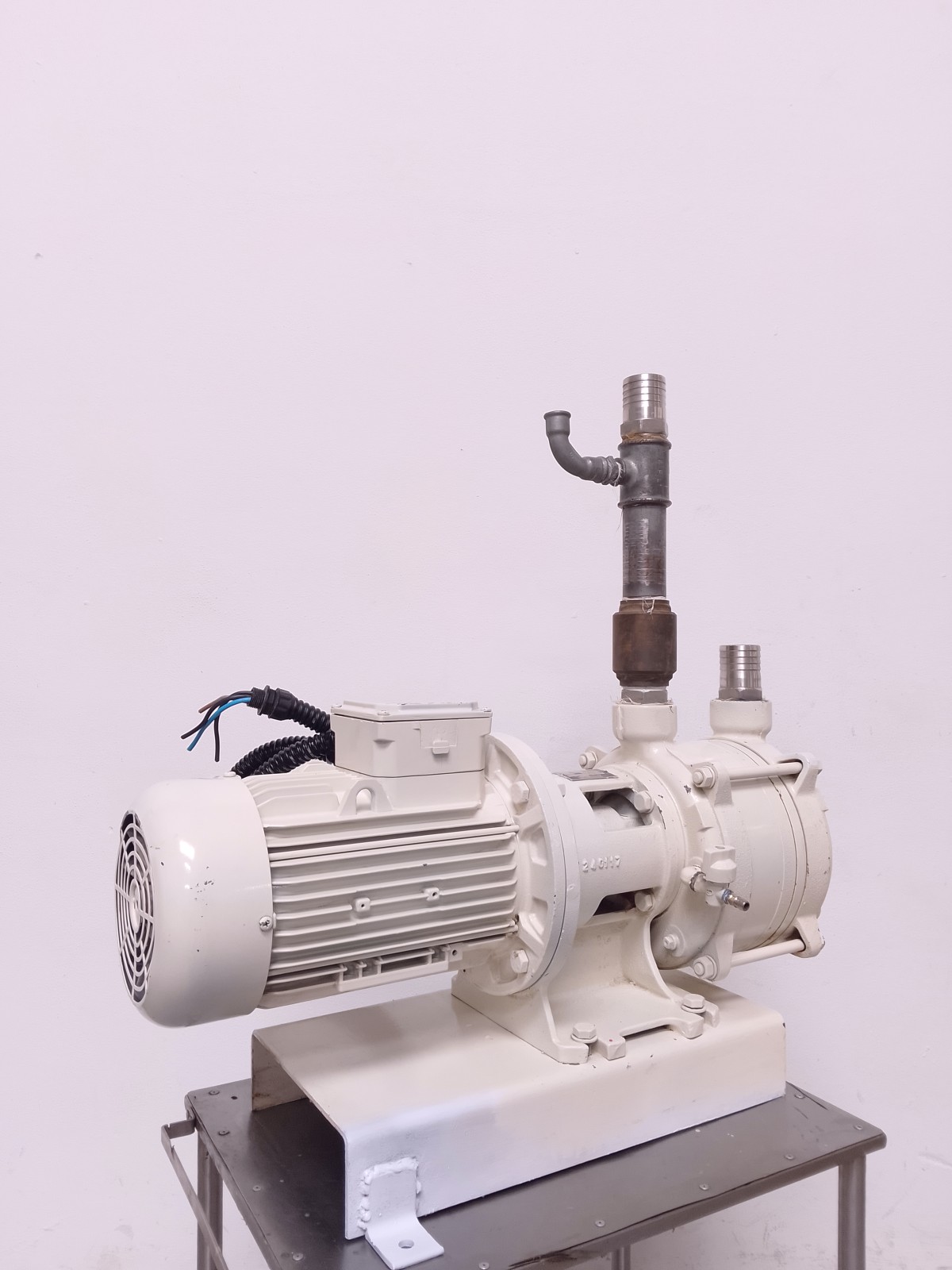

Liquid ring pump
APPLICATION SECTOR:
Chemical, Pharmaceutical, Food, Environmental
FEATURES:
The liquid ring vacuum pump utilizes the rotation of an impeller to create a liquid ring that acts both as a seal and a compression medium. This mechanism generates cavities that expand to suck in gas and contract to compress and discharge it. Thanks to this technology, the pump can handle wet gases, vapors, and liquids, absorb compression heat, and offer great reliability and robustness with reduced wear.
YEAR: 1988
TECHNICAL SPECIFICATIONS:
Voltage: 220-380 V (delta/star) or 240-415 V (delta/star) or 260-440 V (delta/star)
Frequency: 50 Hz or 60 Hz
Power: 3 kW (at 50 Hz) or 3.55 kW (at 60 Hz)
Current: 12/7 A (at 50 Hz)
Power Factor (cos𝜙): 0.81
Nominal Speed (RPM): 1430 min-1 (at 50 Hz)
Protection Rating (IP): 55
Insulation Class (I.CL): F
Service (S): S1 (continuous service)
