Description
MACHINE TYPE:
Professional drying oven for heating and thermal treatment applications.
APPLICATION SECTOR:
Pharmaceutical, chemical, cosmetic, food, dietary, medical devices.
FEATURES:

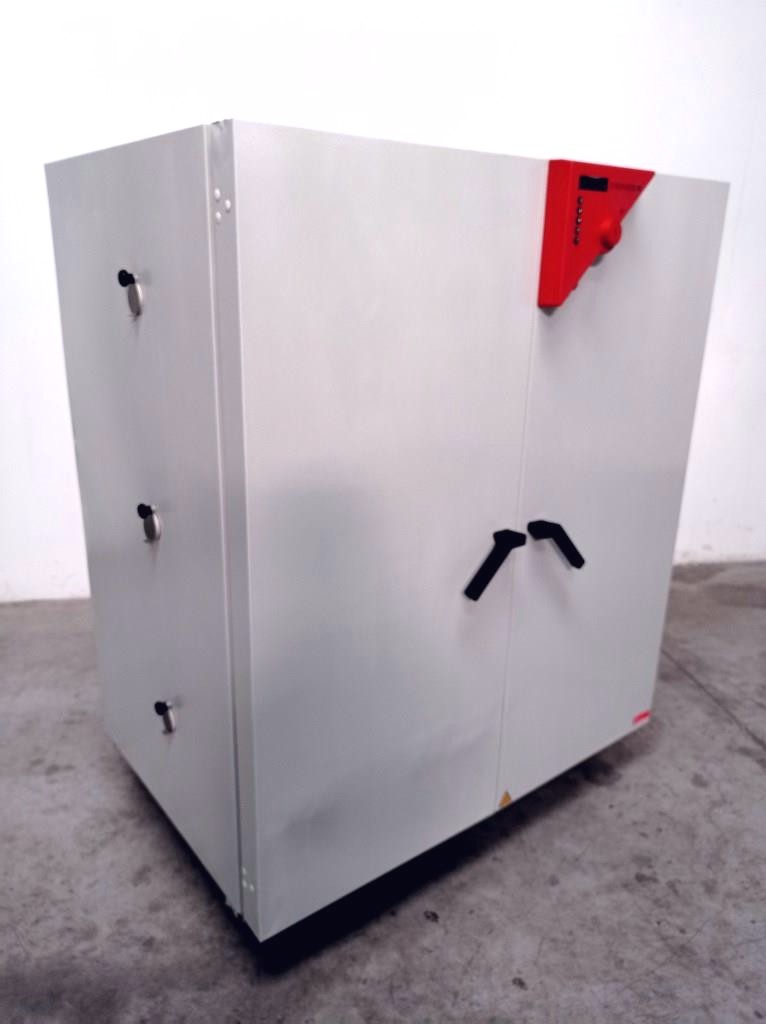

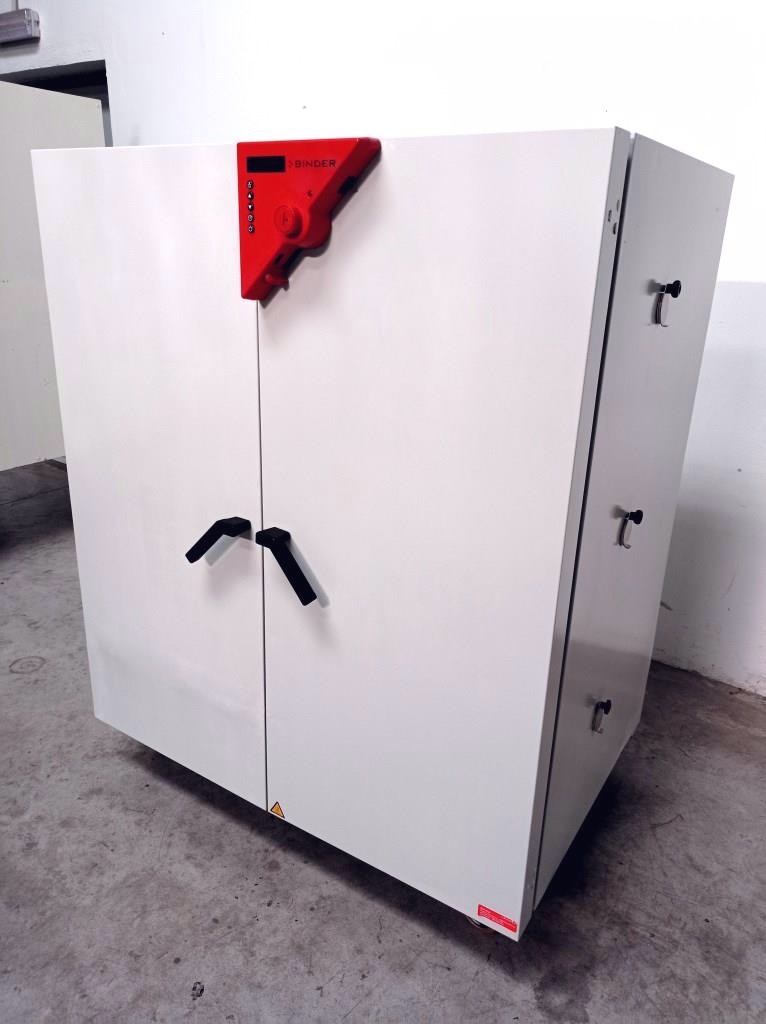

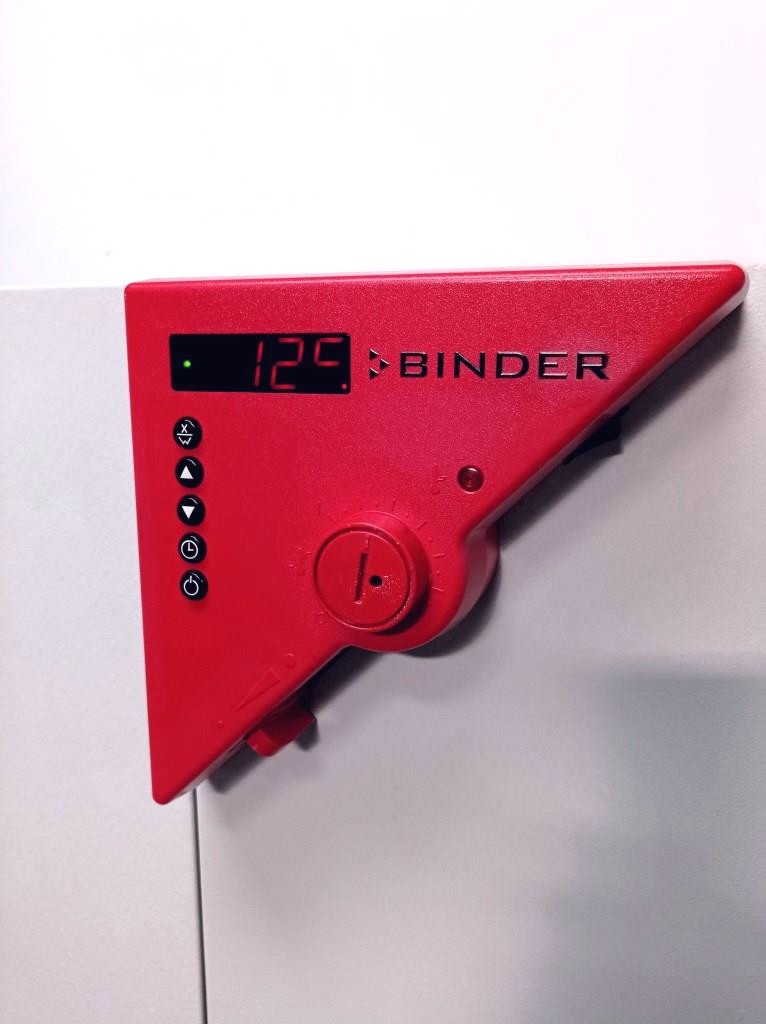

The Binder FED 720 drying oven is designed to ensure temperature uniformity and operational reliability. The forced convection system provides homogeneous heat distribution, making it ideal for drying samples and technical materials. With electronic temperature control up to 300 °C, it offers high precision and operational stability. The robust structure allows continuous use in laboratory and production environments, compliant with European regulations and CE marked.
TECHNICAL SPECIFICATIONS
Maximum temperature: 300 °C
Electrical supply: 400 V – 3N – 50/60 Hz
Installed power: 5.0 kW
Nominal current: 10.9 A
Protection class: IP20
Safety class: Class 2.0
Reference standard: DIN 12880
Construction: stainless steel inner chamber, industrial structure
Marking: CE

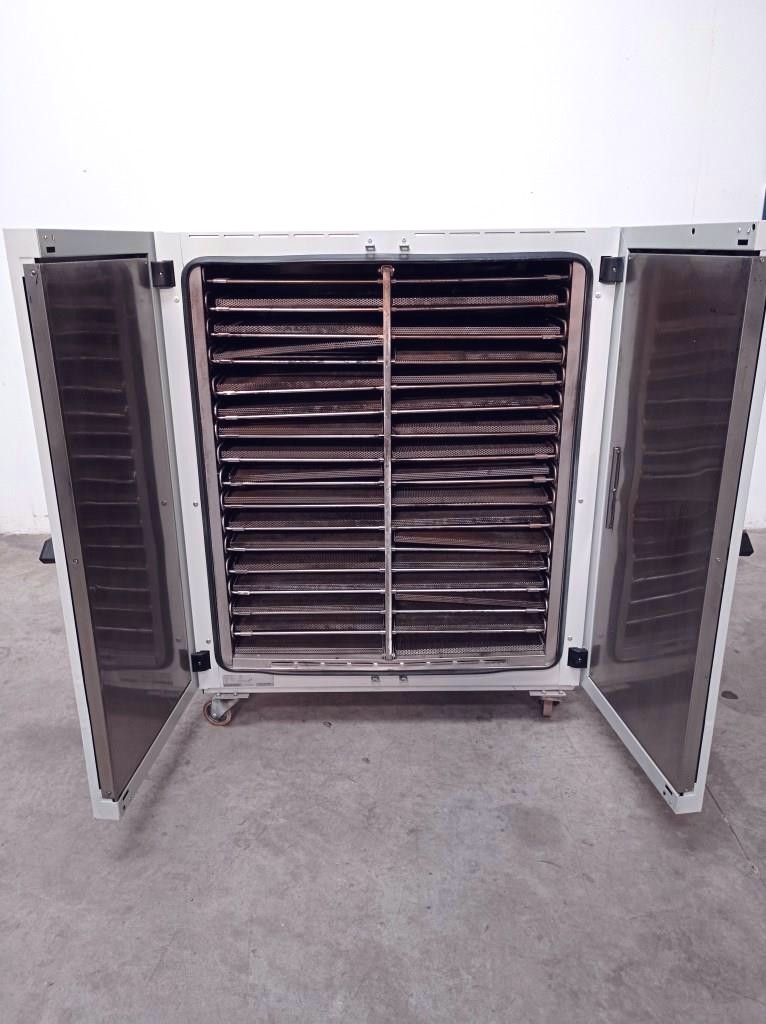

Number of shelf slots: 32
Number of shelves: 32

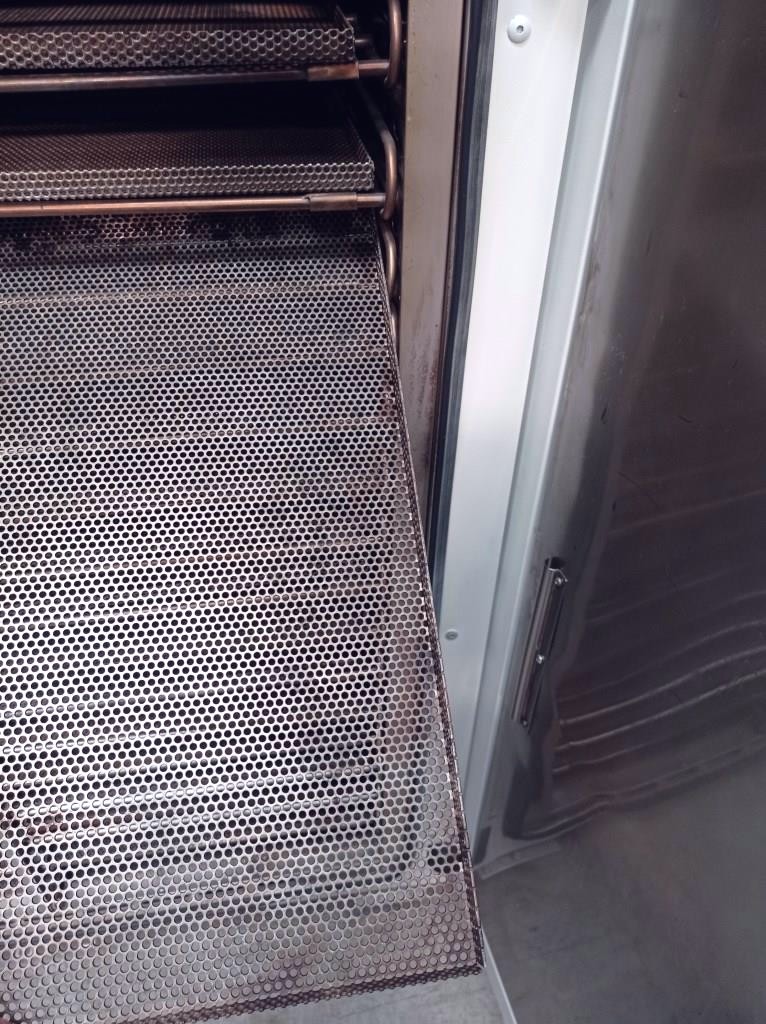

Shelf dimensions: 550 × 480 × 20 mm
Hole diameter: 4 mm
Oven chamber dimensions: 1000 × 630 mm
Dimensions (LxWxH) mm 1300 x 950 x h 1570
Weight: kg 180
