Description
MACHINE TYPE:

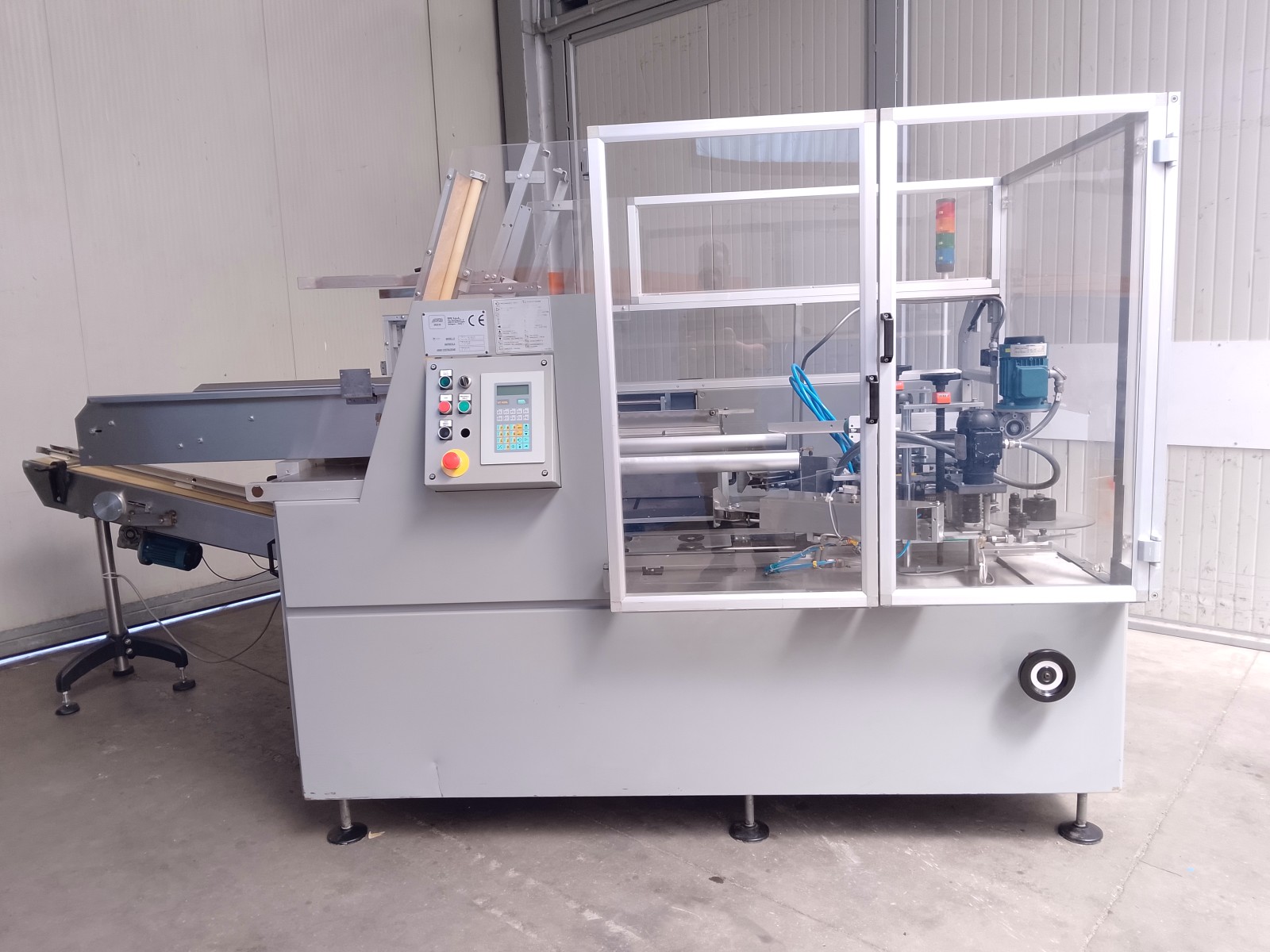

Automatic case packing machine for shipping cartons.
APPLICATION SECTOR:
Pharmaceutical, chemical, cosmetic, food, dietary, medical devices.
FEATURES:
This machine is designed to ensure maximum reliability and high versatility, with minimal footprint and compact dimensions, offering high production characteristics even with lower quality materials. Suitable for inserting bundled individual boxes into cases or pre-glued trays of standardized dimensions. The electrical system complies with European regulations, noise level is controlled, and safety guards are integrated. It includes a horizontal carton magazine for easy loading and suction cup pick-up arms to ensure perfect squaring of the case during the filling phase, with automatic closure of the case flaps.
YEAR: 1998
TECHNICAL SPECIFICATIONS
Voltage: 380 Volt
Frequency: 50 Hz
Dimensions (LxWxH): 3700 x 1800 x 1800 mm
Weight: 1000 kg
Max. speed per min.: 20 cartons
Min. case size: 215 x 120 x 95 mm
Max. case size: 500 x 380 x 380 mm
