Description
DESCRIPTION:

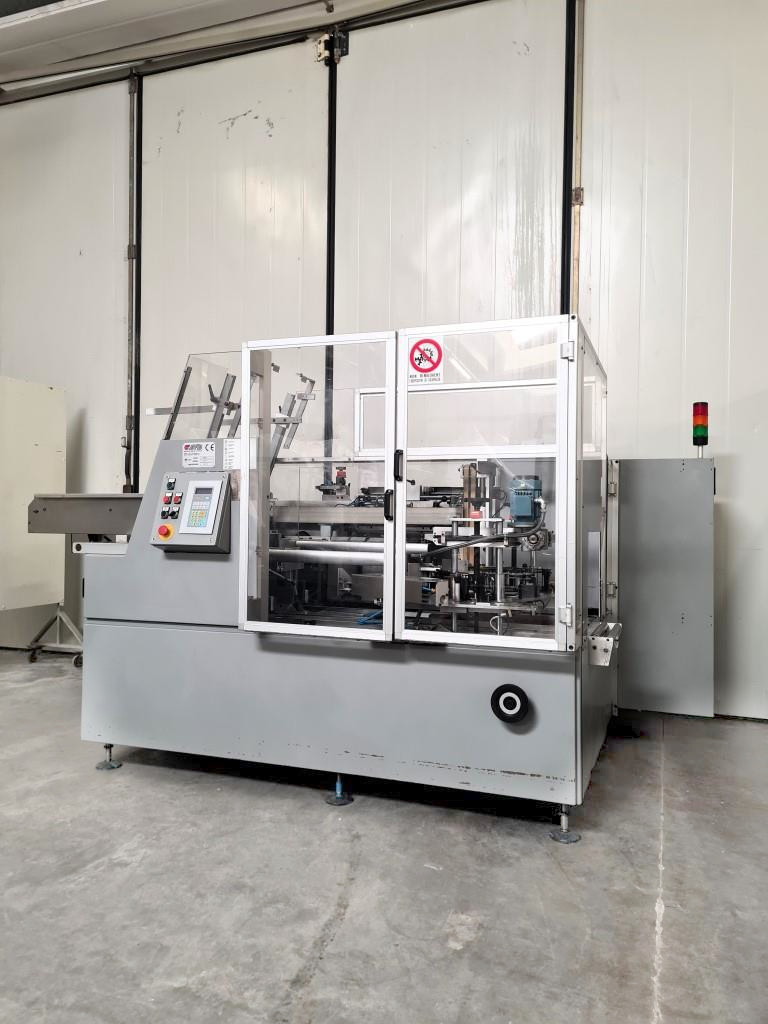

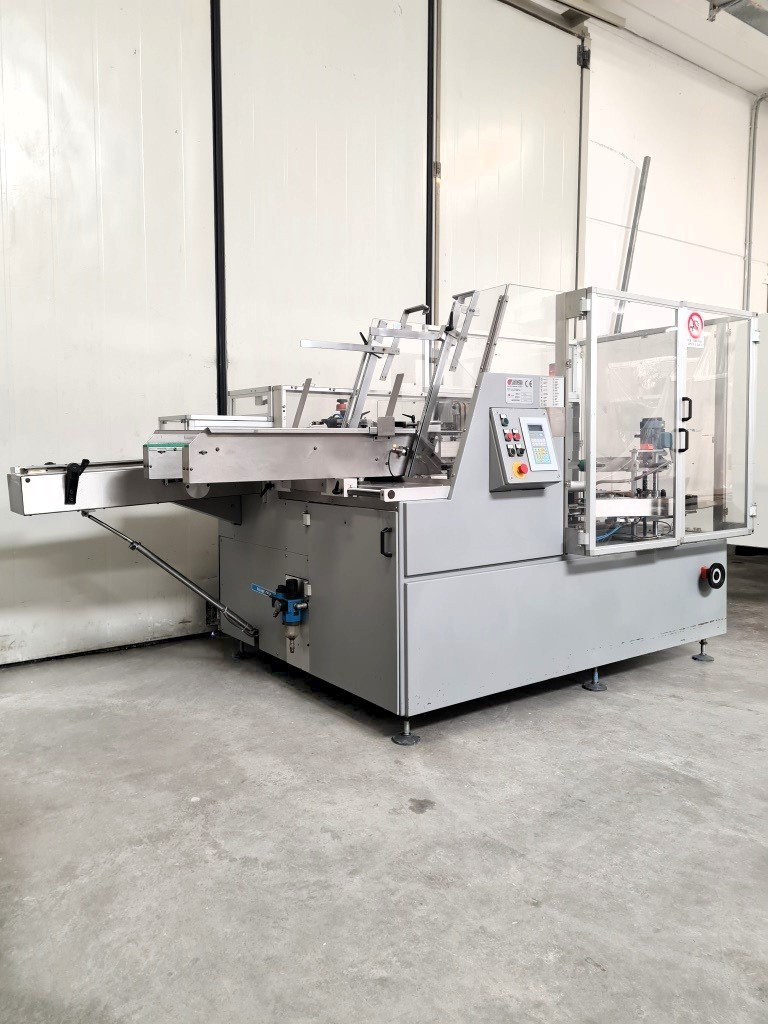

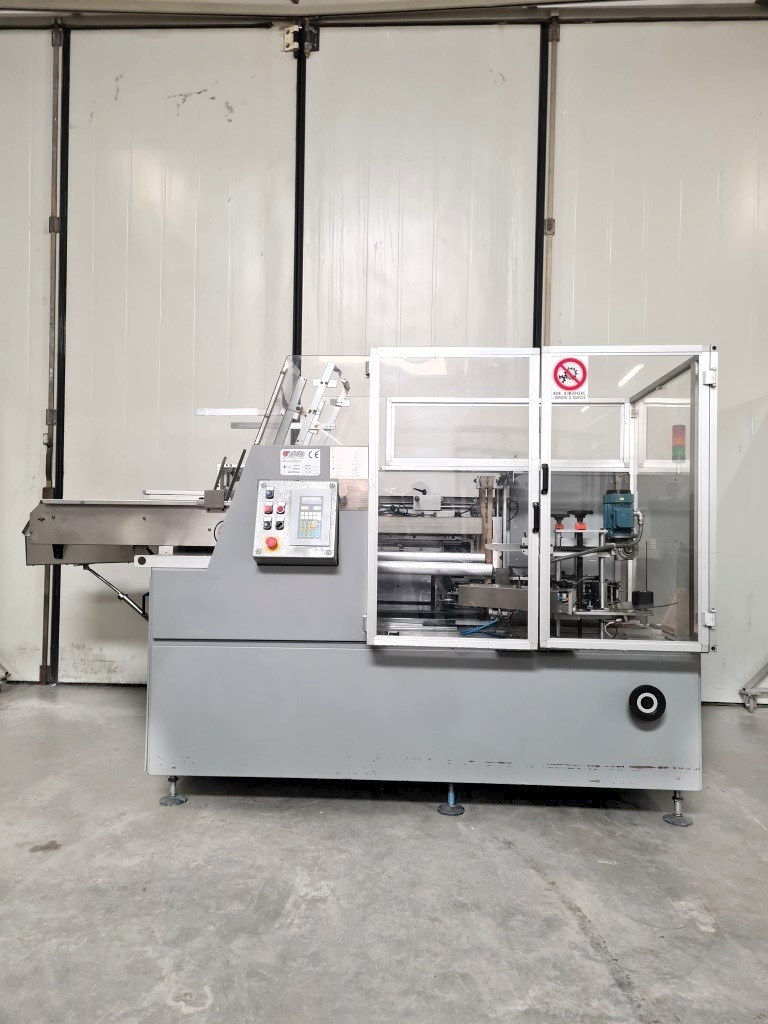

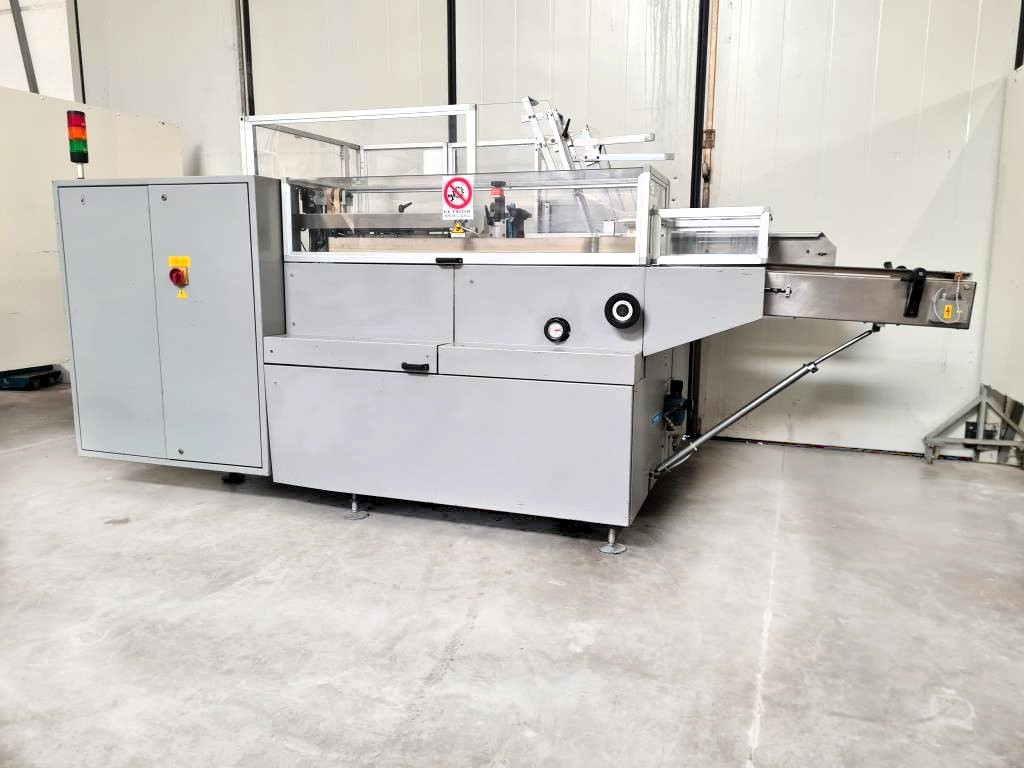

Automatic horizontal case packer, machine for the final packaging in cardboard, made in a way to ensure reliability, versatility and space saving. A really small size equipment with high production features. A machine of new conception particularly suitable for the insertion of individual cartons grouped in cases or pre-glued trays with standardized dimensions even of poor quality.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:

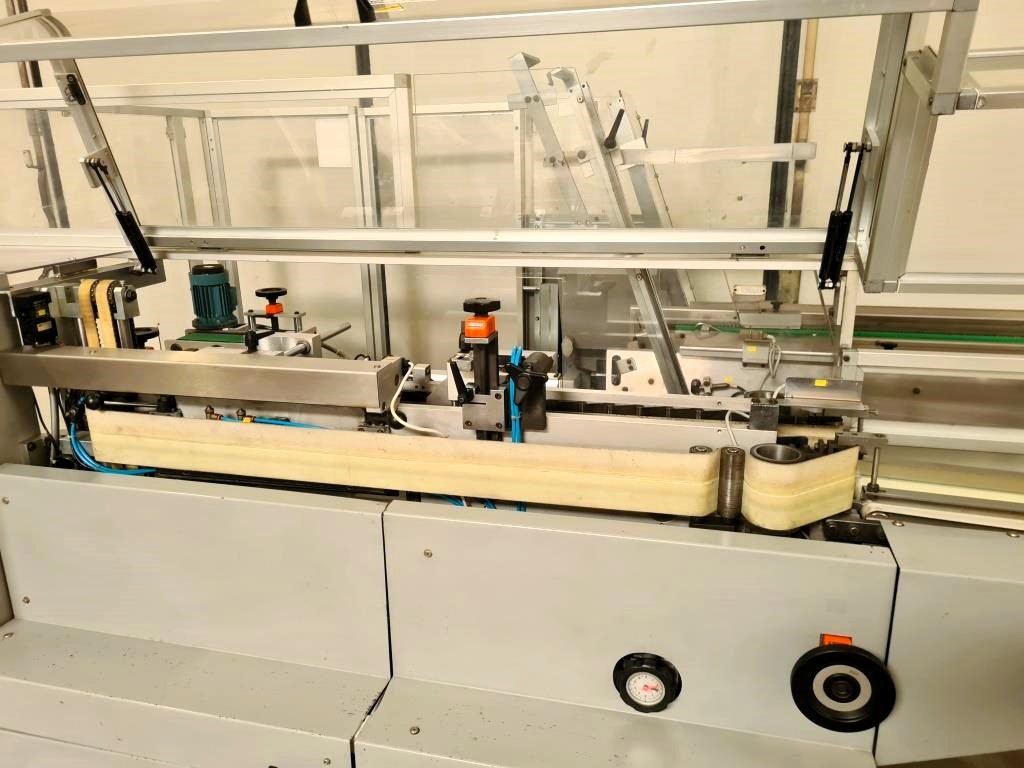

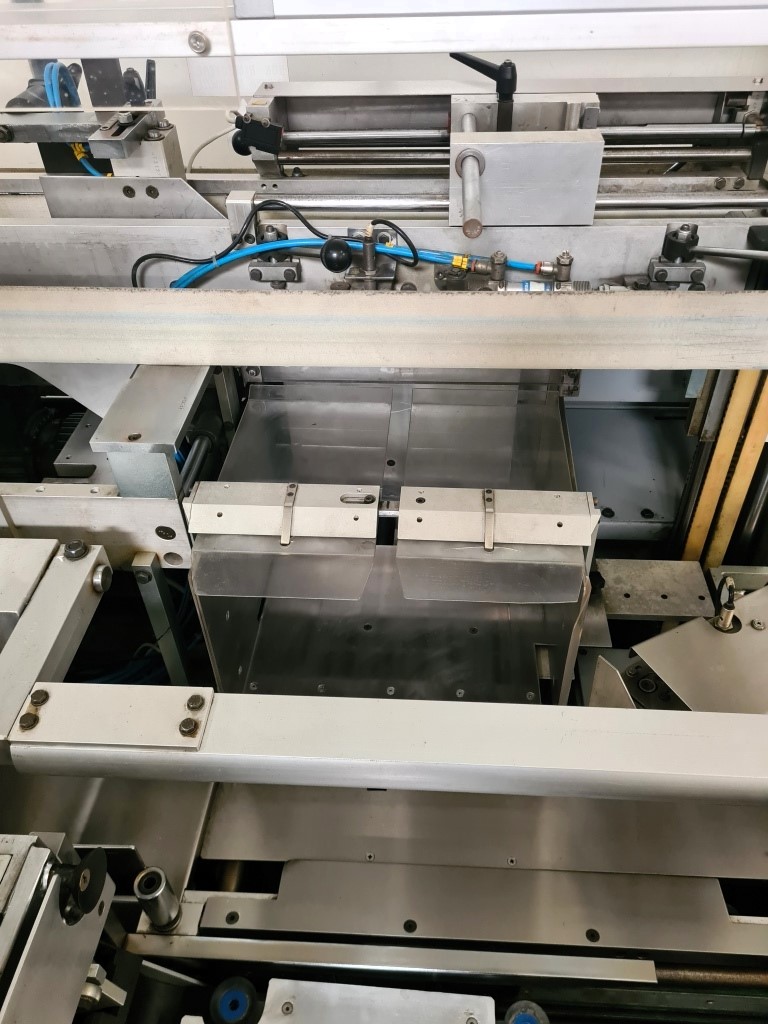

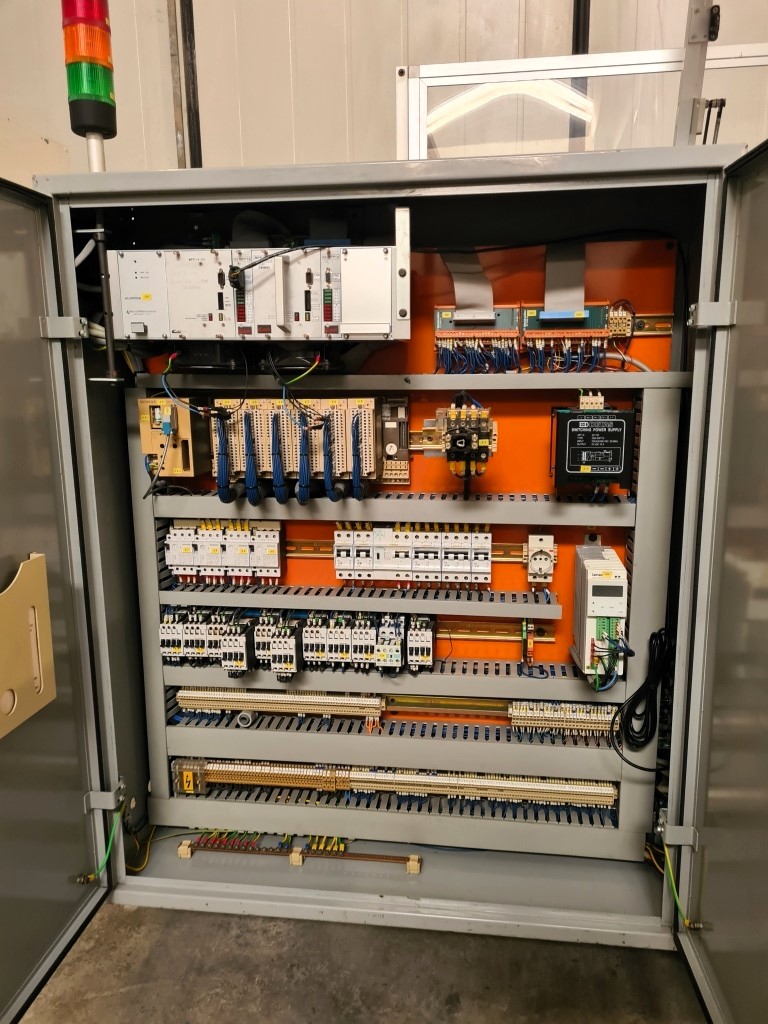

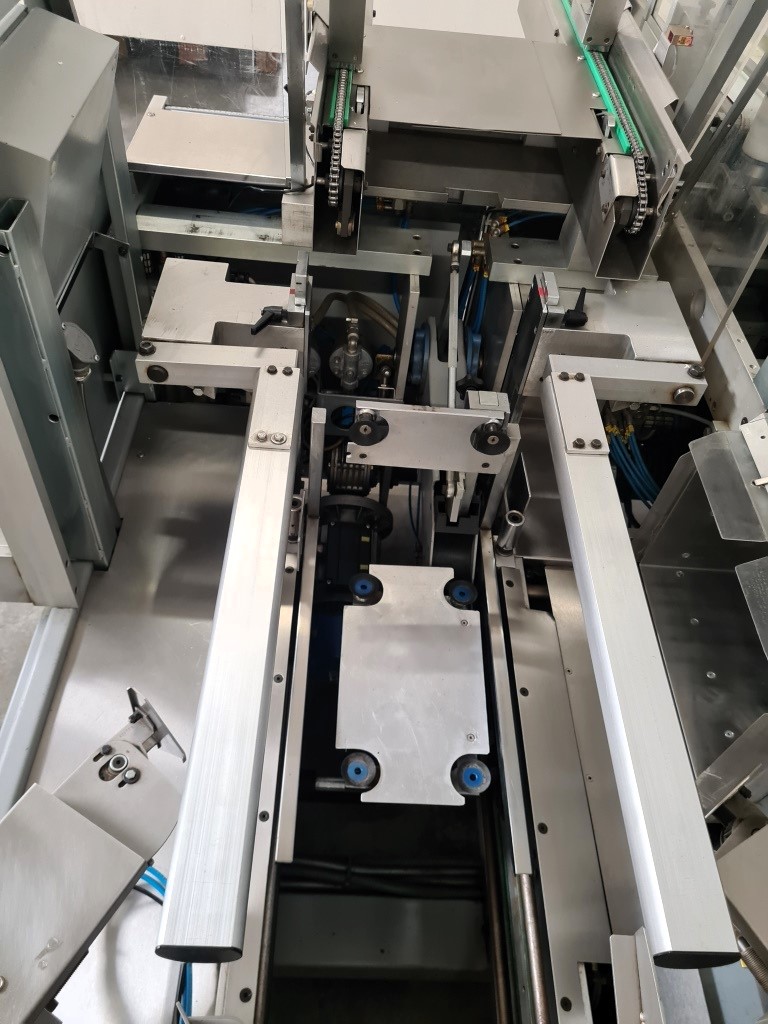

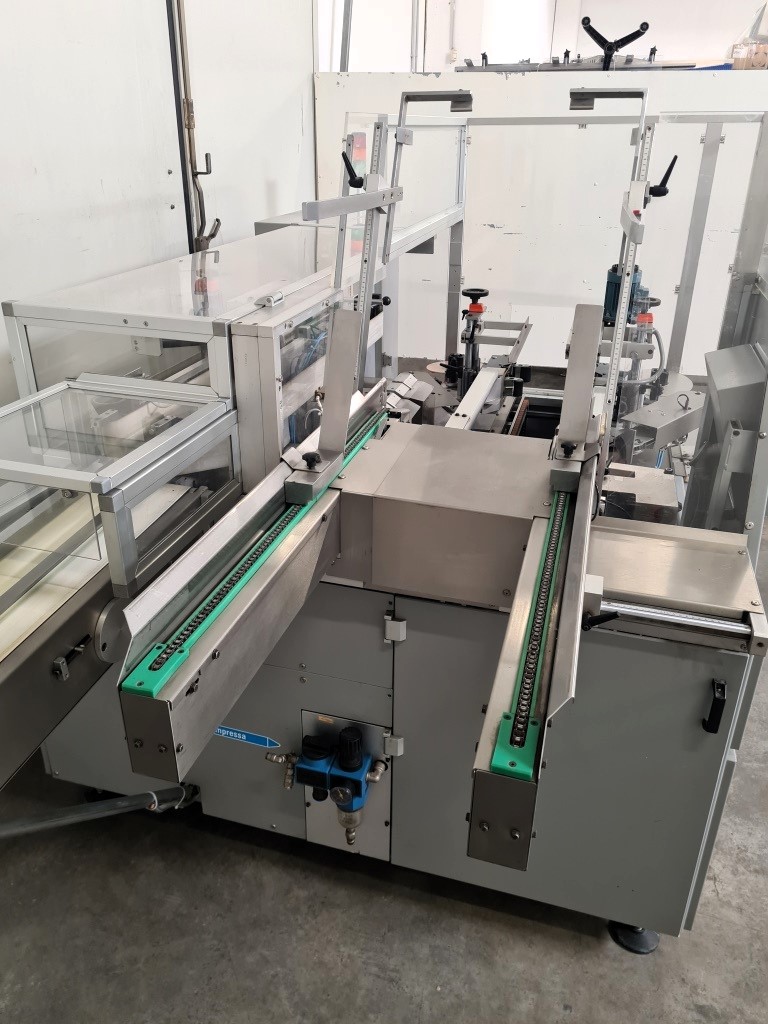

The electrical system, noise and safety protection are conform to European standards. Horizontal cartons magazine facilitates loading. Pick-up arms and forced opening with suction cups ensure perfect squaring of the carton during filling. The product is stacked and introduced into the open carton. The machine proceeds to the closure of the flaps of the carton and according to the configuration to the closure of the carton.

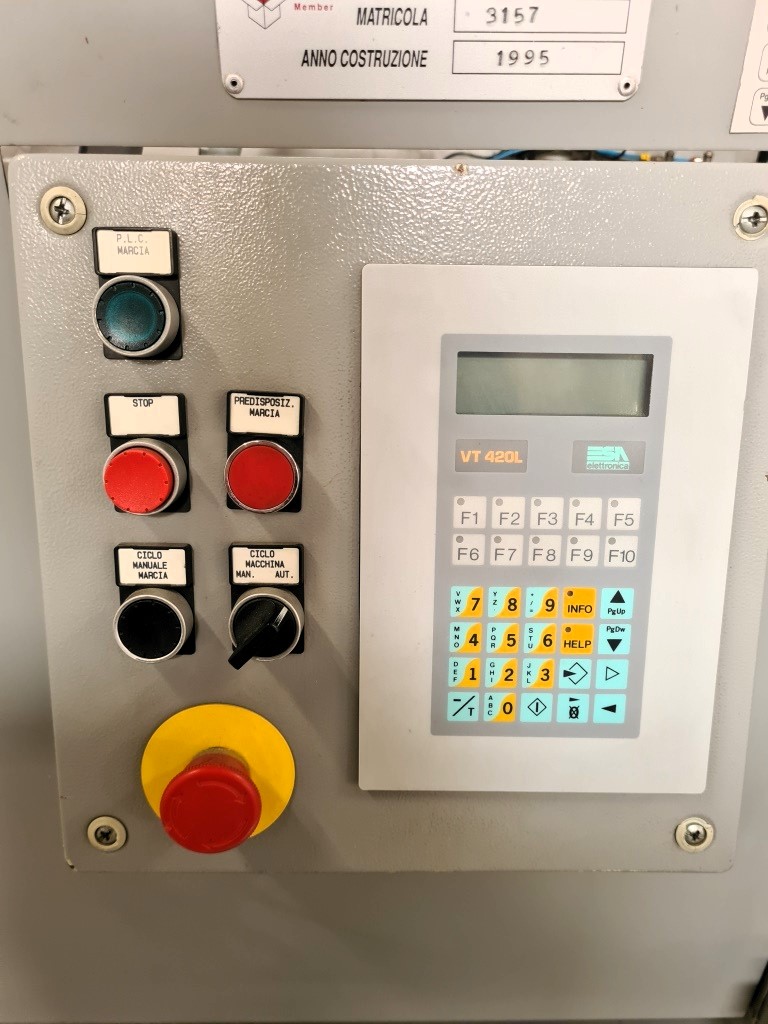

Year: 1995
TECHNICAL DATA
Length mm 3560
Width mm 1770
Height mm 1760
Weight Kg 1000
Electric Frequency Hz 50
Voltage Volt 380
PRODUCTION CHARACTERISTICS
Production speed max. 20 cases/minute
Case format min. mm 215 x 120 x 95
Case format max. mm 500 x 380 x 380
