Description
DESCRIPTION:

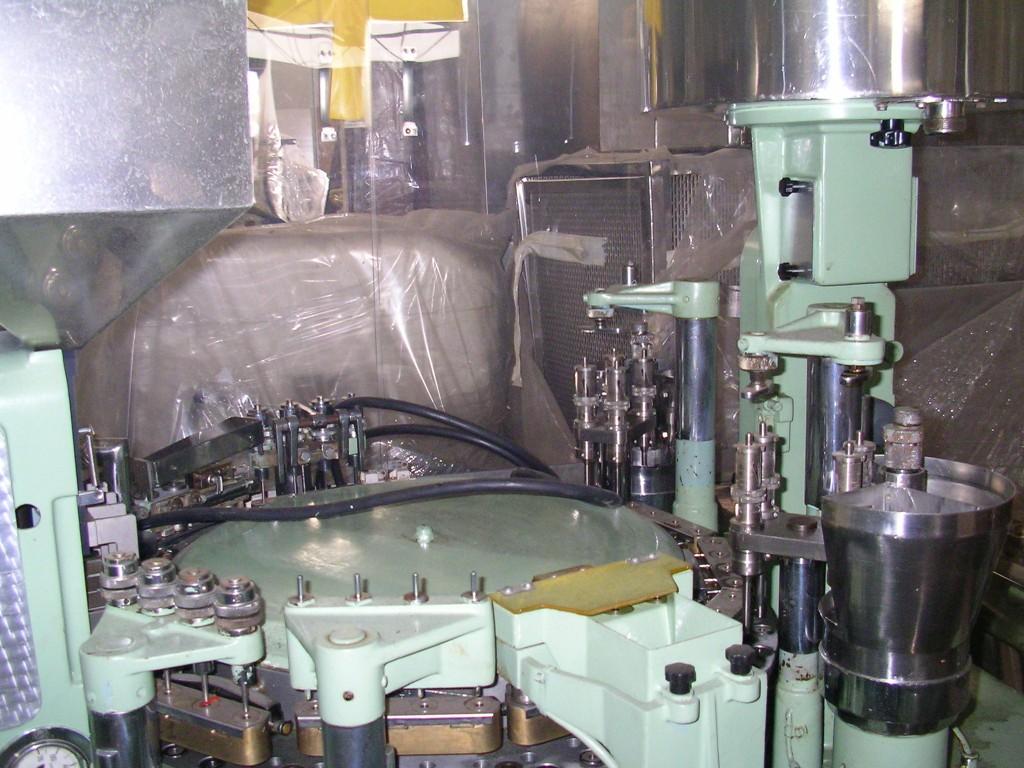

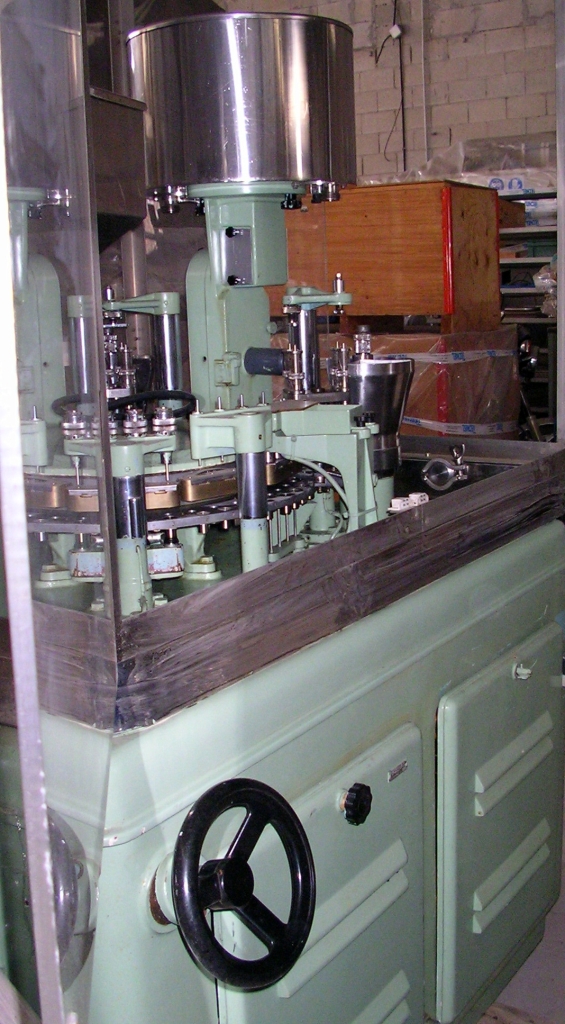

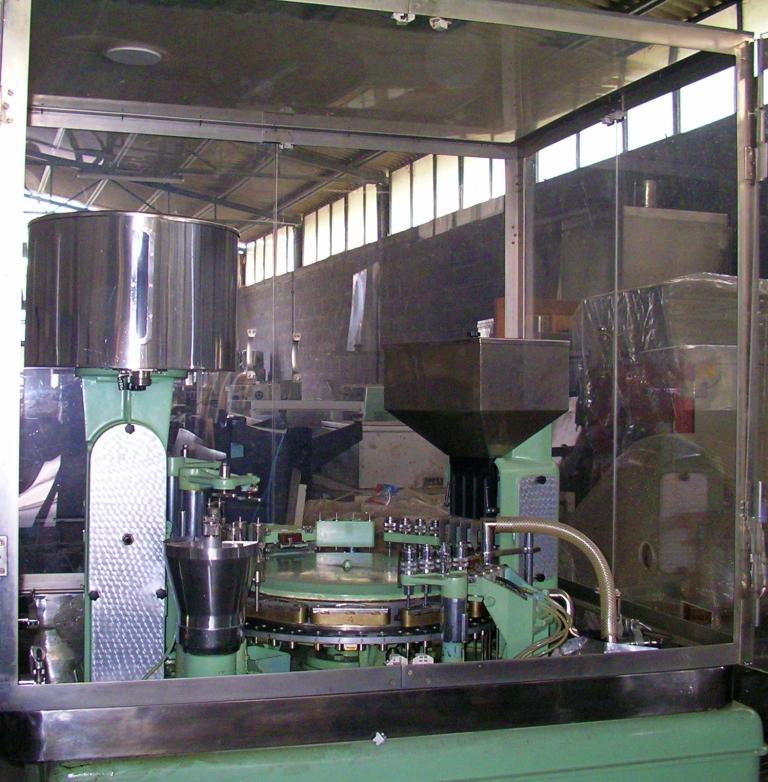

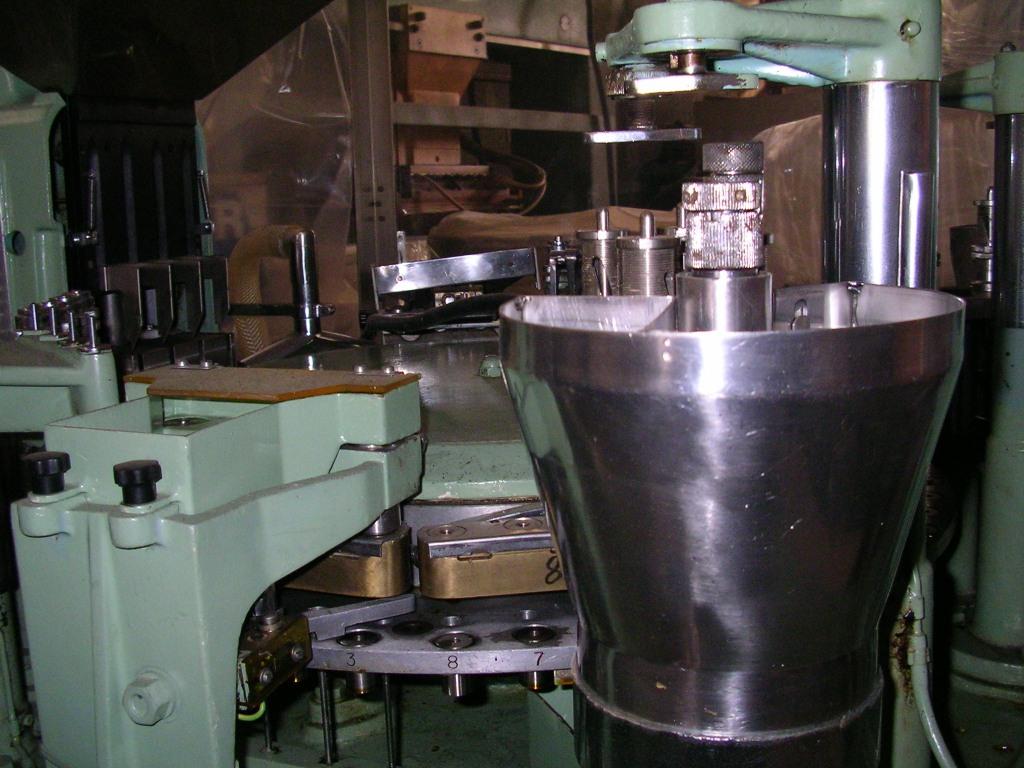

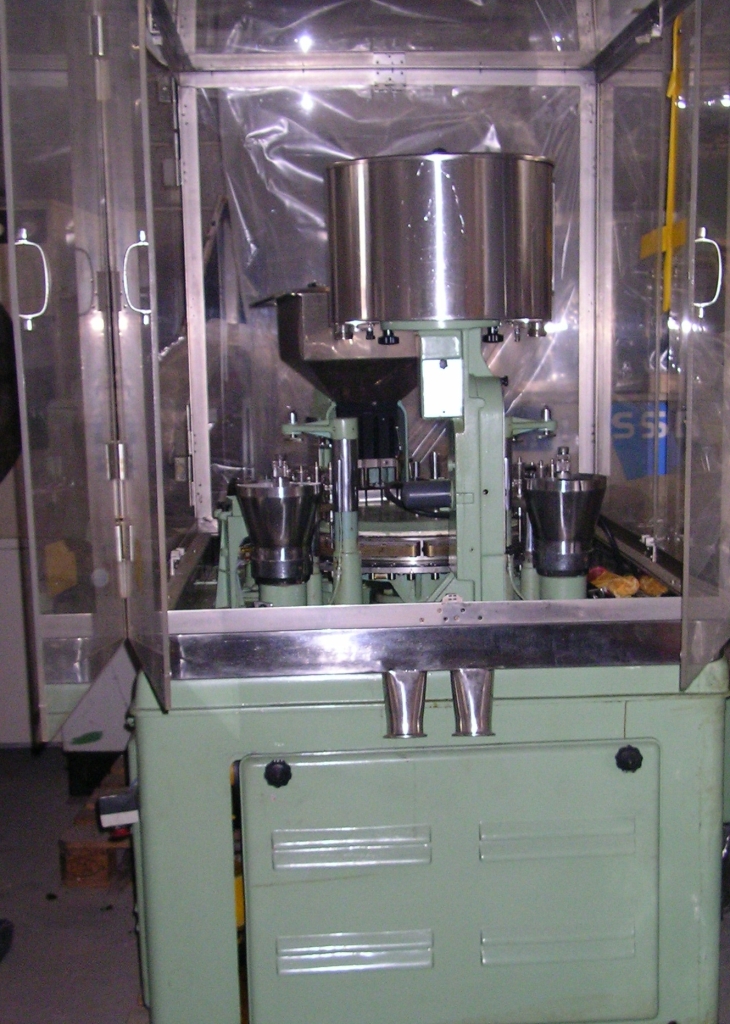

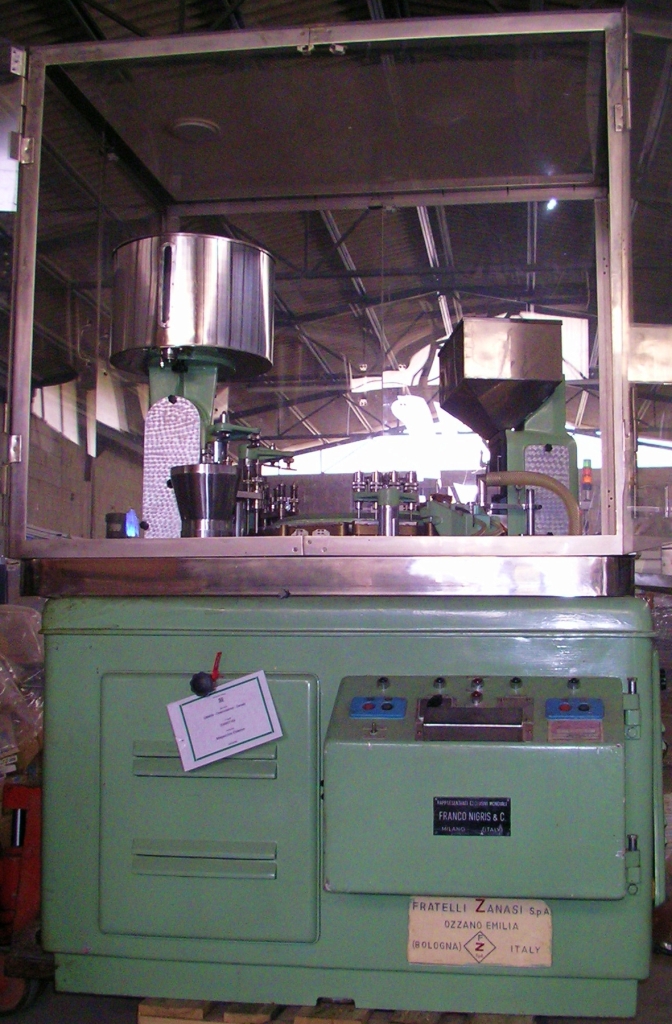

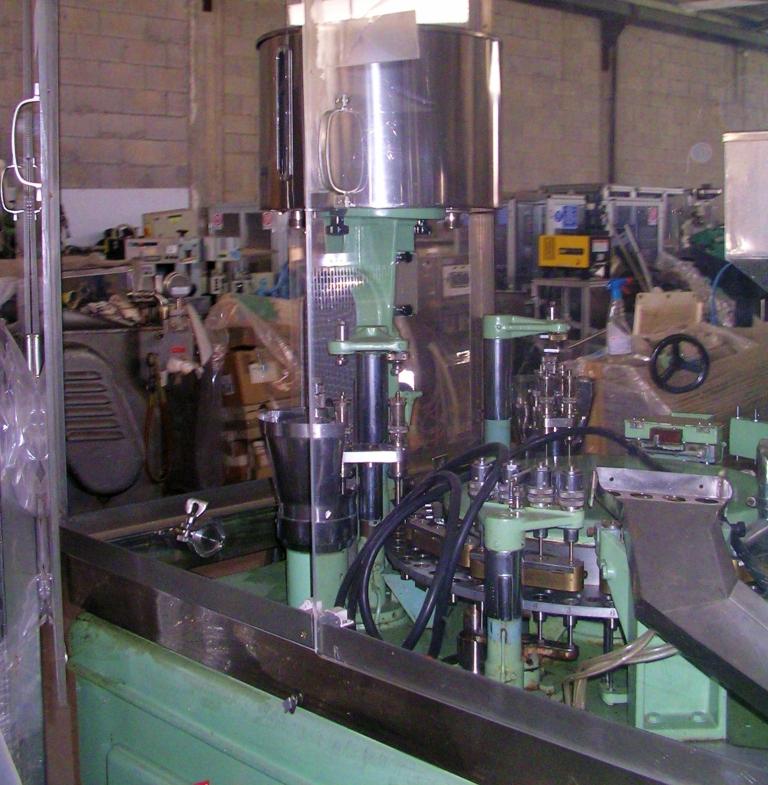

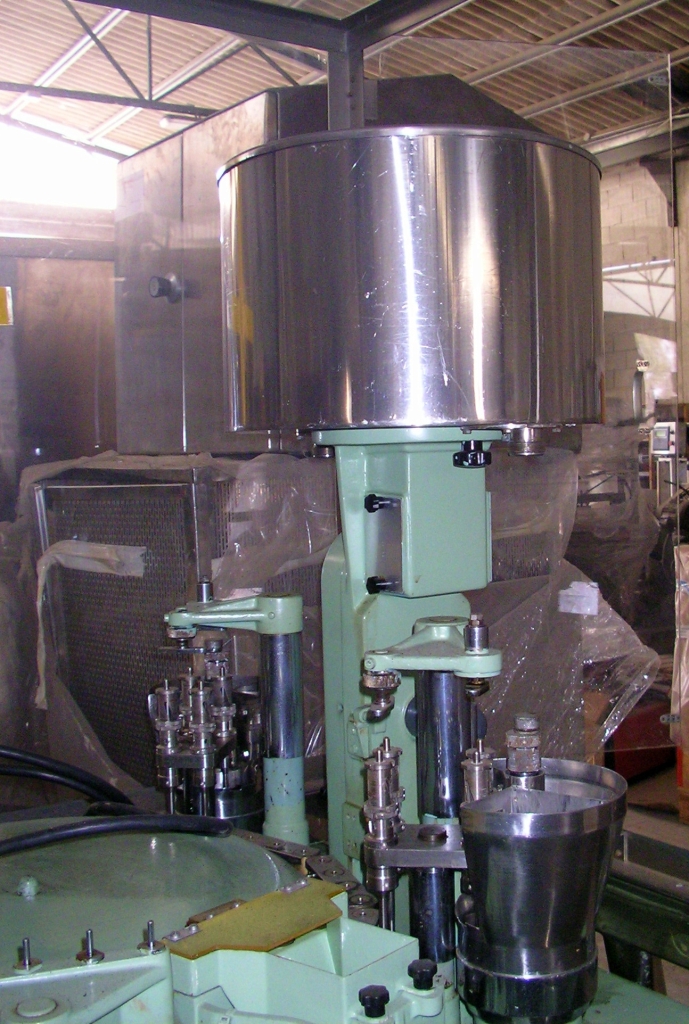

The Zanasi RV – 59 / R is a rotary automatic capsule filling machine able to dose powders into capsules.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices.
MAIN FEATURES:
– Easy access to the working area.
– Low size changeover and cleaning times.
– Quick and secure change, assembly and disassembly of pieces when changing format, or for maintenance reasons.
– Simple construction and ergonomic interface: skilled operators are not required to run this machine.
– Main feeding hopper.
– All stainless steel contact parts.
– Integrated vacuum pump.
– Automatic lubrication.
– Equipped with security hood.
TECHNICAL DATA:
Capsule size 2
n. Dosing hoppers 2
n. Filling stations 4
Max speed Capsules/hour 18,000
Frequency Hz 50
Voltage Volt 415
Current Amp 16
Power Kw 8.5
Net weight Kg 1500
Width mm 1400
Length mm 1500
Height mm 1900
