Description
DESCRIPTION:

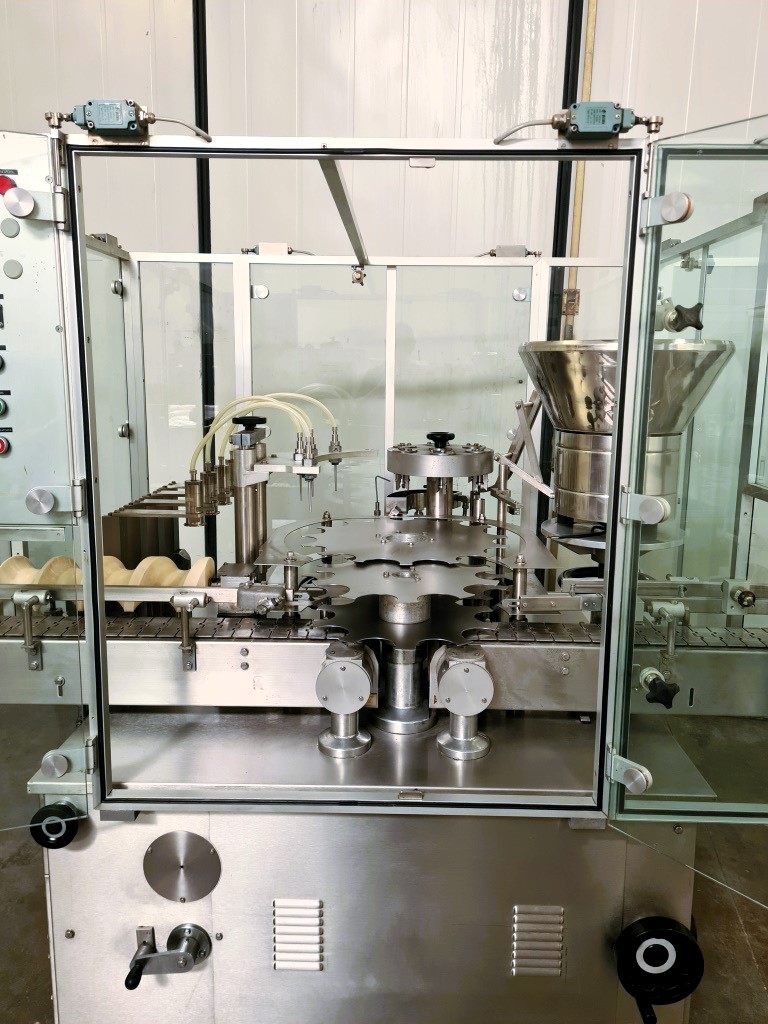

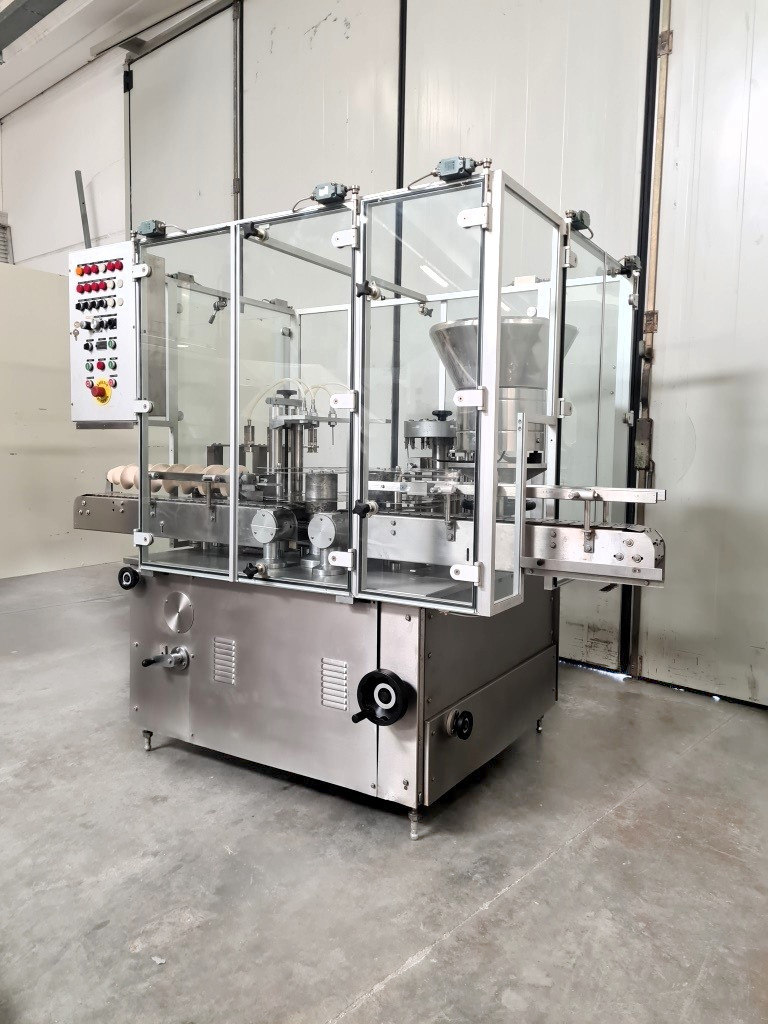

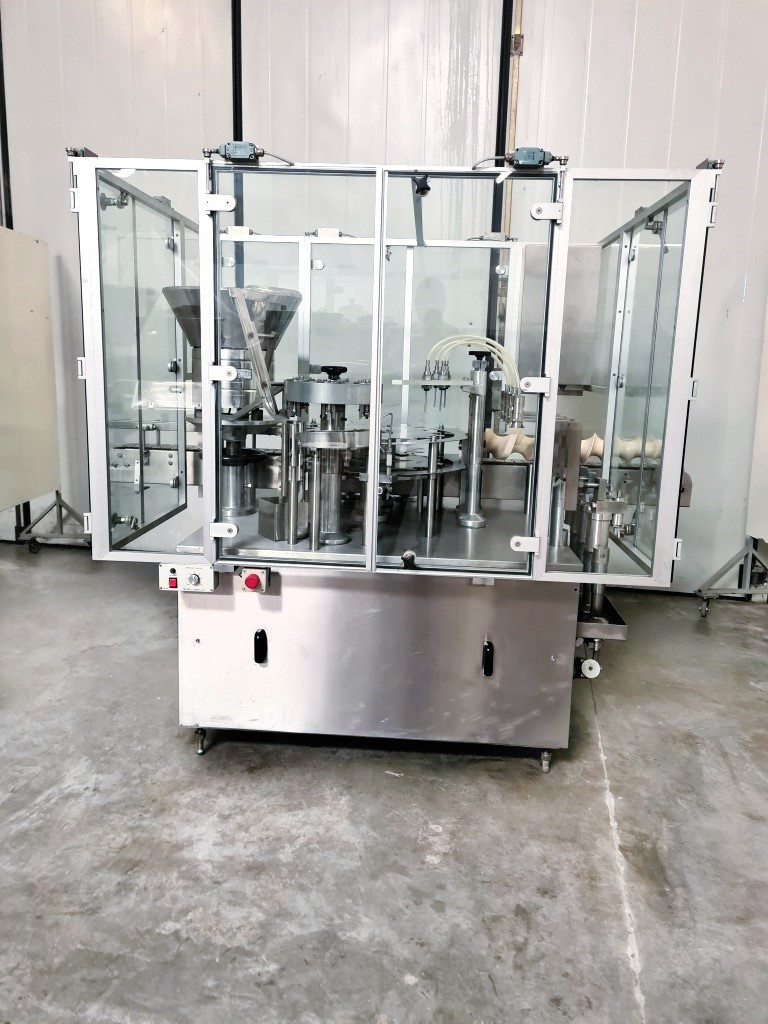

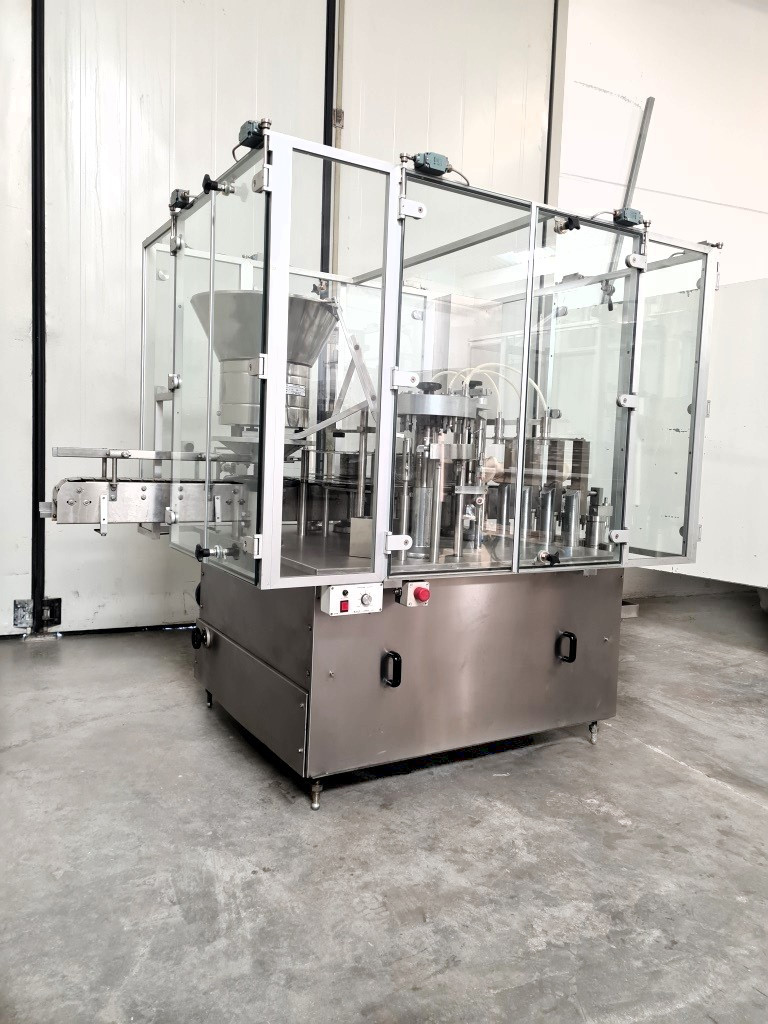

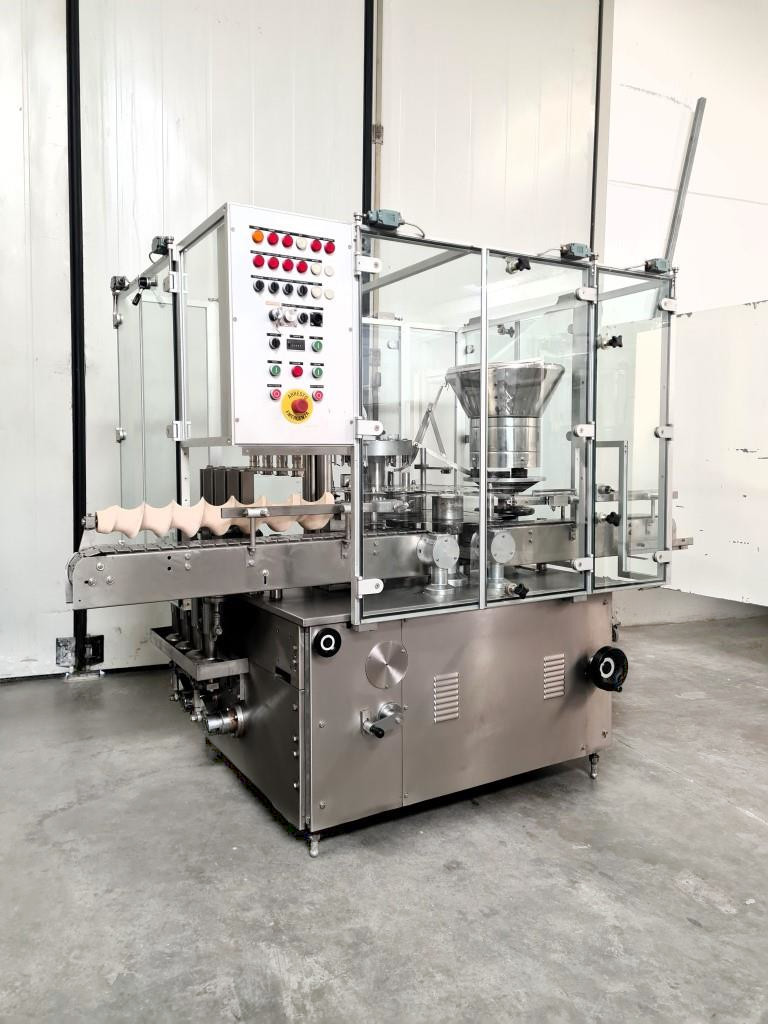

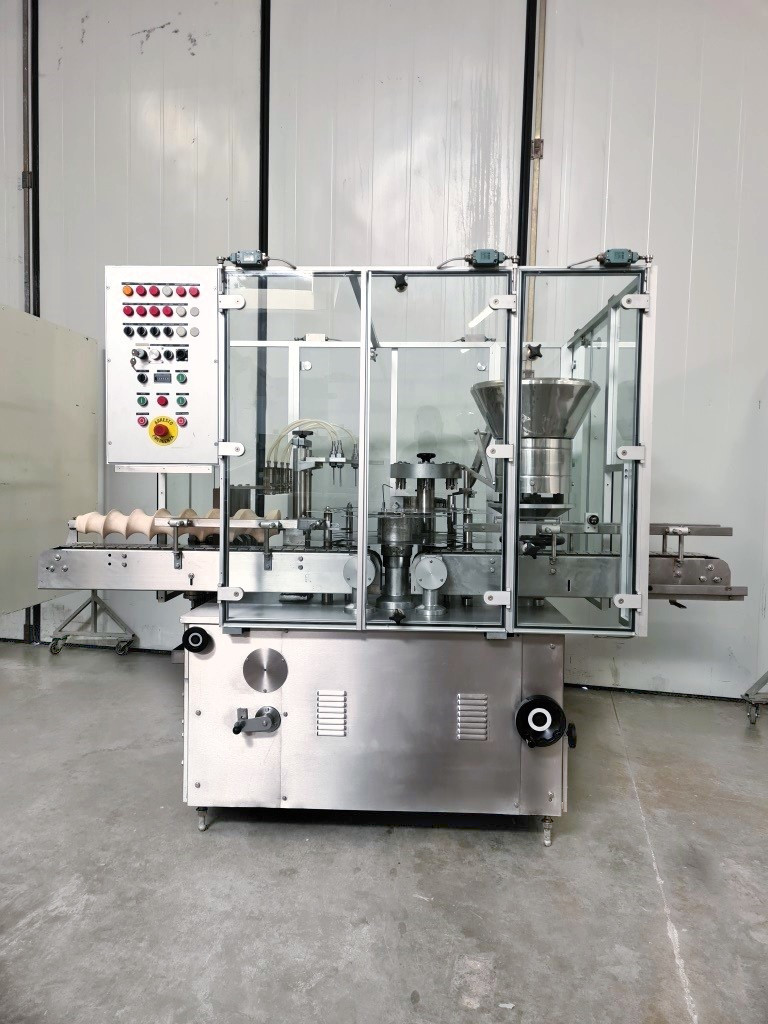

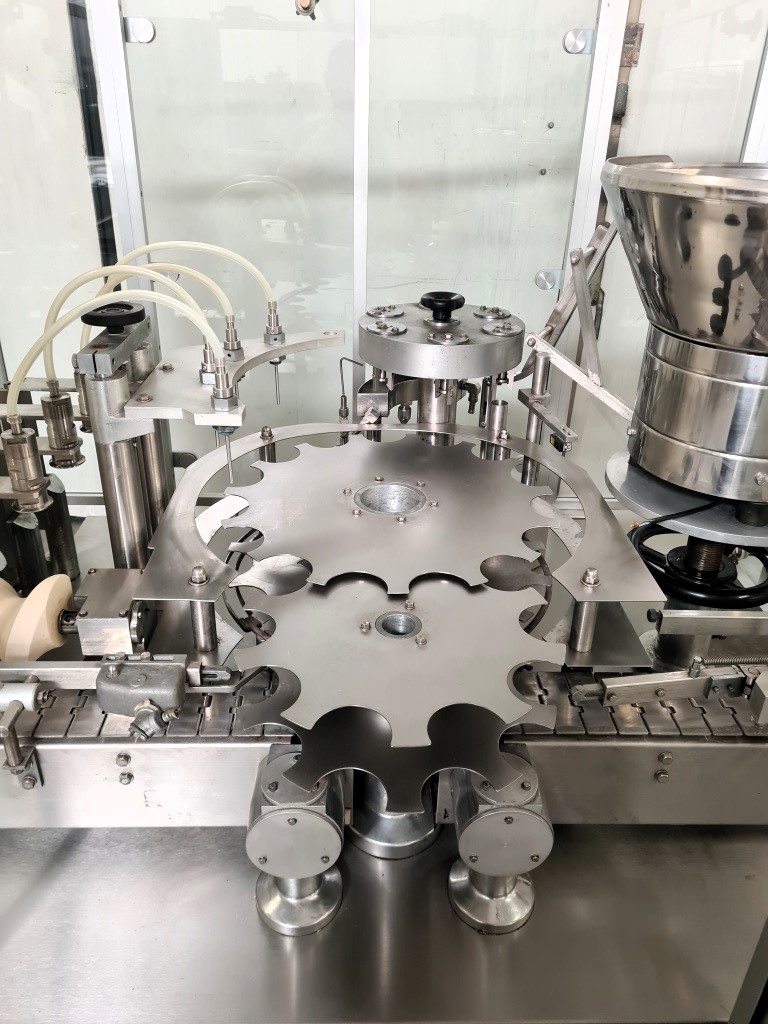

Bottle filling & closing machine for liquids, works with continuous movements, mechanical and automatic operation for filling and closing of bottles. The line is mainly composed of a rotary filling/capping machine and of rotary orientators and feeders. It is suitable for the treatment of all kinds of cosmetic products and is designed to handle a wide range of containers. Highly flexible and designed with constructive modularity these machines are very well known for their robustness and reliability.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:

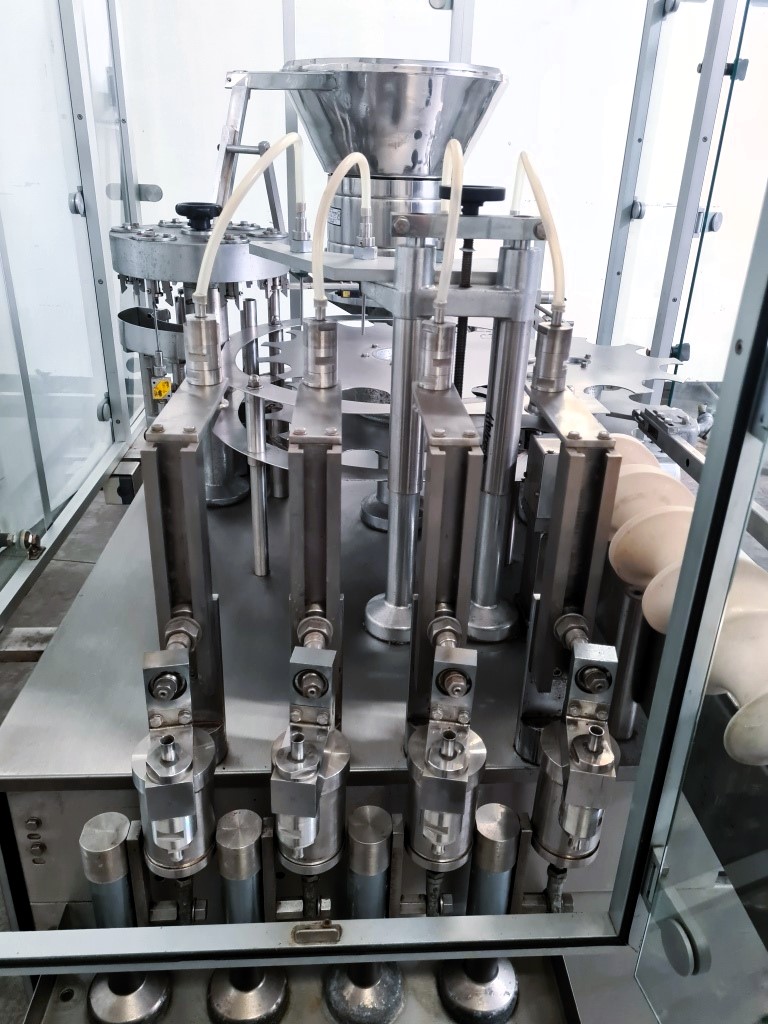

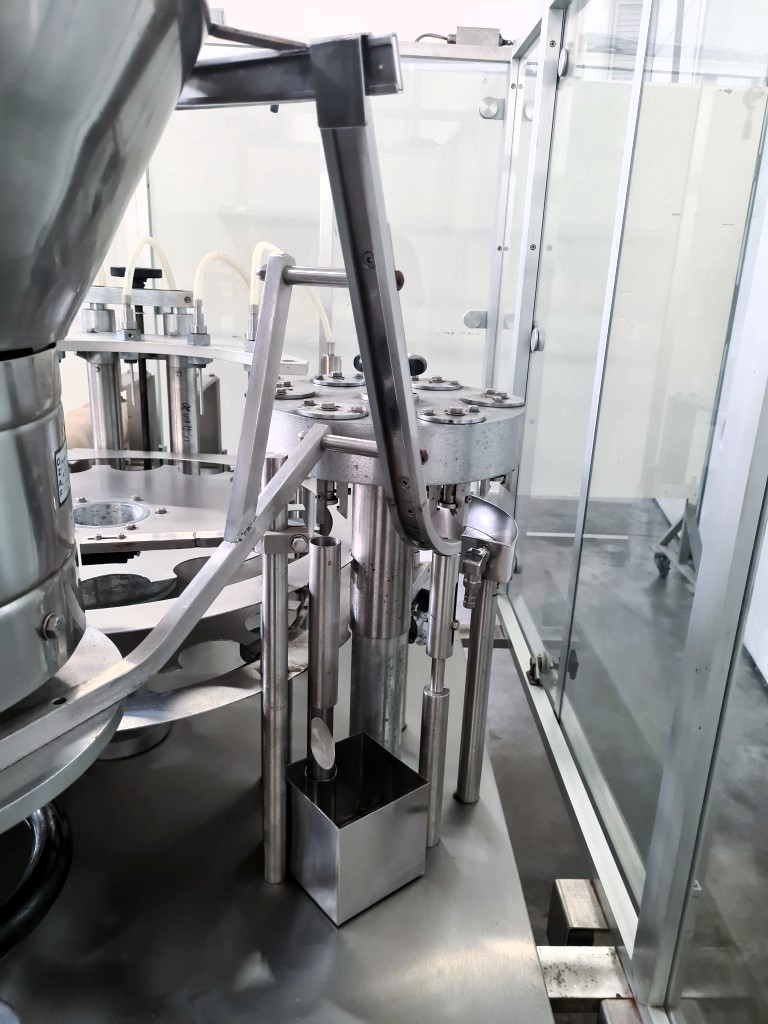

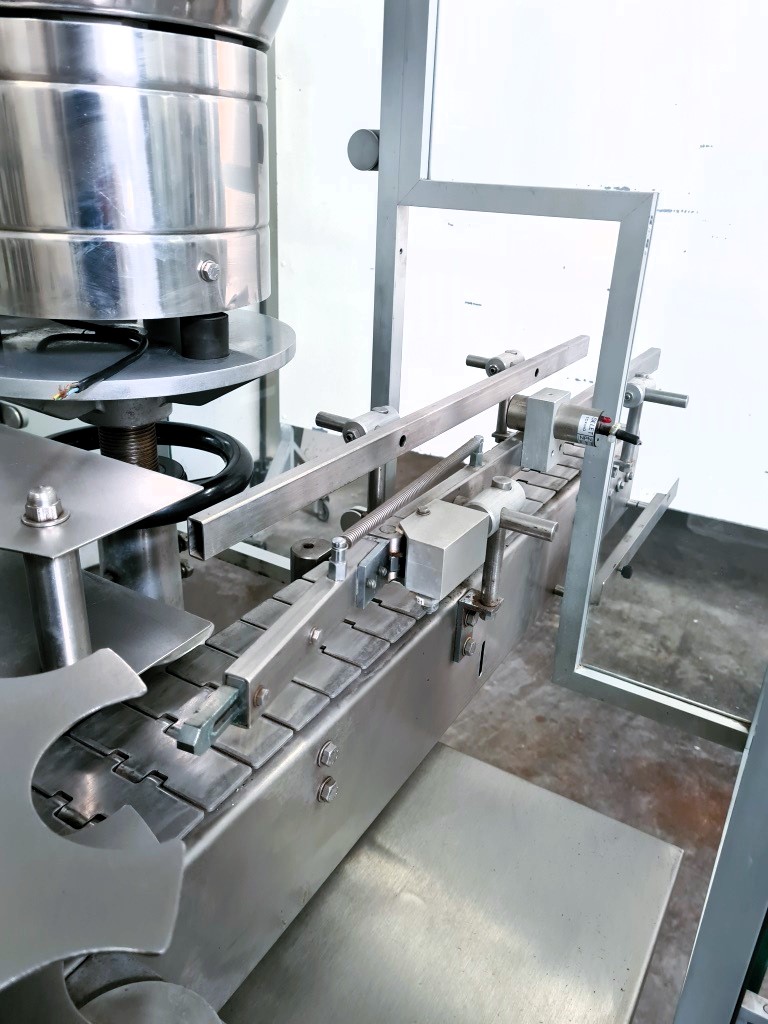

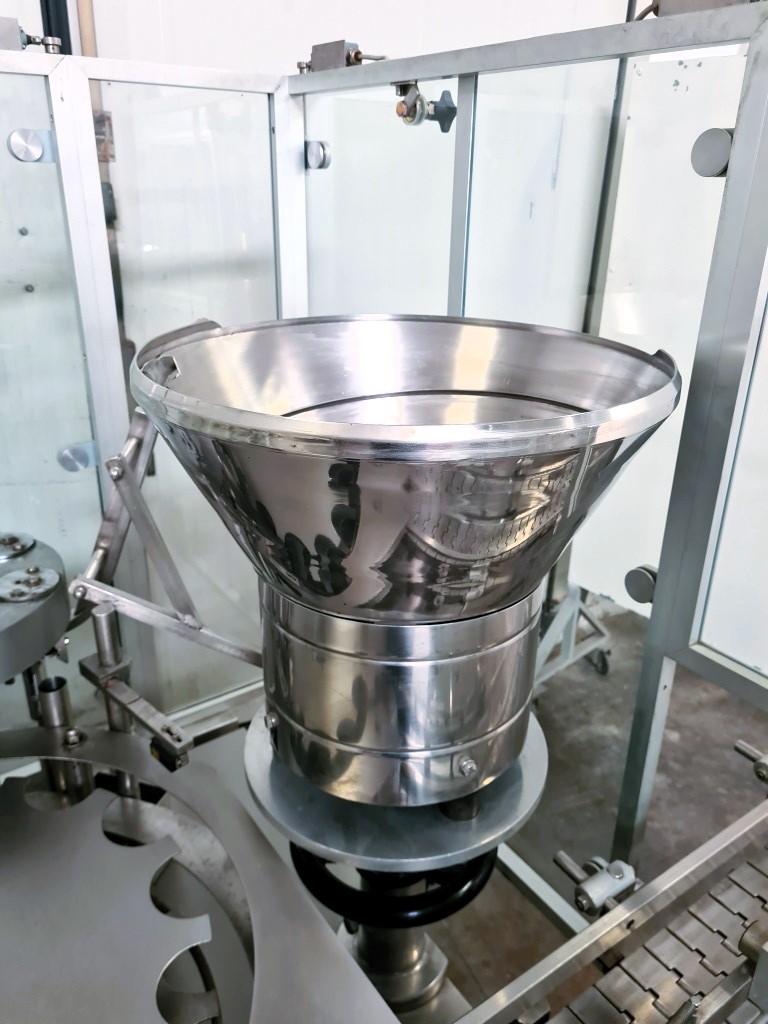

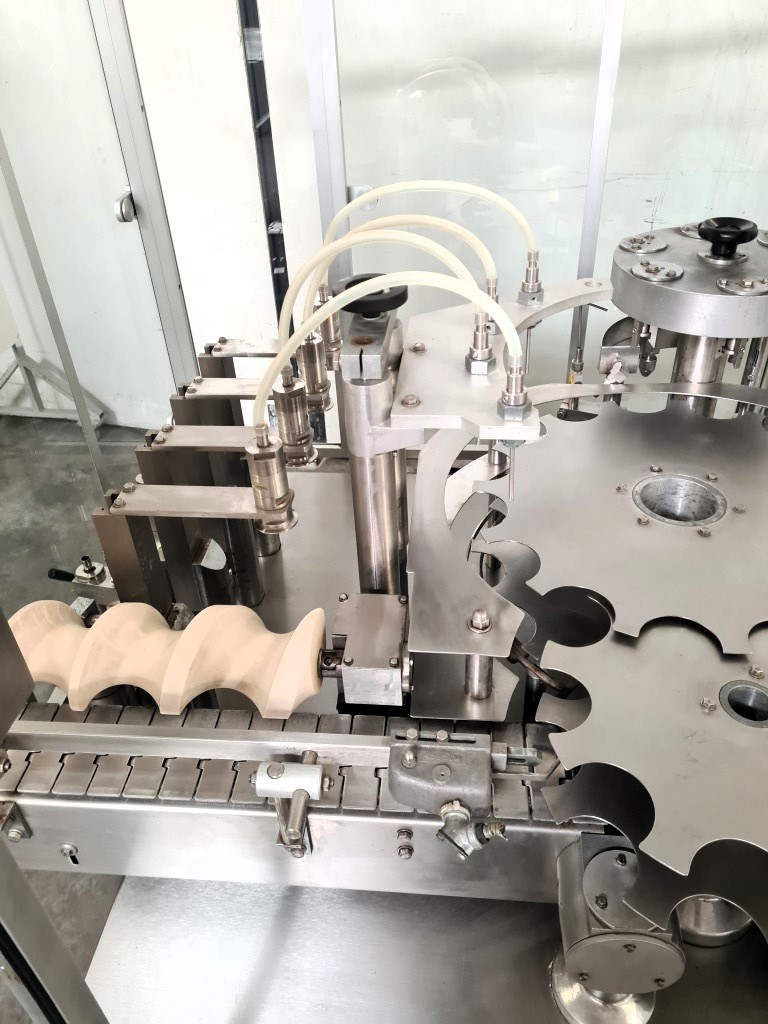

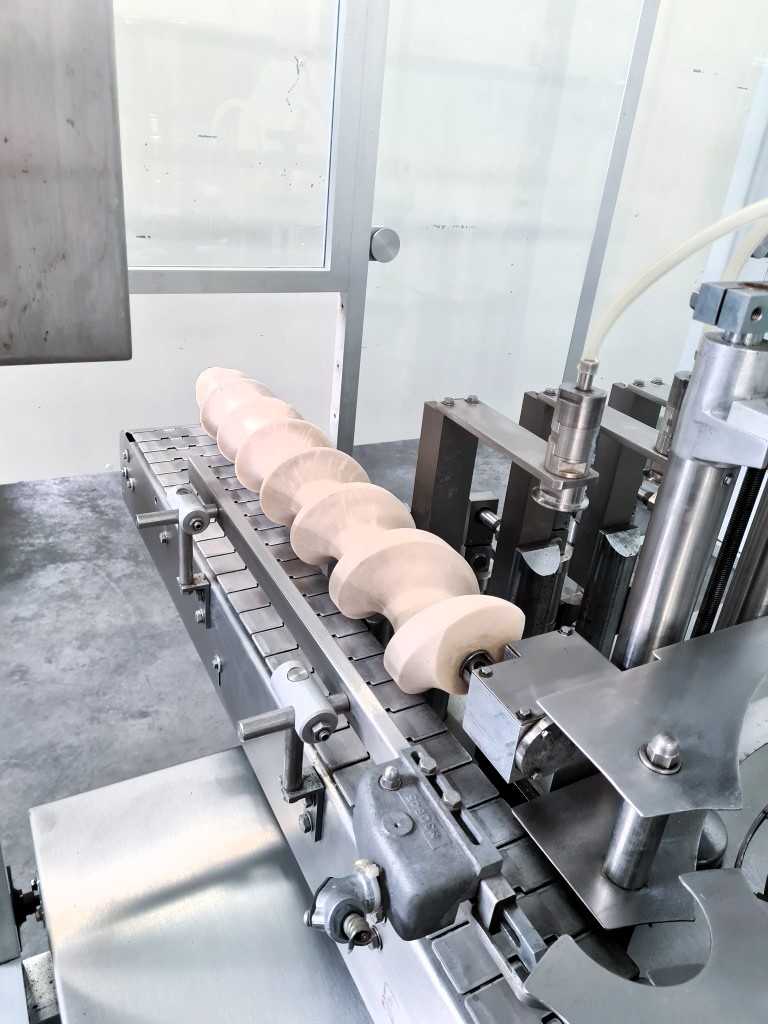

Constructive modularity, easy size change-over and compact overall design. The technological solutions, the quality of materials and ease of use are the elements that ensure the operational reliability of this machine. The caps and the bottles are fed to the filling machine after which the individual bottles are positioned to be filled. Afterwards the bottles arrive at the filling station equipped with dosing syringes where they are filled and then proceed towards the closing station where they are closed. Further on the bottles filled and closed arrive to the discharge conveyor belt that feeds them directly to the next machine. There are 4 filling stations and 6 closing stations for pressure caps.
TECHNICAL DATA
Dimensions mm 2300 x 1400 x 1820
Weight Kg 1100
Bottle format installed dim. mm 75 diam. x 200 h

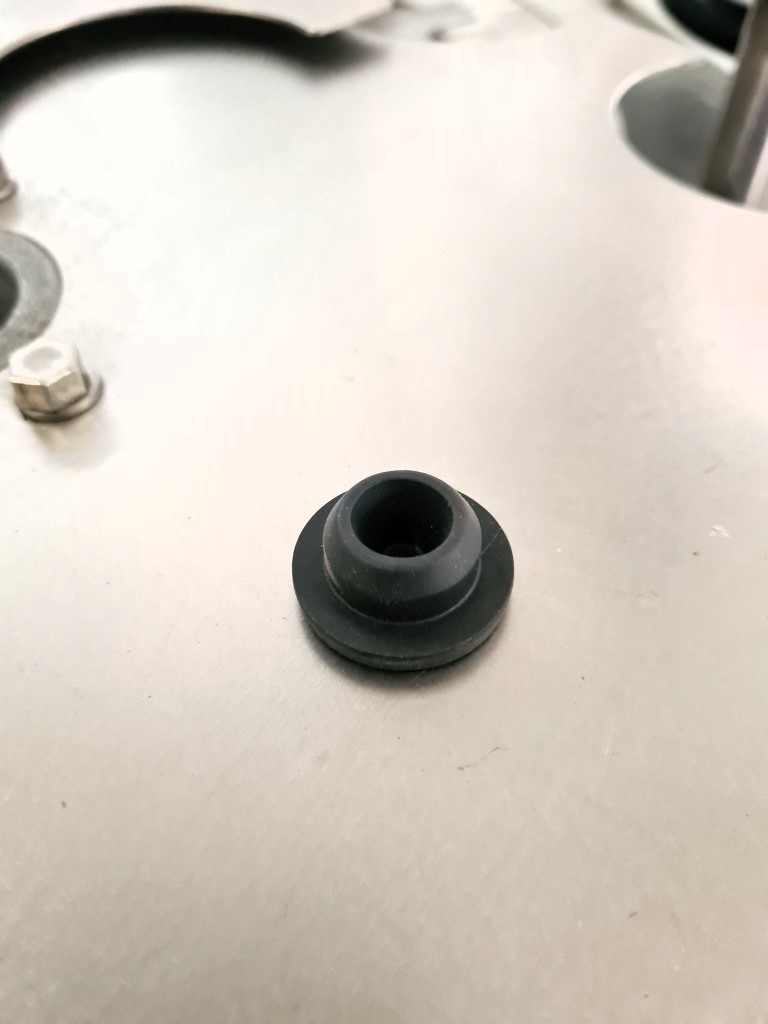

Current cap format external dim. mm 20
