Description
DESCRIPTION:

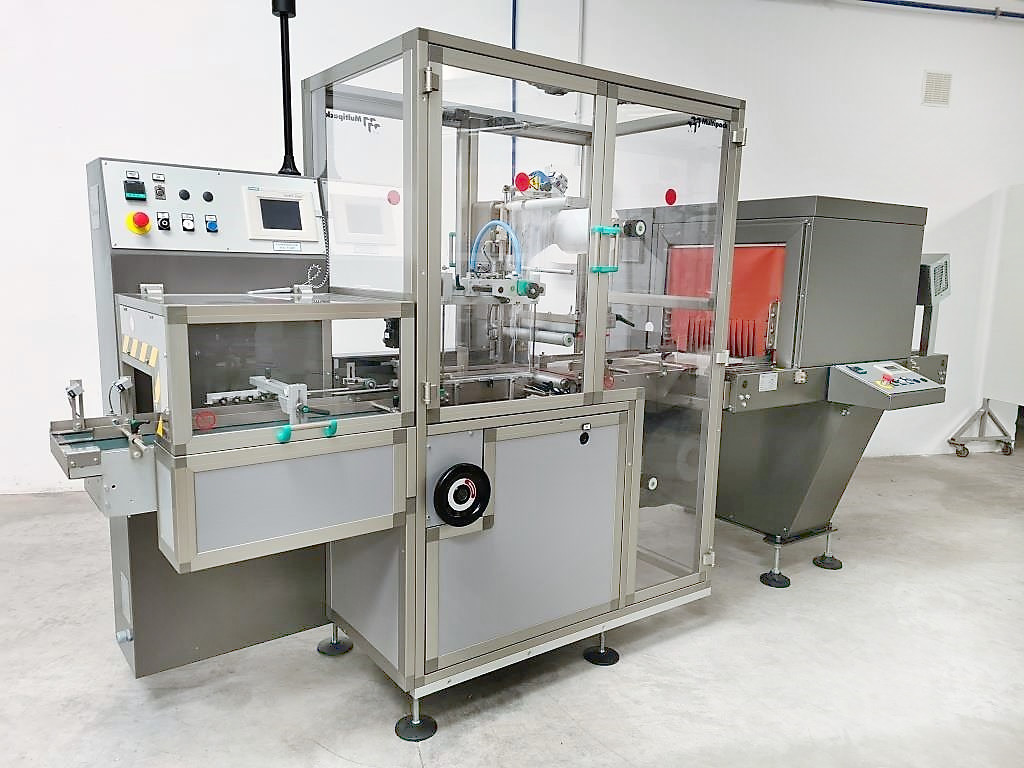

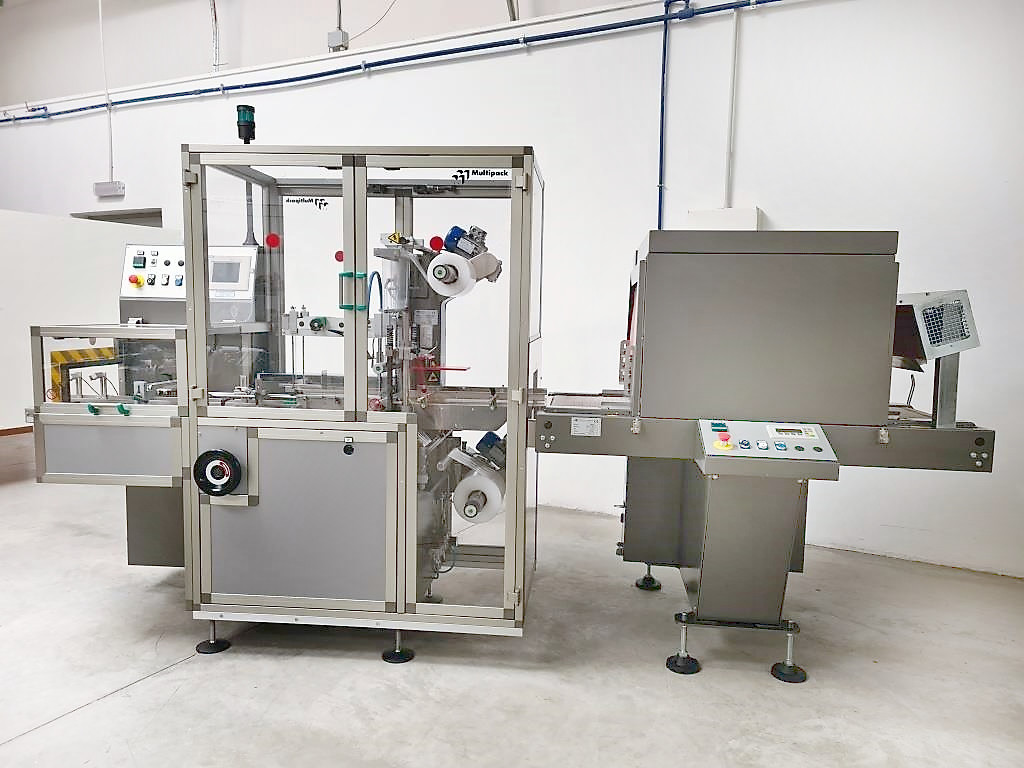

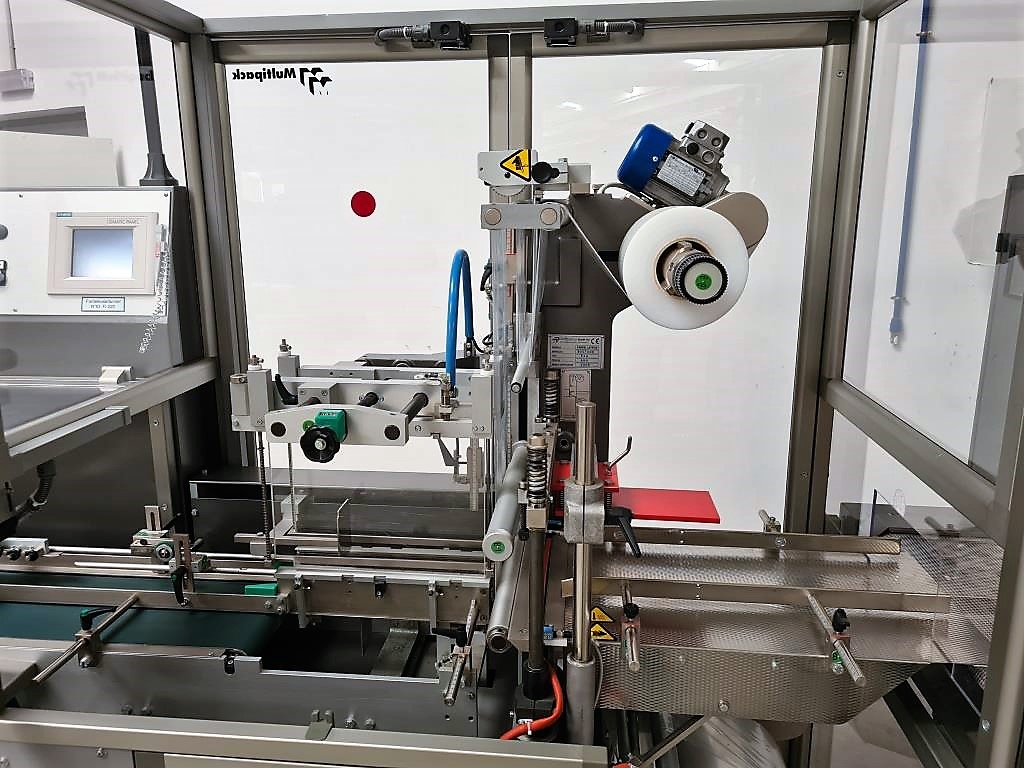

Automatic shrink bundler machine, suitable to bundle the product using stretchable heat shrinkable film, which guarantees high productivity, reliability, accuracy in bundling and easy use. Its original functioning criterion, along with its simple manufacturing concepts, are particularly appreciated by its users. The F40 adopts the most up-to-date manufacturing technologies. It is suitable to carry out various packaging solutions as well as a wide range of bundle patterns. Different types of products and collations can be handled with the F40.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:

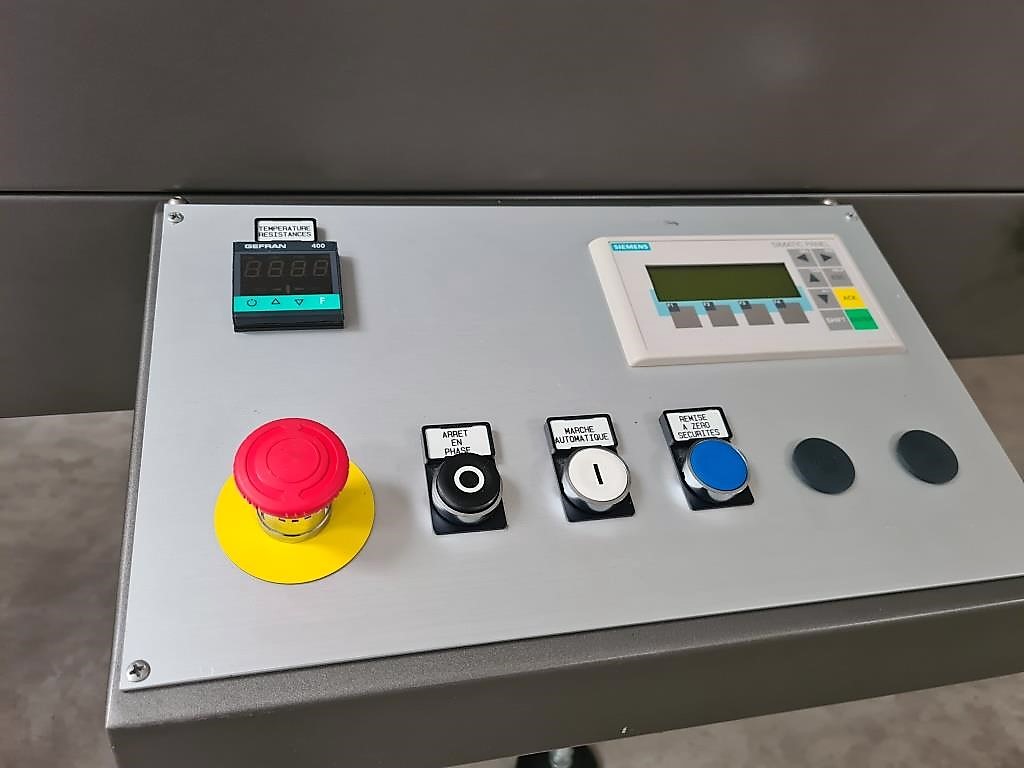

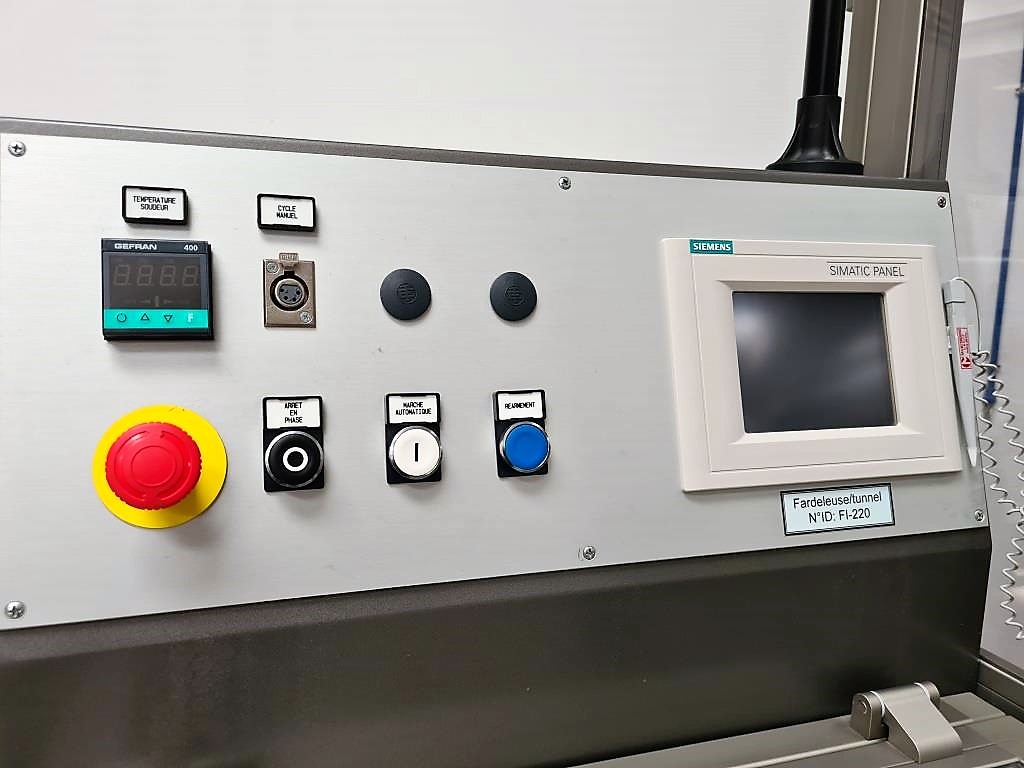

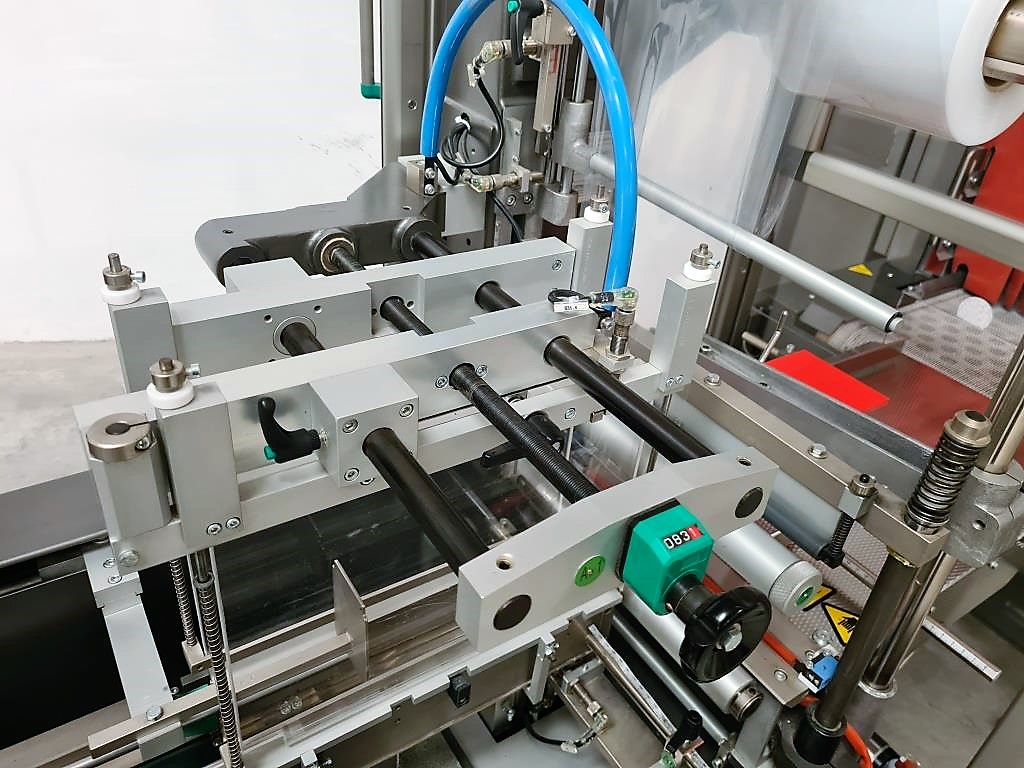

The bundle is kept in an orderly manner during sealing operations, and sealer temperature is constantly checked by thermo-regulators. A suitable sealer cooling system allows working even at a very high speed. The individual cartons are fed into the machine. When the desired number of cartons are in the hopper the pack is pushed through the wrapping material. The upper sealer bar lowers and the wrapping material is sealed and cut. The film is unwound by two motorized wheels, which keep a steady tension and can be adjusted according to the customer’s need. The product is bundled without being pushed against the film. Setting of main data is performed through an operator’s functional display. Easy and fast size changeover. Main movements are protected and controlled with indication on control panel and machine stop upon emergency conditions.
Year of construction: 2008
TECHNICAL DATA
Dimensions mm 3400 x 1300 x 1900
Weight Kg 1100
Voltage Volt 400
Frequency Hz 50
Power Kw 1,5
PRODUCTION CHARACTERISTICS
Bundle width 30-350 mm
Bundle height 12-200 mm
Bundle length 50-300 mm
Max. production speed 17 bundles/min.
