Description
DESCRIPTION:

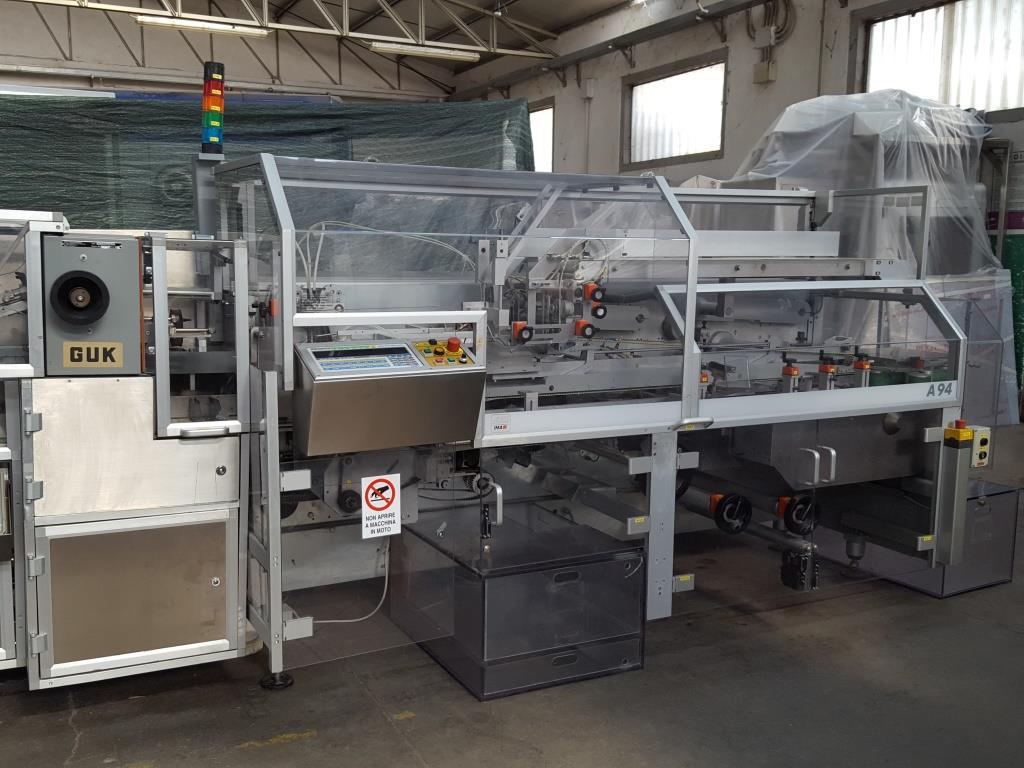

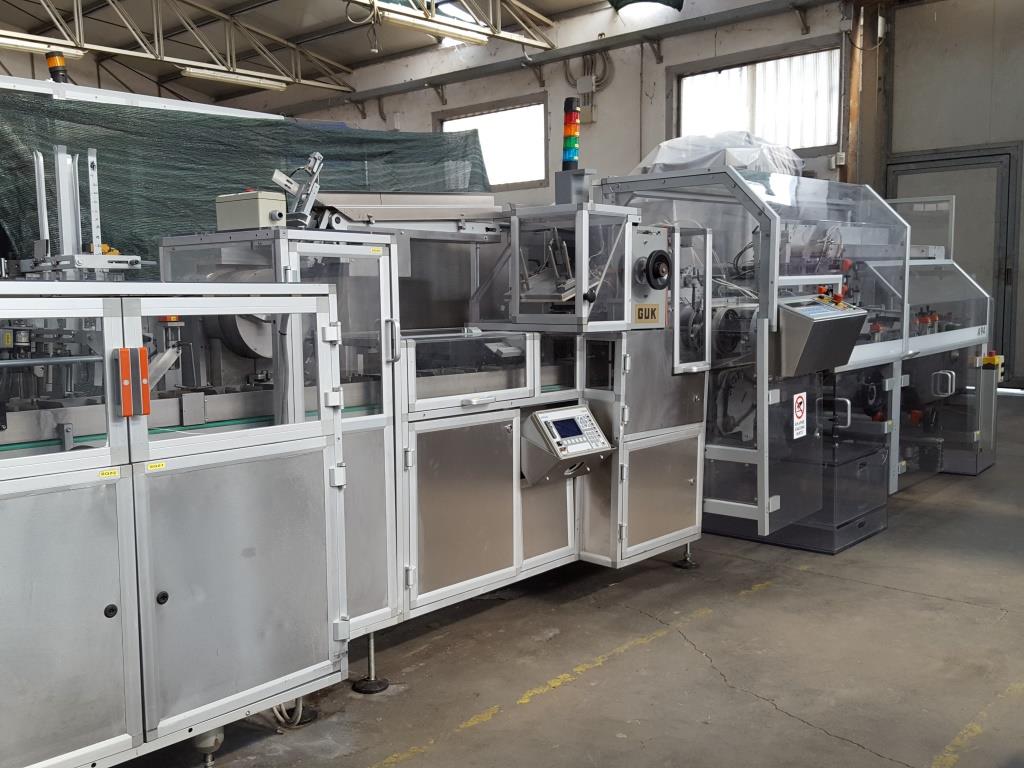

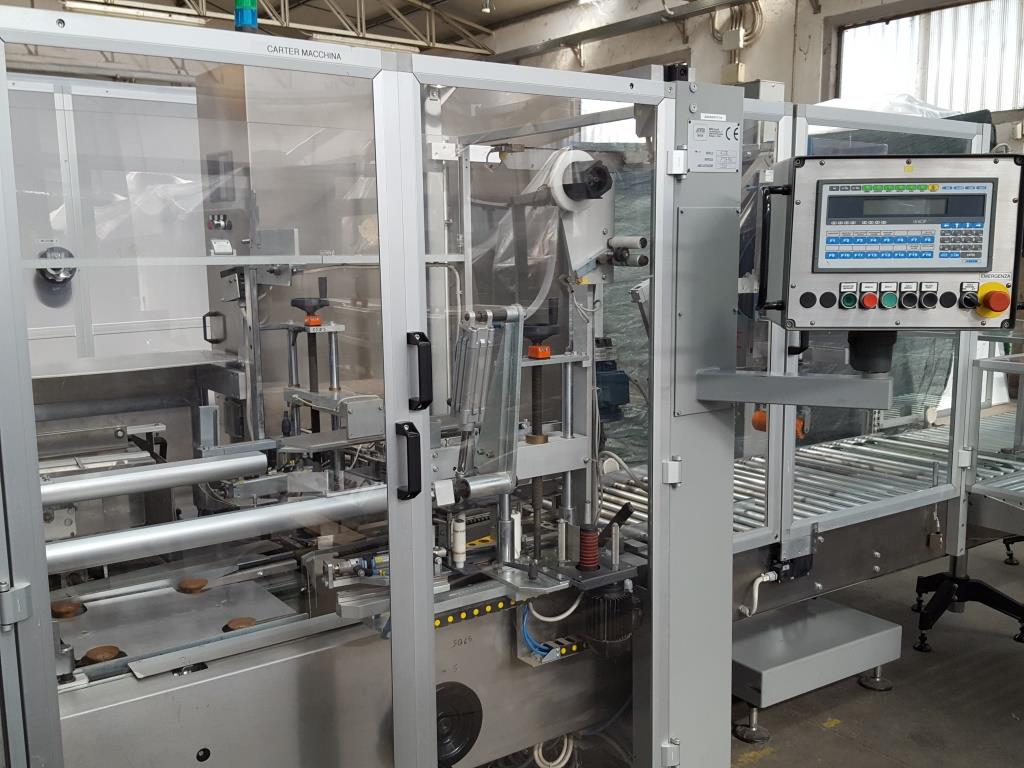

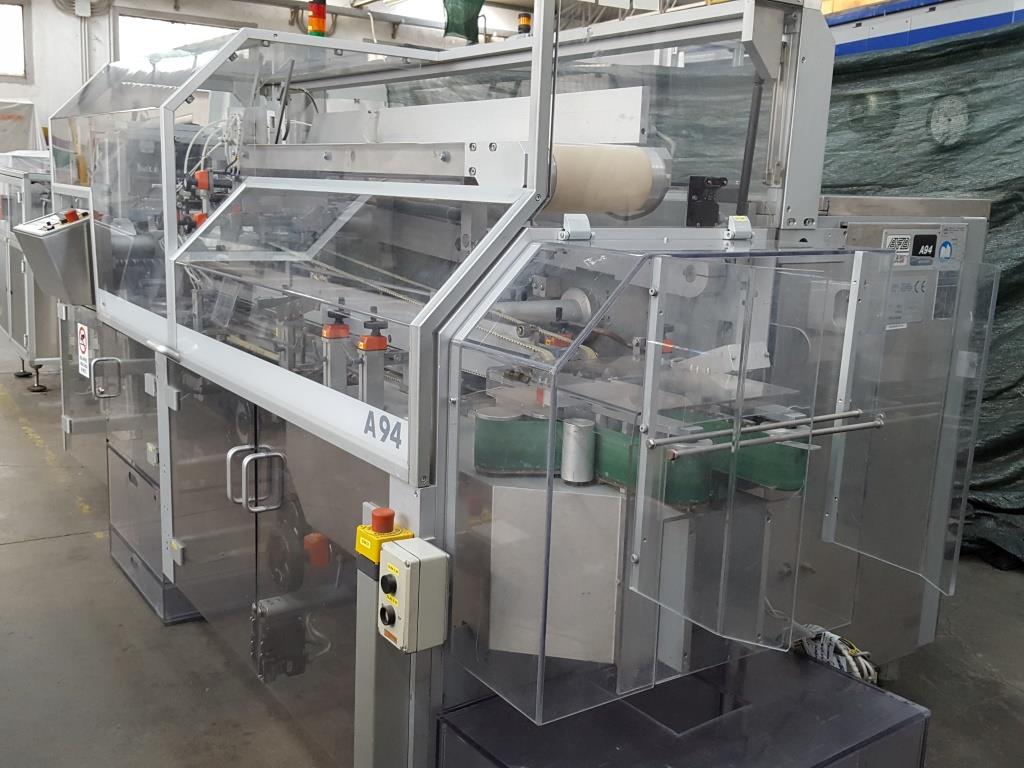

The A94 fully automatic continuous motion horizontal cartoner provides all the benefits of the most advanced production technology and constant research in this particular sector of automatic packaging. They combine the advantages of reduced overall dimensions with greater sturdiness and improved reliability presented in an attractive modern line. A94 is an accessible, reliable and efficient cartoner ensuring quiet running at high speed. Its design offers a balcony structure allowing fast access and easy cleaning. Its carton prebreaking and opening system combined to extrapositive carton handling by multiple belts ensures best carton forming control. Automatic Horizontal Case Packer, machine for the final packaging in cardboard, made in a way to ensure reliability, versatility and space saving. A really small size equipment with high production features. A machine of new conception particularly suitable for the insertion of individual cartons grouped in cases or pre-glued trays with standardized dimensions even of poor quality.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:

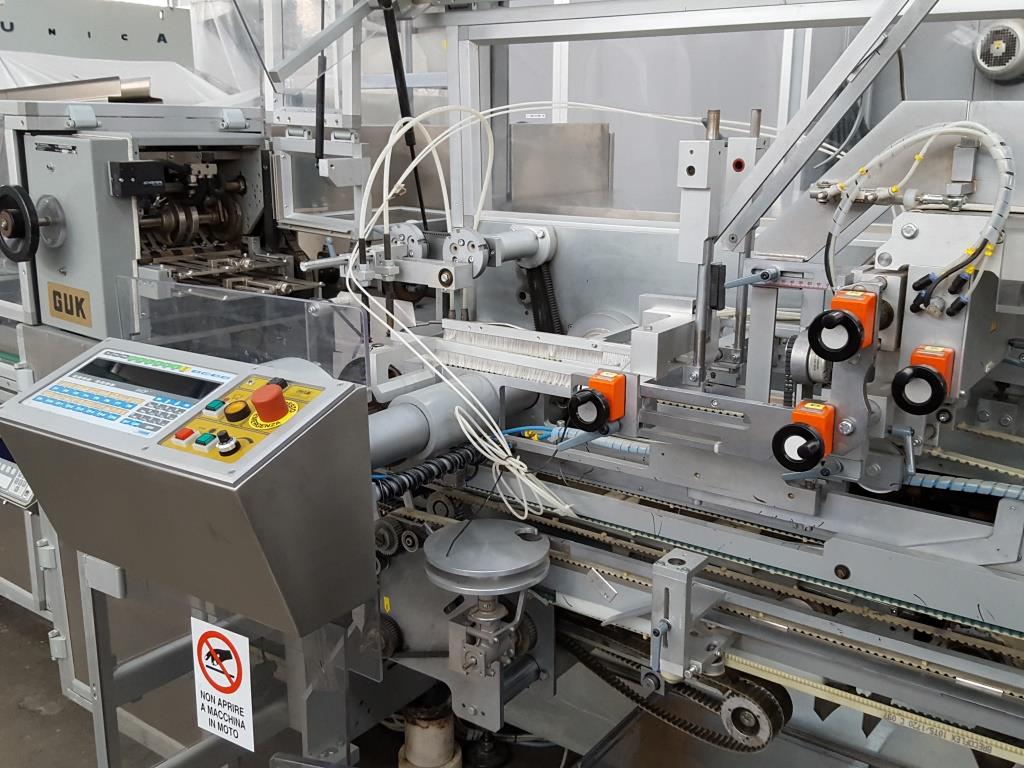

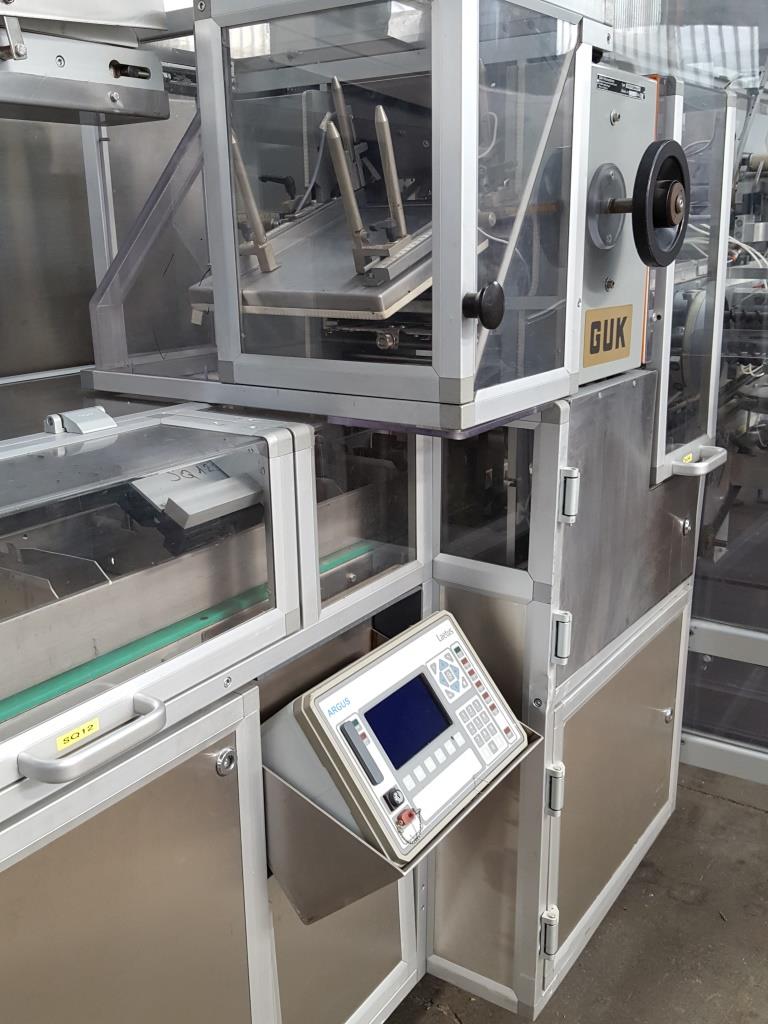

Cartoner – The fast reproducible changeover, dependable operation make it the best choice for long runs and multiple shifts. The A94 can handle a wide range of product feeding groups (for bottles, squeezable or rigid tubes, blisters, trays, vials, pouches, syringes, spoons, etc) and various tuck closing options. The unit is now working with tuck-in flaps with glue dots. Complete with: GUK prefolded leaflet feeder. FA21/4 with 4 folding pockets. GR A9442 electromechanical blister feeder.

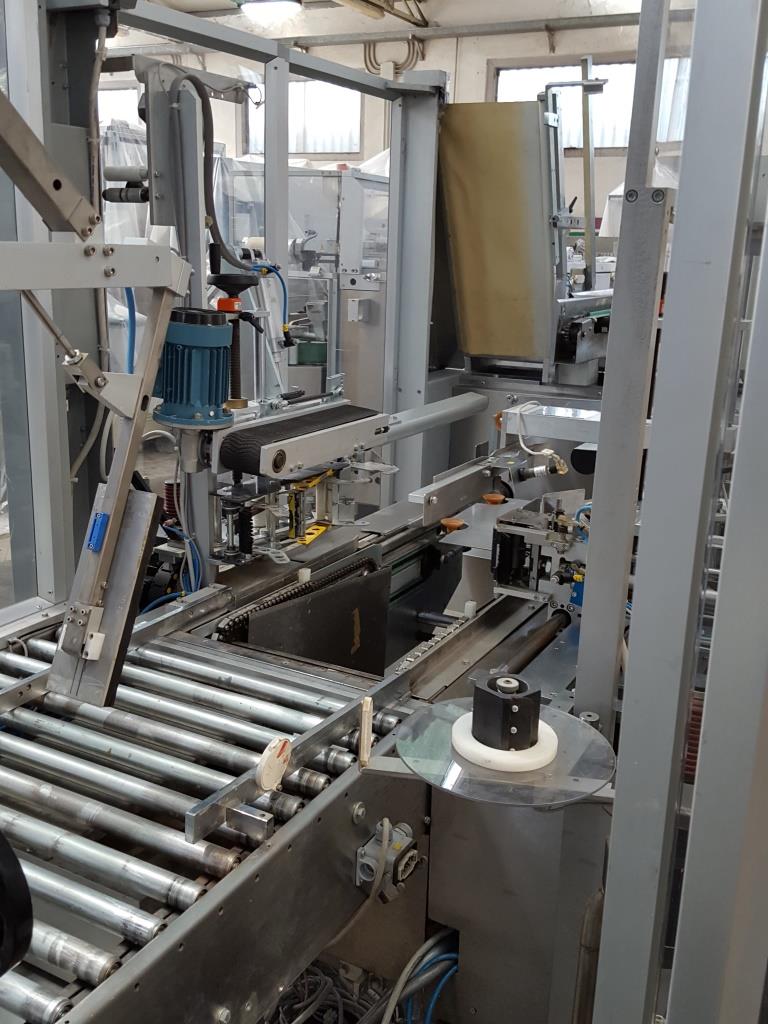

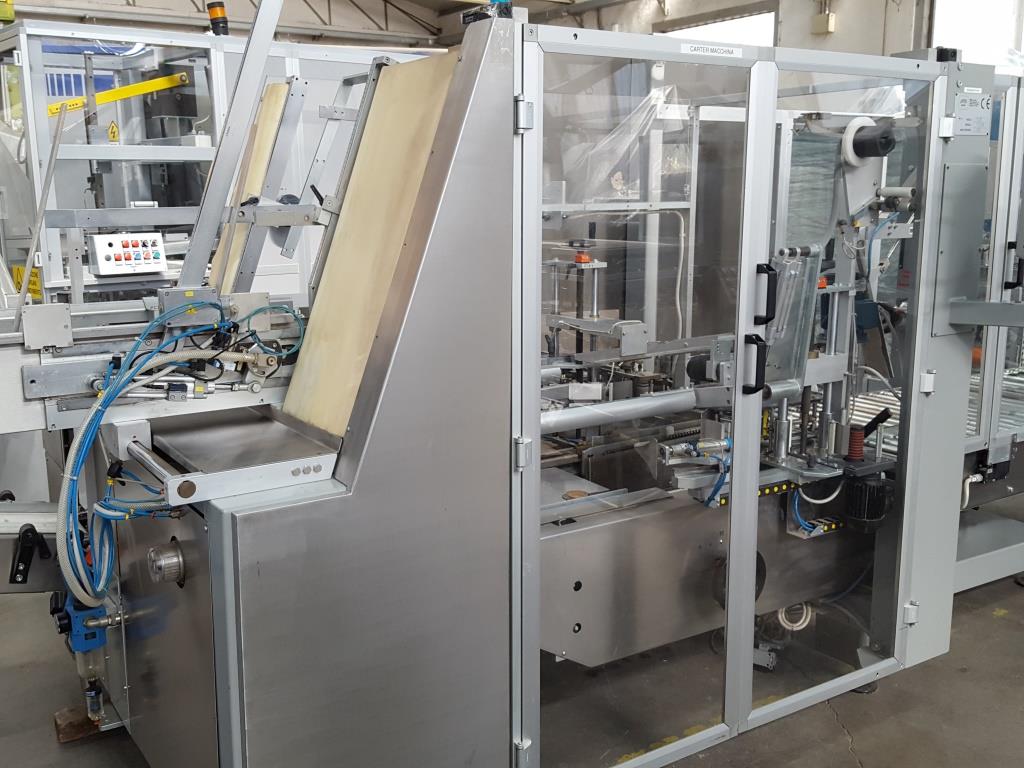

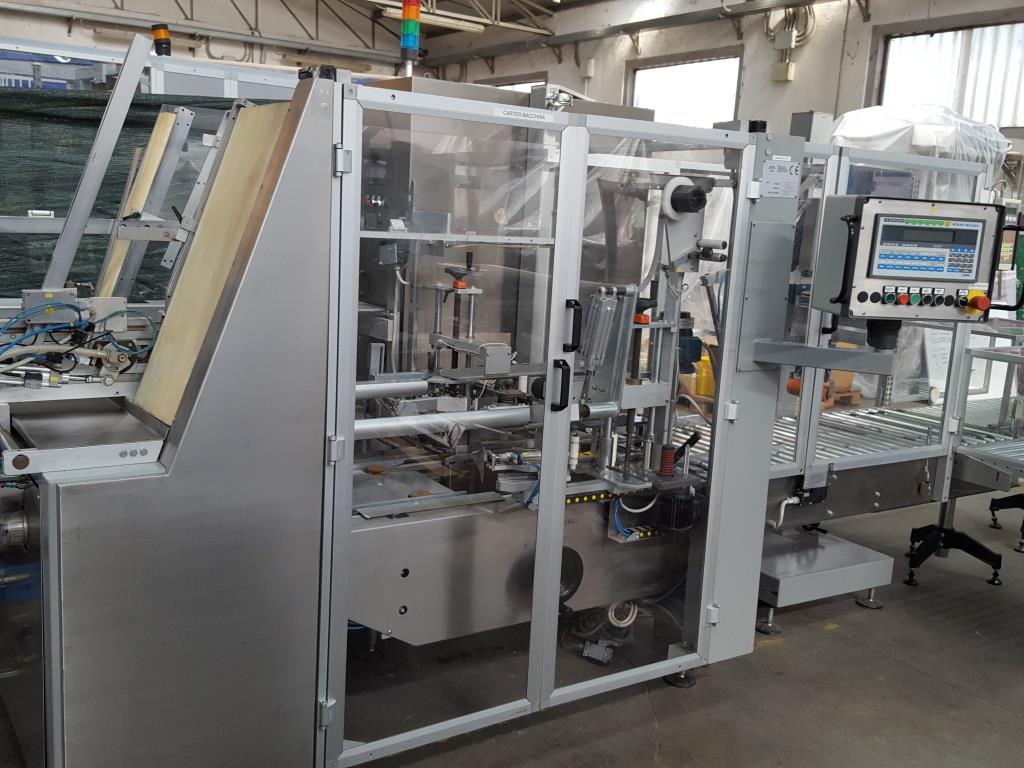

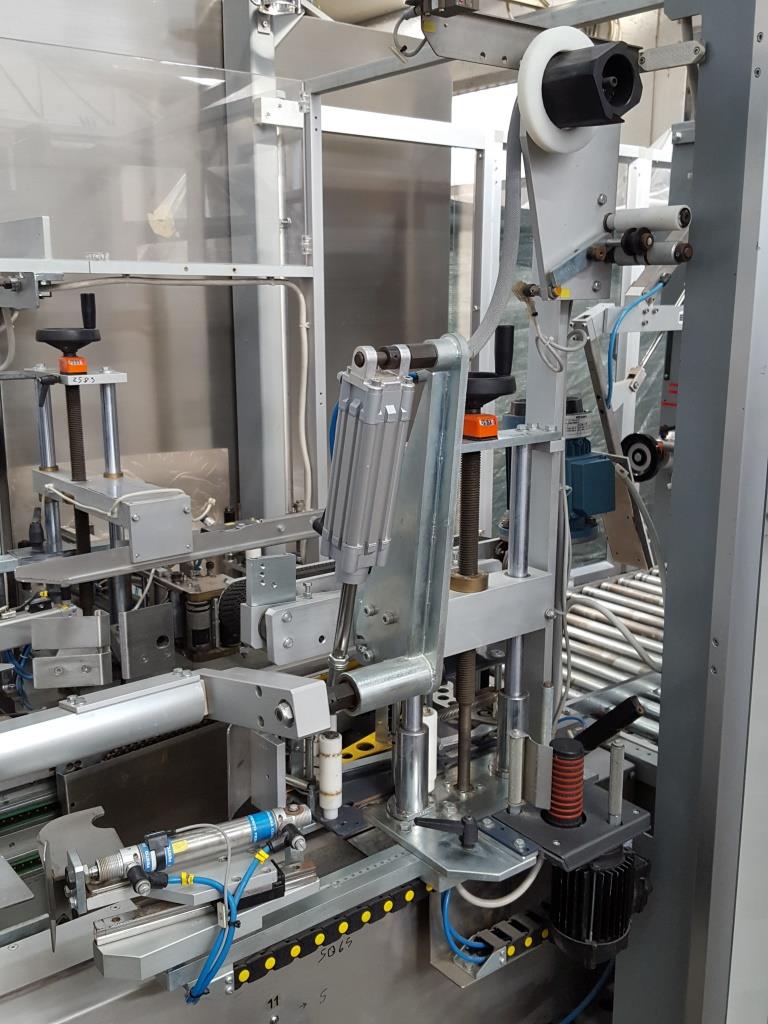

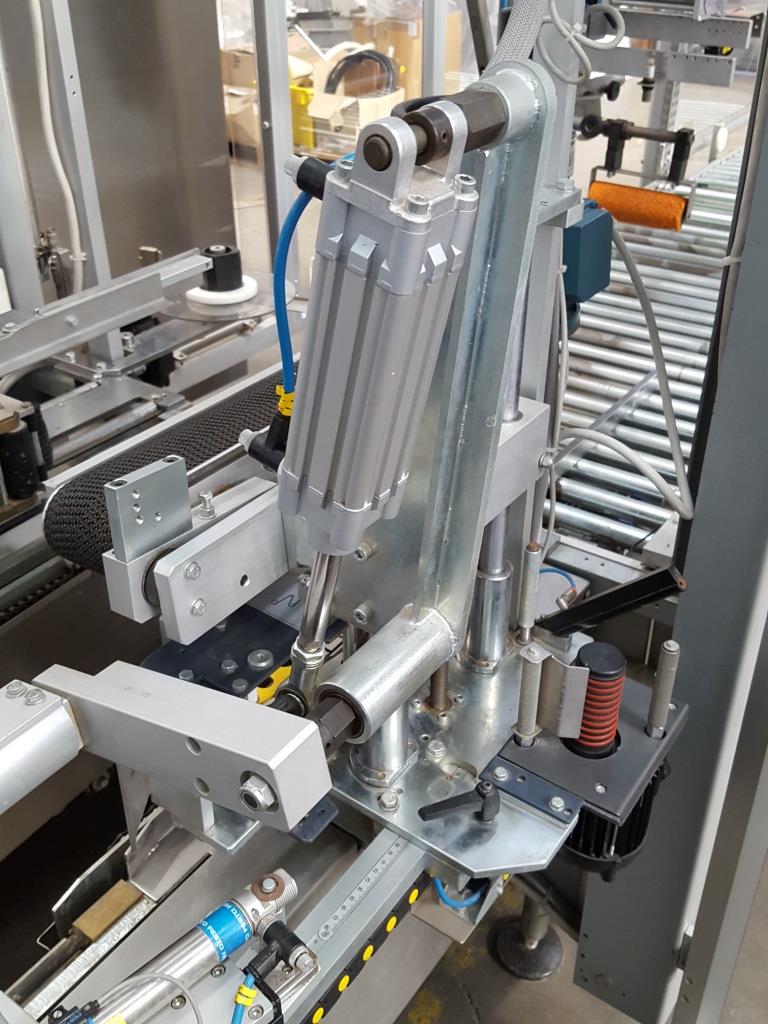

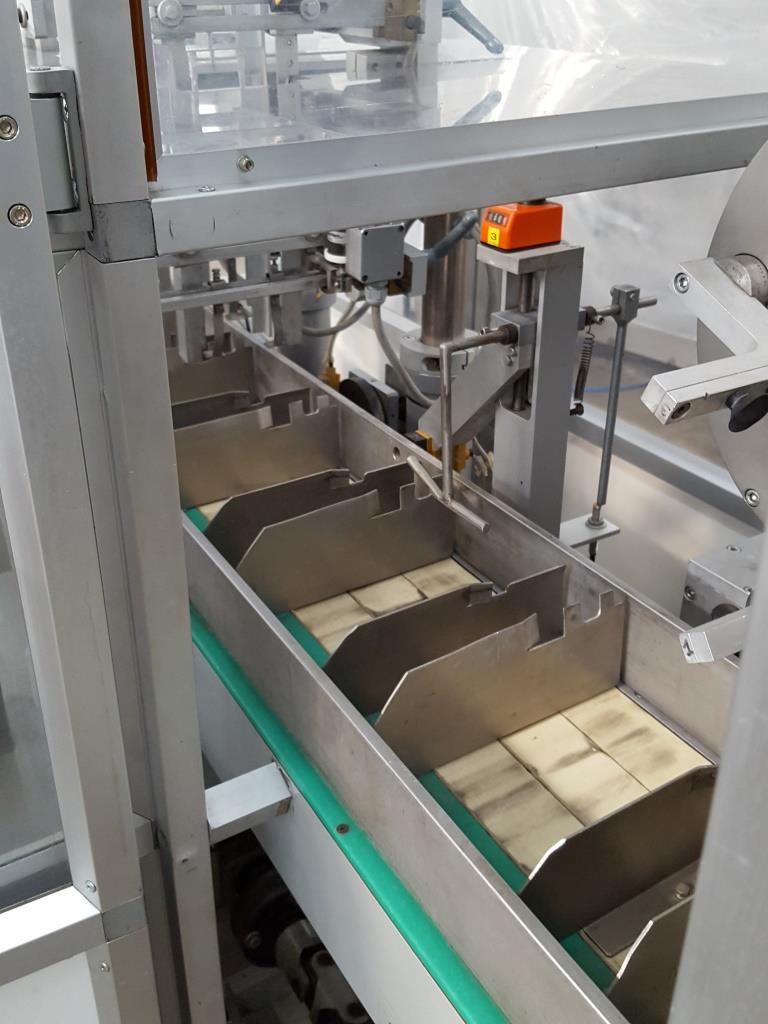

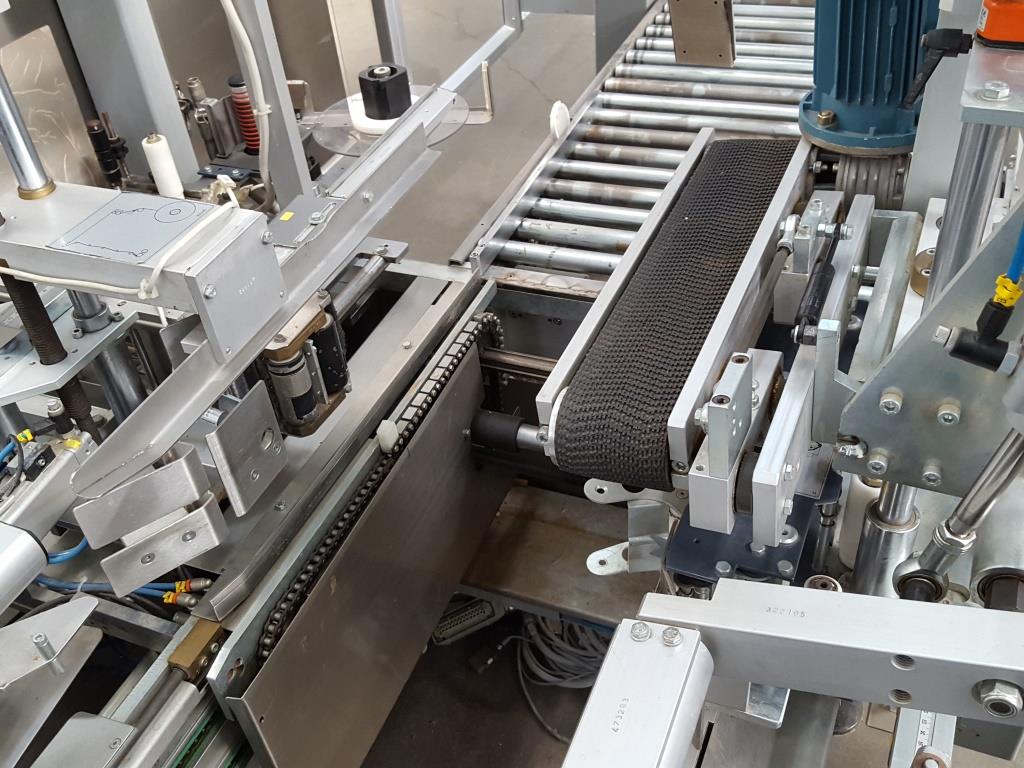

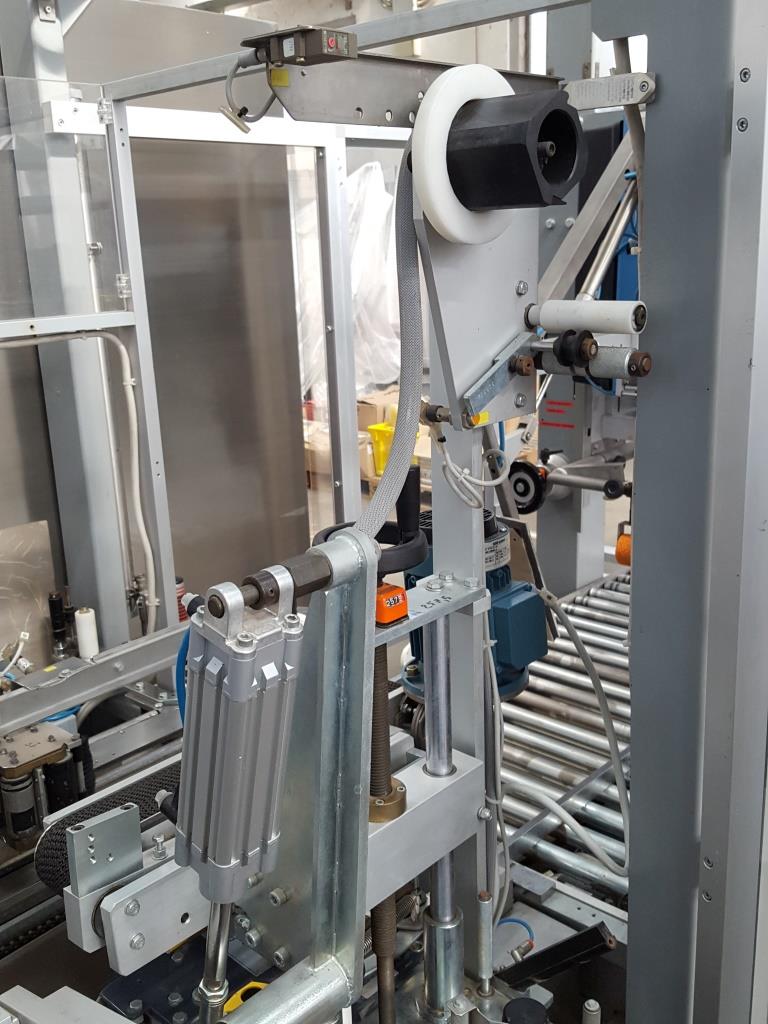

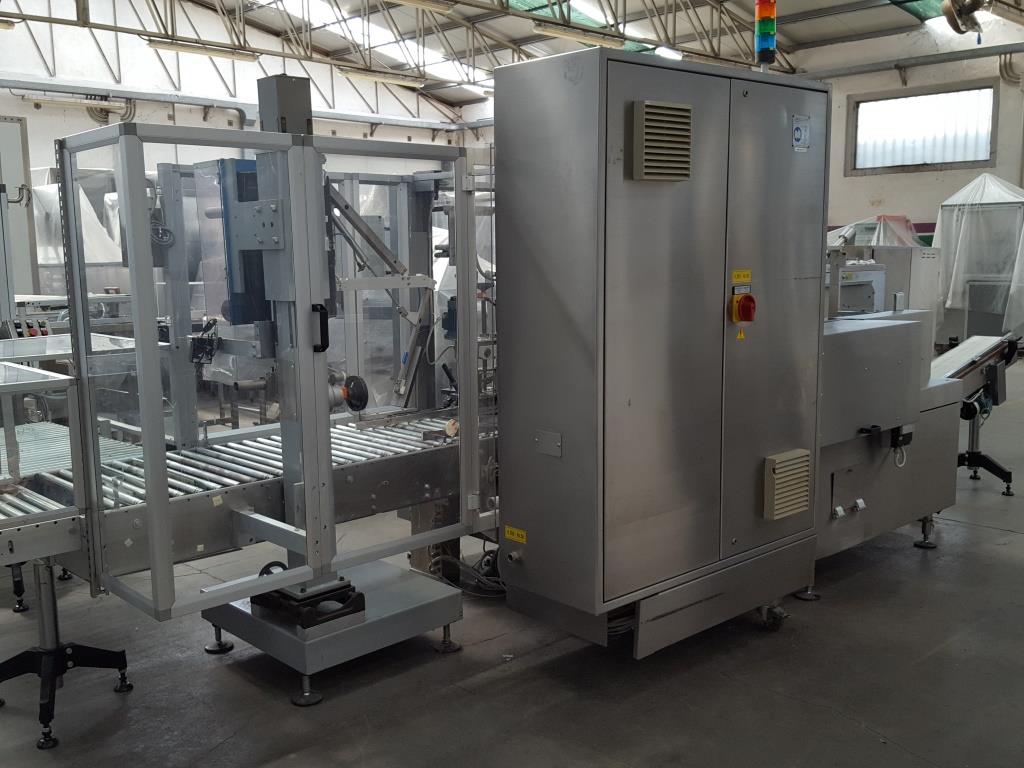

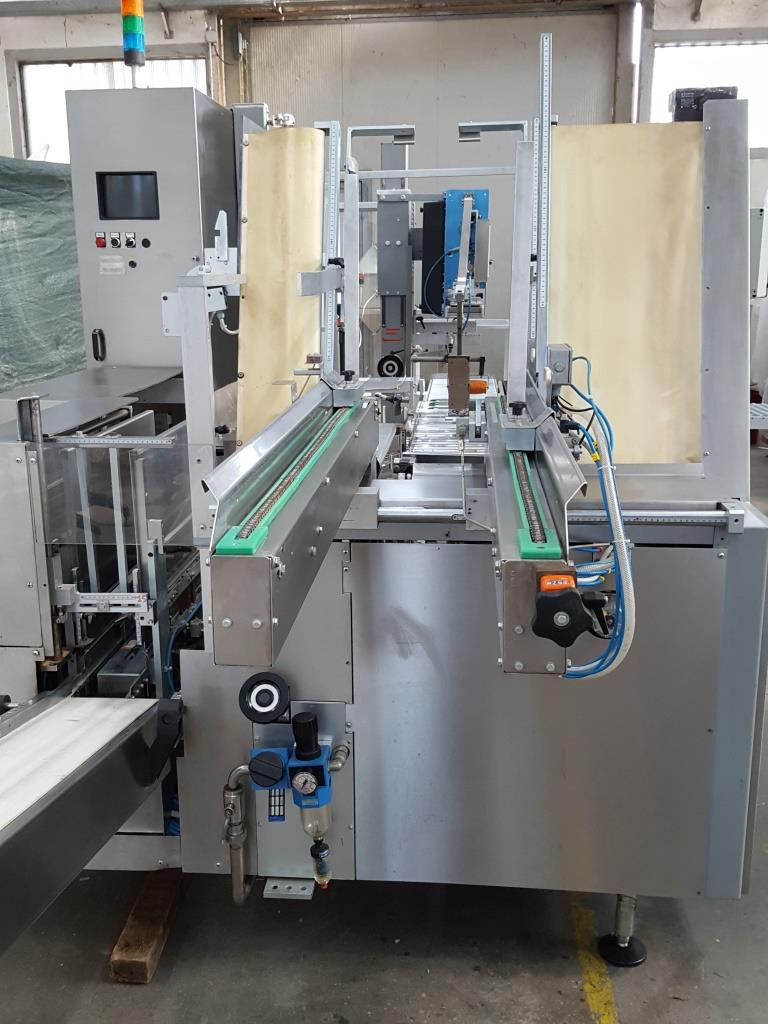

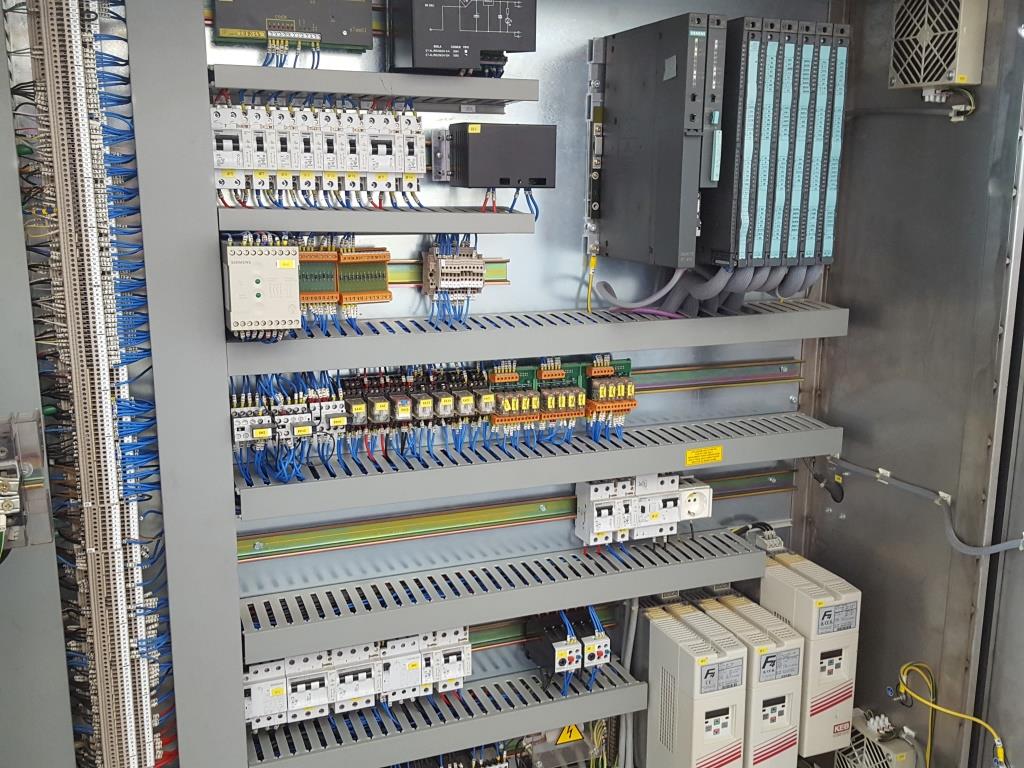

Case packer – The electrical system, noise and safety protection are conform to European standards. Carton closing by tape and / or application of hot melt glue or vinyl. Horizontal cartons magazine facilitates loading. Pick-up arms and forced opening with suction cups ensure perfect squaring of the carton during filling. The product is stacked and introduced into the open carton. The machine proceeds to the closure of the flaps of the carton and according to the configuration to the closure of the carton.
Year of construction: 1999
TECHNICAL DATA CARTONER
Length mm 4690
Width mm 1558
Height mm 2172
Weight ca. kg 3600
Frequency Hz 50
Voltage Volt 380
Pressione bar 6
Cartons per minute 240
Phases 3
Carton length mm 30-150
Carton width mm 12-85
Carton height mm 55-210
Formats installed mm 87x75x127 ; 87x50x127
TECHNICAL DATA CASE PACKER
Length mm 6400
Width mm 1735
Height mm 1800
Net weight Kg 1500
Electric Frequency Hz 50
Voltage Volt 380
Compressed air bar 6
Speed: cases/minute up to 20
Case format min mm 215 X 120 X 95
Case format max mm 500 X 350 X 350
Fasi 3
